Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the A/C refrigerant pressure sensor electrical connector.

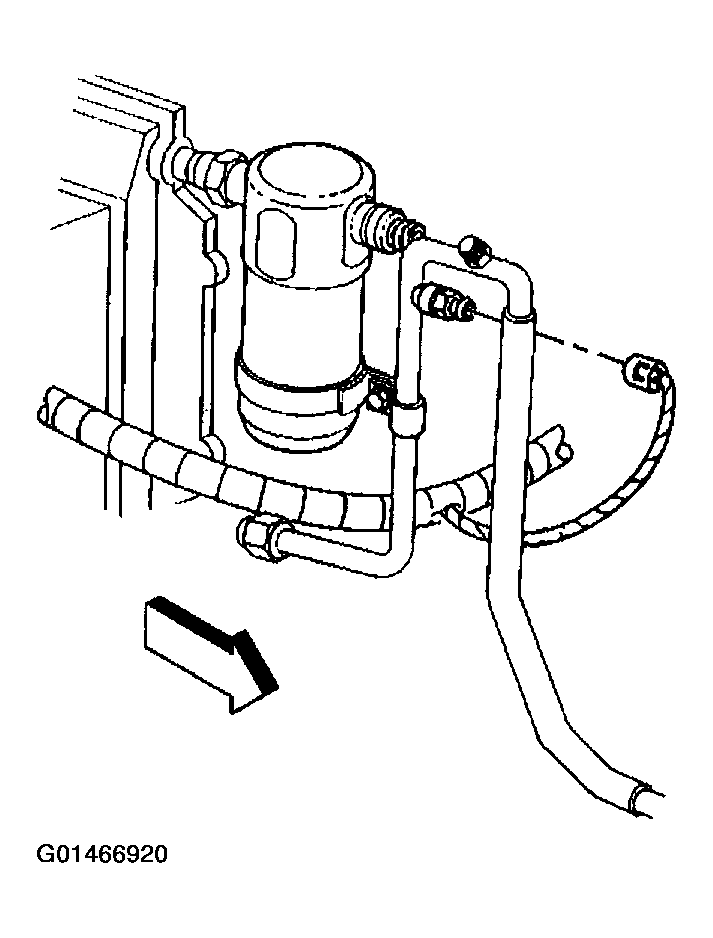

    Fig 1: Disconnecting A/C Refrigerant Pressure Sensor Electrical Connector
    G01466920Courtesy of GENERAL MOTORS CORP.
  2. Remove the A/C refrigerant pressure sensor from the evaporator tube.
  3. Remove and discard the O-ring seal from the A/C refrigerant pressure sensor port on the evaporator tube.

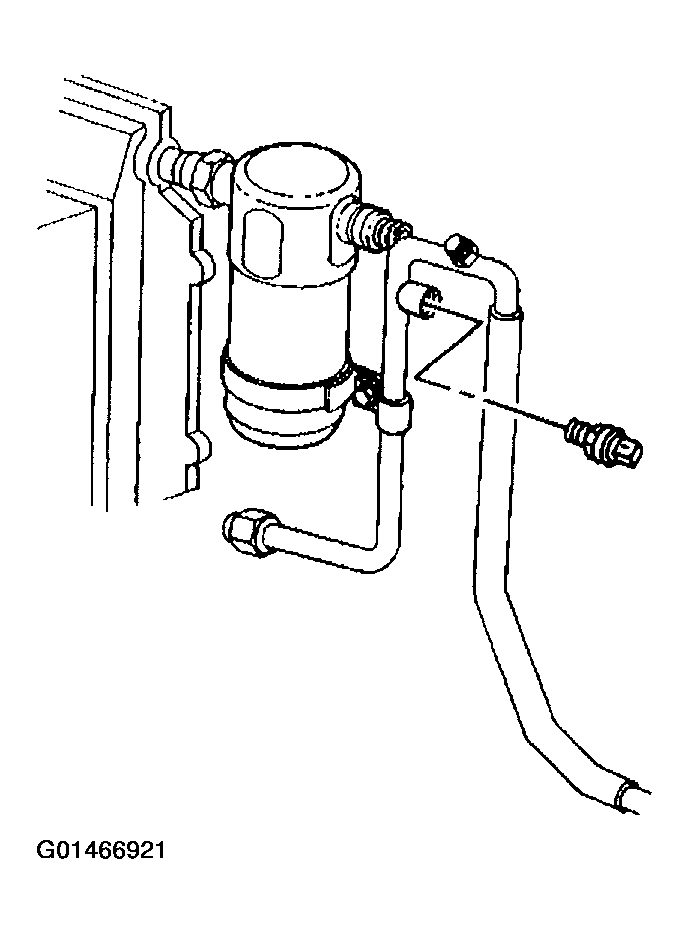

    Fig 2: Removing A/C Refrigerant Pressure Sensor From Evaporator Tube
    G01466921Courtesy of GENERAL MOTORS CORP.
