Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the drive belt idler pulley and bolt to the generator mounting bracket.

    Tighten

    Tighten the bolt to 50 N.m (37 lb ft).

  2. Install the drive belt. Refer to Drive Belt Replacement   .

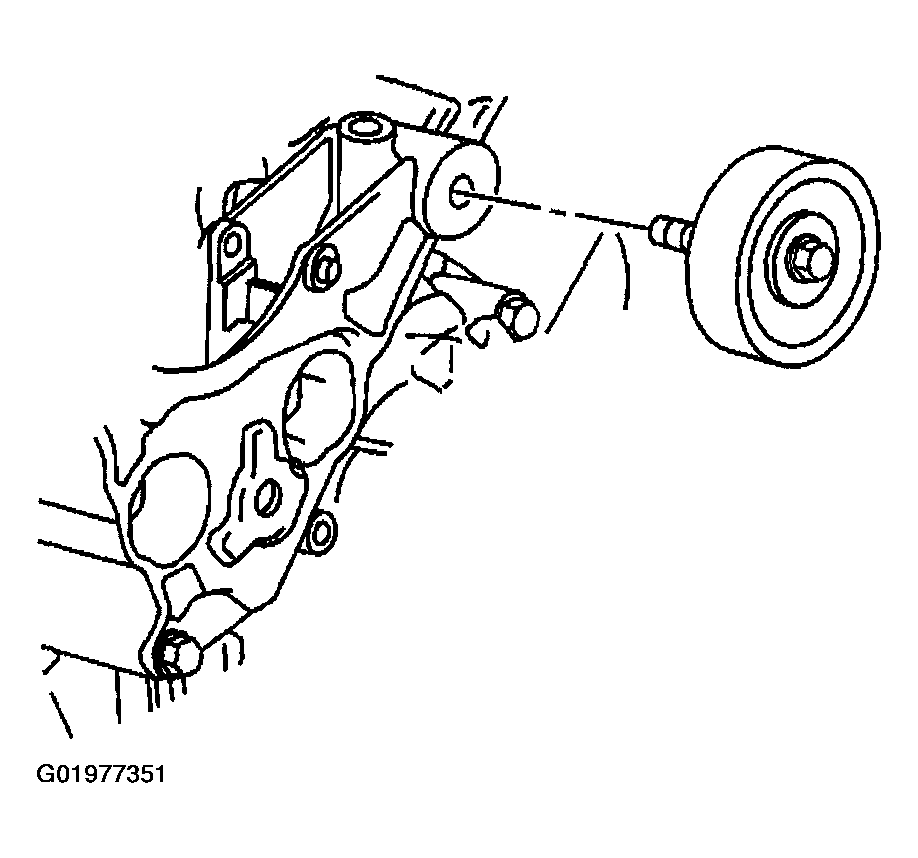

    Fig 1: Drive Belt Idler Pulley
    G01977351Courtesy of GENERAL MOTORS CORP.
