Valve Rocker Arm Cover Removal - Right

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arm cover bolts.
  2. Remove the valve rocker arm cover bolt grommets.
  3. Discard the valve rocker arm cover bolt grommets.

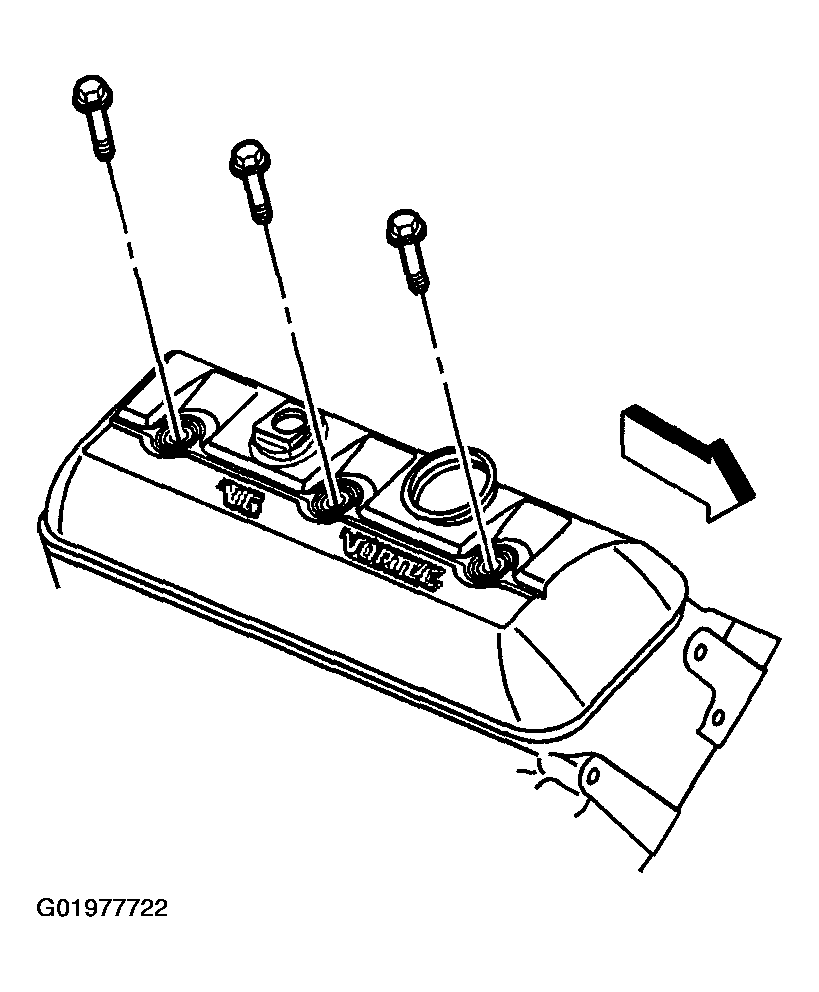

    Fig 1: Identifying Valve Rocker Arm Cover Bolts
    G01977722Courtesy of GENERAL MOTORS CORP.
  4. Remove the valve rocker arm cover.

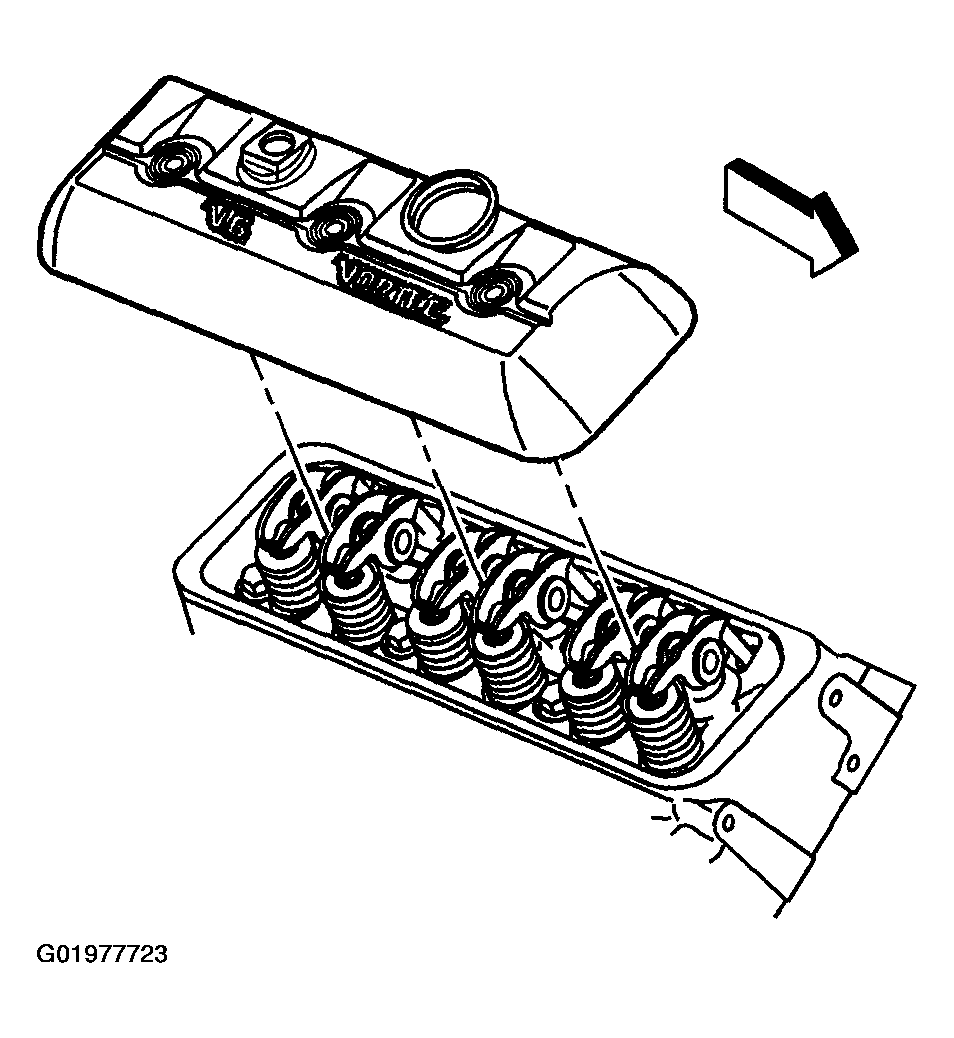

    Fig 2: Removing Valve Rocker Arm Cover
    G01977723Courtesy of GENERAL MOTORS CORP.
  5. Remove the valve rocker arm cover gasket.
  6. Discard the valve rocker arm cover gasket.

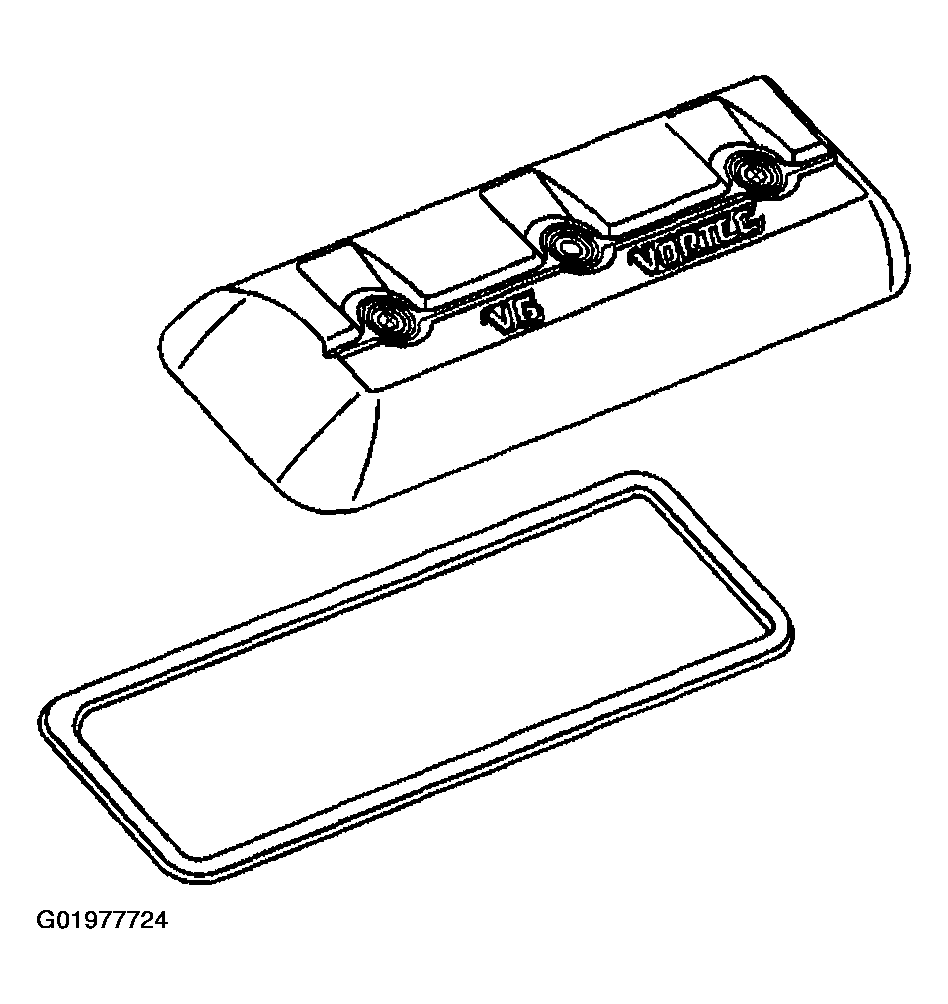

    Fig 3: Removing Valve Rocker Arm Cover Gasket
    G01977724Courtesy of GENERAL MOTORS CORP.
