Valve Rocker Arm Cover Installation - Left

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Do not reuse the valve cover gasket or the valve rocker arm cover bolt grommets.

  1. Install the NEW valve rocker arm cover gasket into the groove of the valve rocker arm cover.
  2. Install the NEW valve rocker arm cover bolt grommets into the valve rocker arm cover.

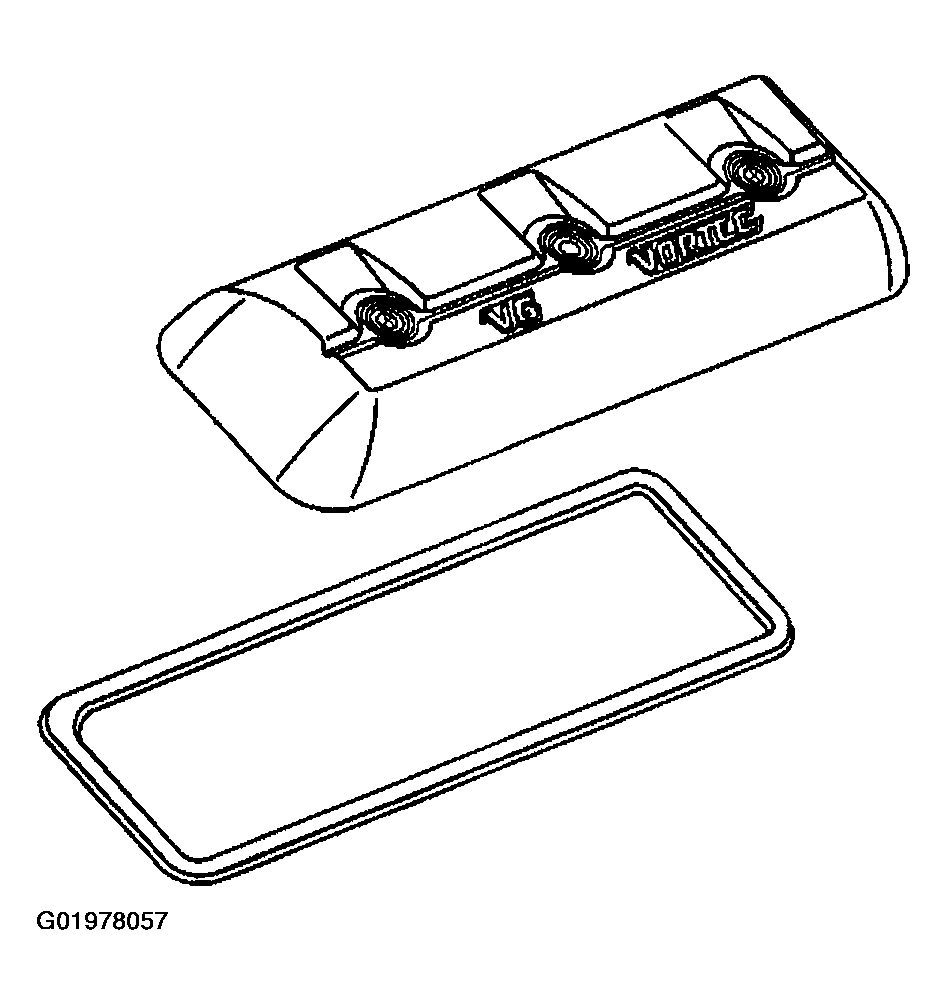

    Fig 1: Installing Valve Rocker Arm Cover Gasket & Bolt Grommets
    G01978057Courtesy of GENERAL MOTORS CORP.
  3. Install the valve rocker arm cover onto the cylinder head.

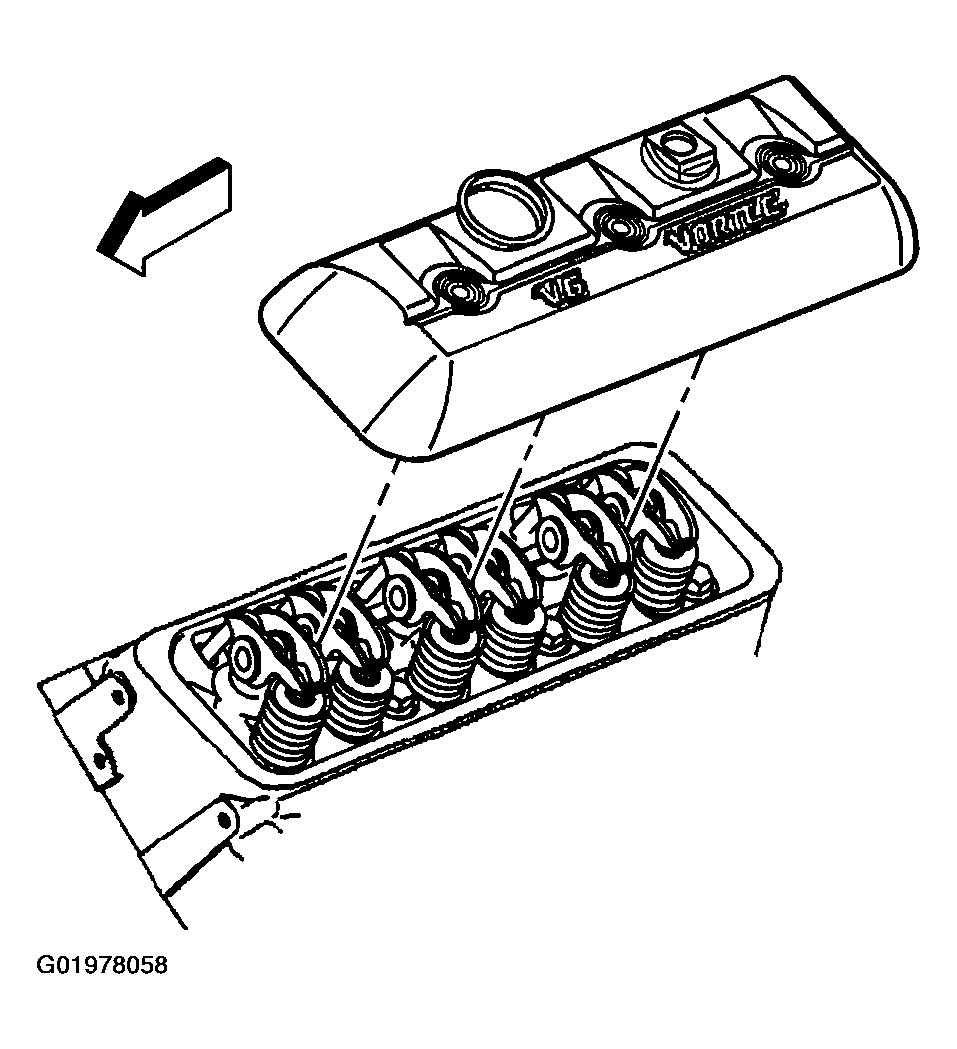

    Fig 2: Installing Valve Rocker Arm Cover
    G01978058Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the valve rocker arm cover bolts.

    Tighten

    Tighten the valve rocker arm cover bolts to 12 N.m (106 lb in).

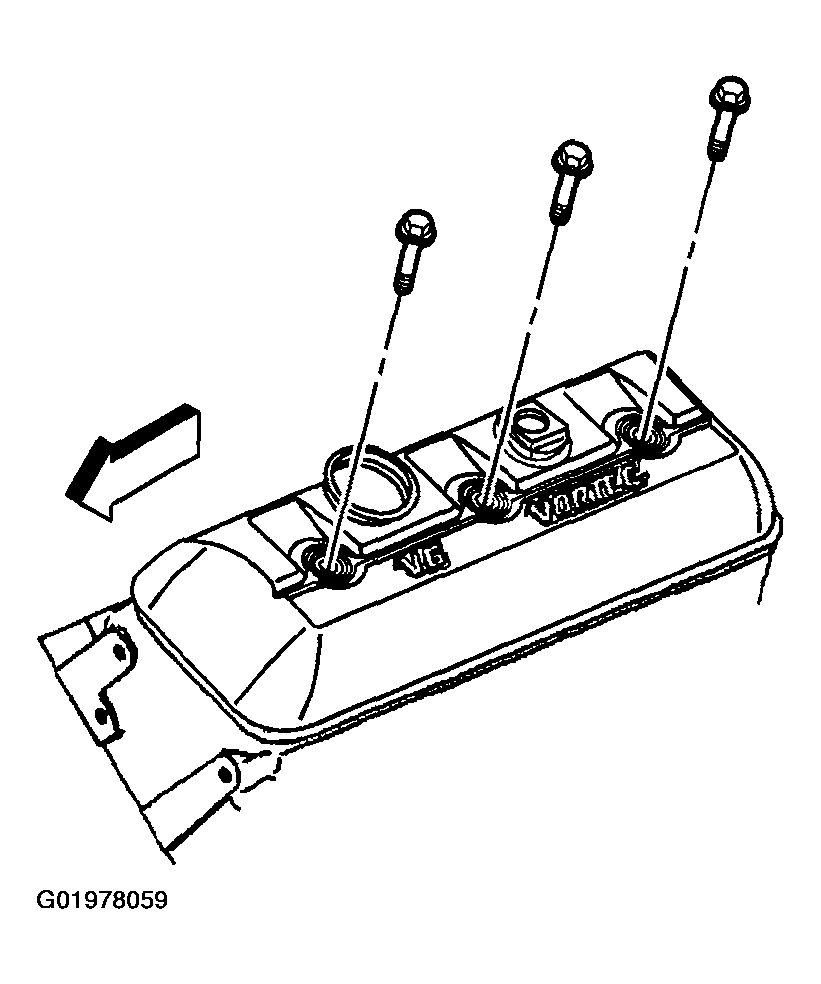

    Fig 3: Installing Valve Rocker Arm Cover Bolts
    G01978059Courtesy of GENERAL MOTORS CORP.
