Engine Flywheel Removal

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine flywheel bolts.
  2. Remove the engine flywheel (1), automatic transmission, if applicable.
  3. Remove the engine flywheel (2), manual transmission, if applicable.

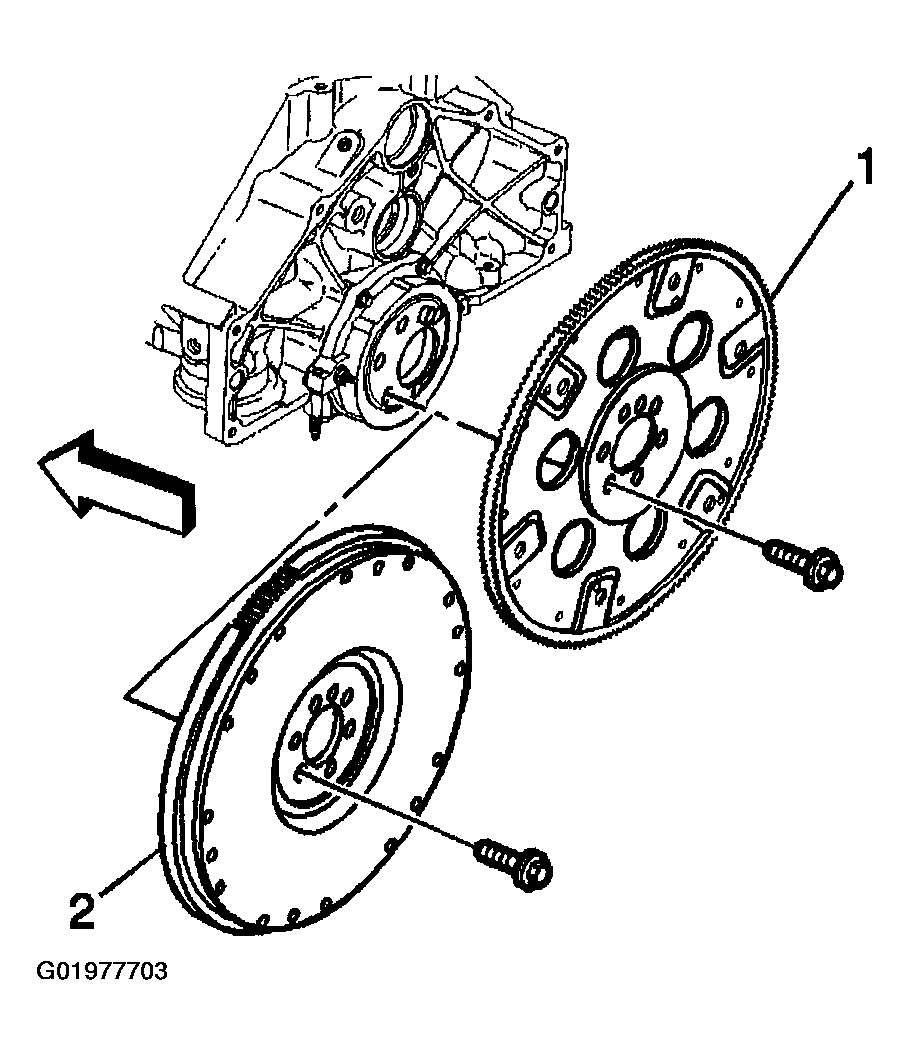

    Fig 1: View of Automatic and Manual Transmission Engine Flywheels
    G01977703Courtesy of GENERAL MOTORS CORP.

    Important:  If replacing the engine flywheel, manual transmission, NEW flywheel weights must be installed into the NEW engine flywheel in the same location as the old flywheel weights in the old engine flywheel.

  4. Note the position of any flywheel weights for assembly, if applicable.

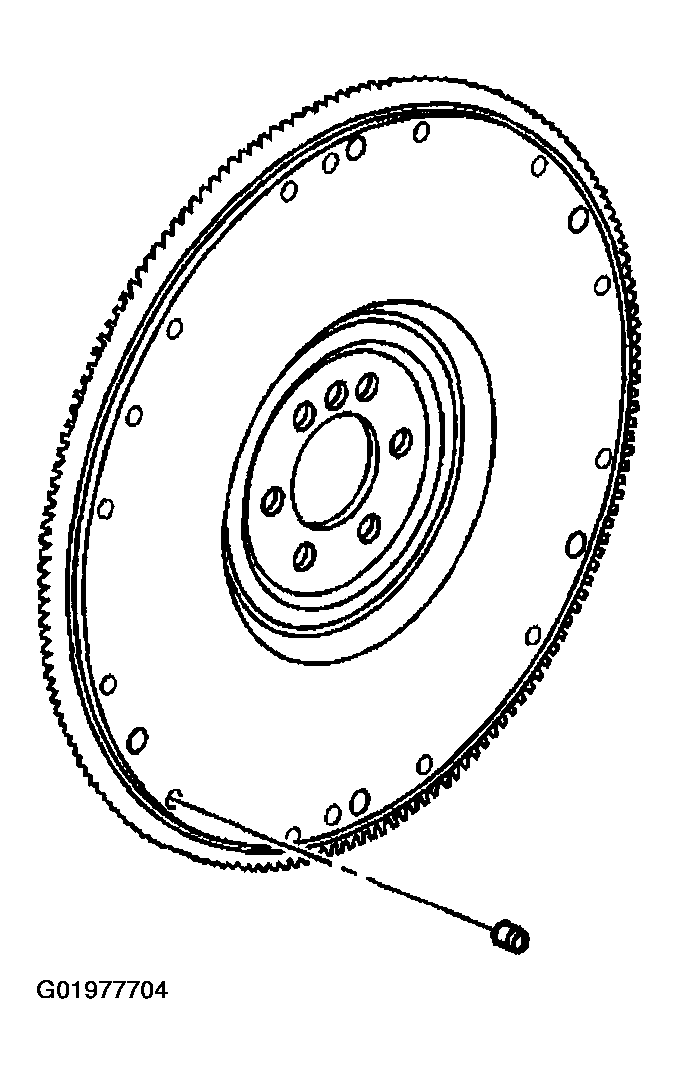

    Fig 2: Locating Flywheel Weights
    G01977704Courtesy of GENERAL MOTORS CORP.
