Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine from the vehicle. Refer to ENGINE REPLACEMENT  .
  2. Install the engine on a suitable engine stand.
  3. Remove the oil pan bolts.

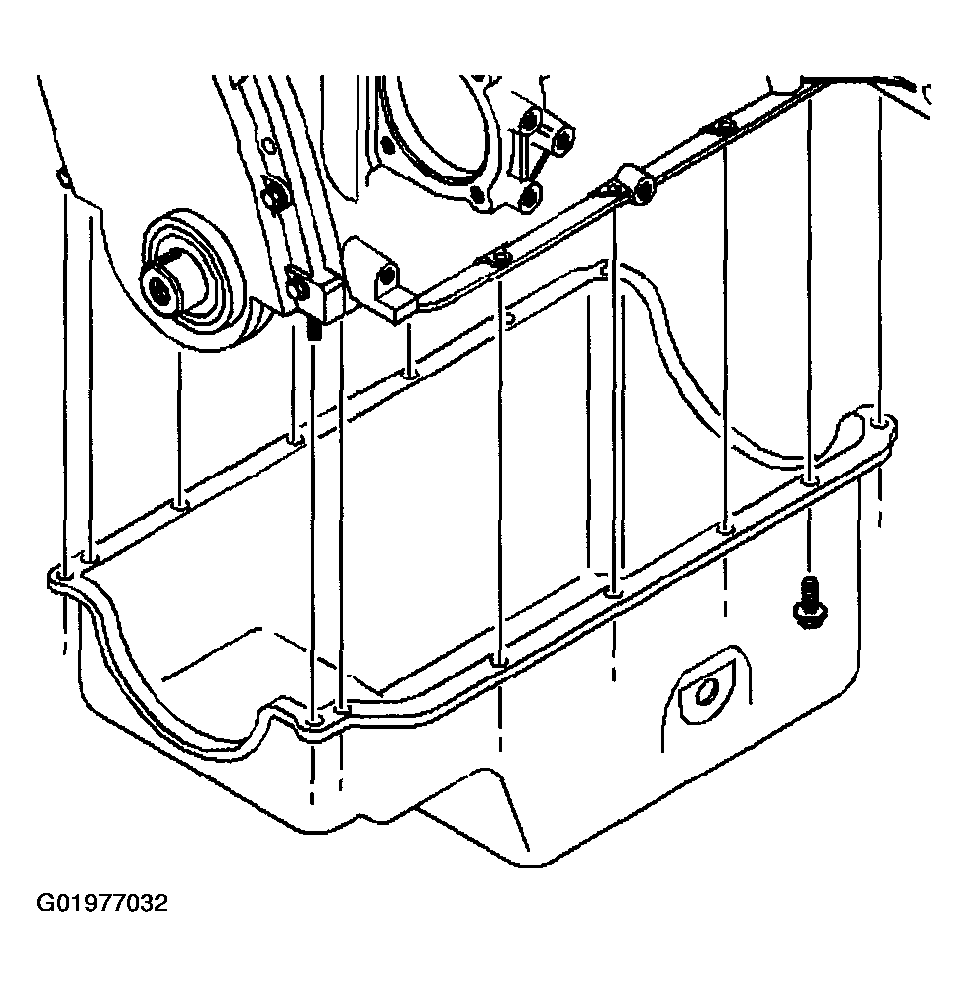

    Fig 1: Removing Oil Pan Bolts
    G01977032Courtesy of GENERAL MOTORS CORP.
  4. Remove the oil pan nuts.

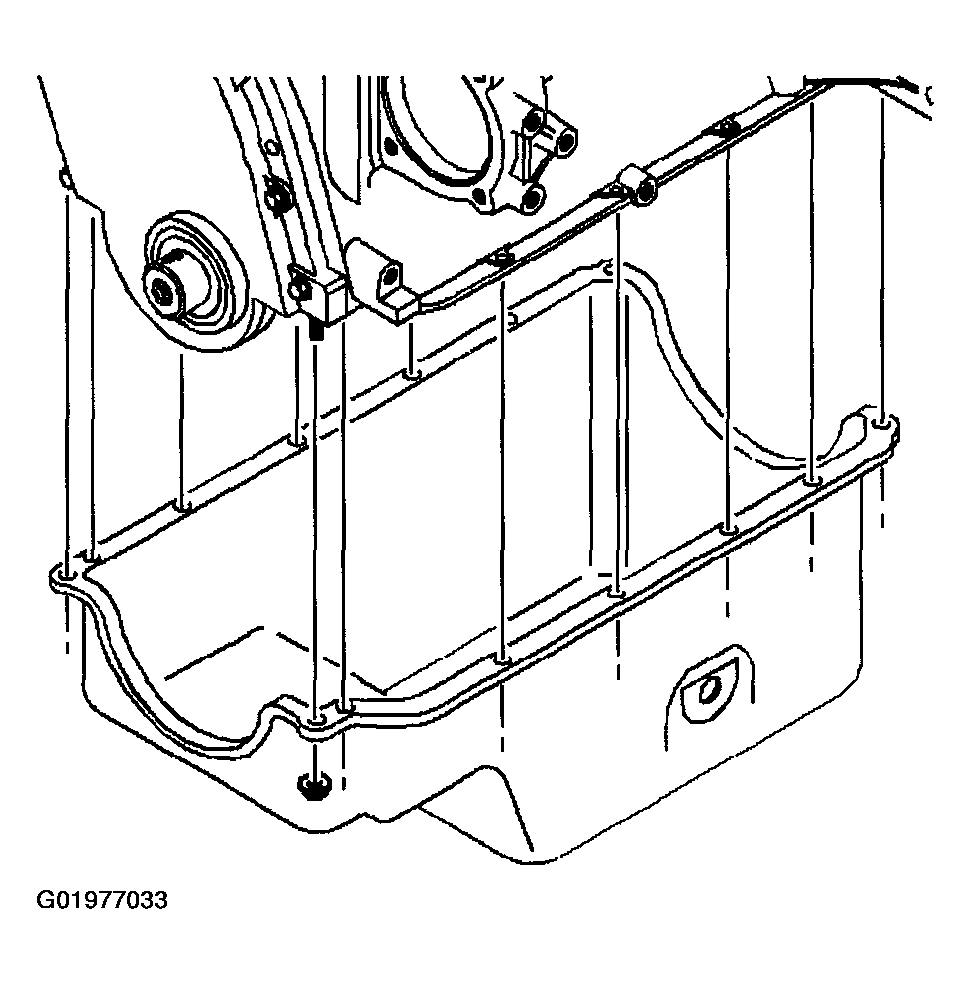

    Fig 2: Removing Oil Pan Nuts
    G01977033Courtesy of GENERAL MOTORS CORP.
  5. Remove the oil pan. Use a narrow putty knife in order to separate the oil pan from the engine block.

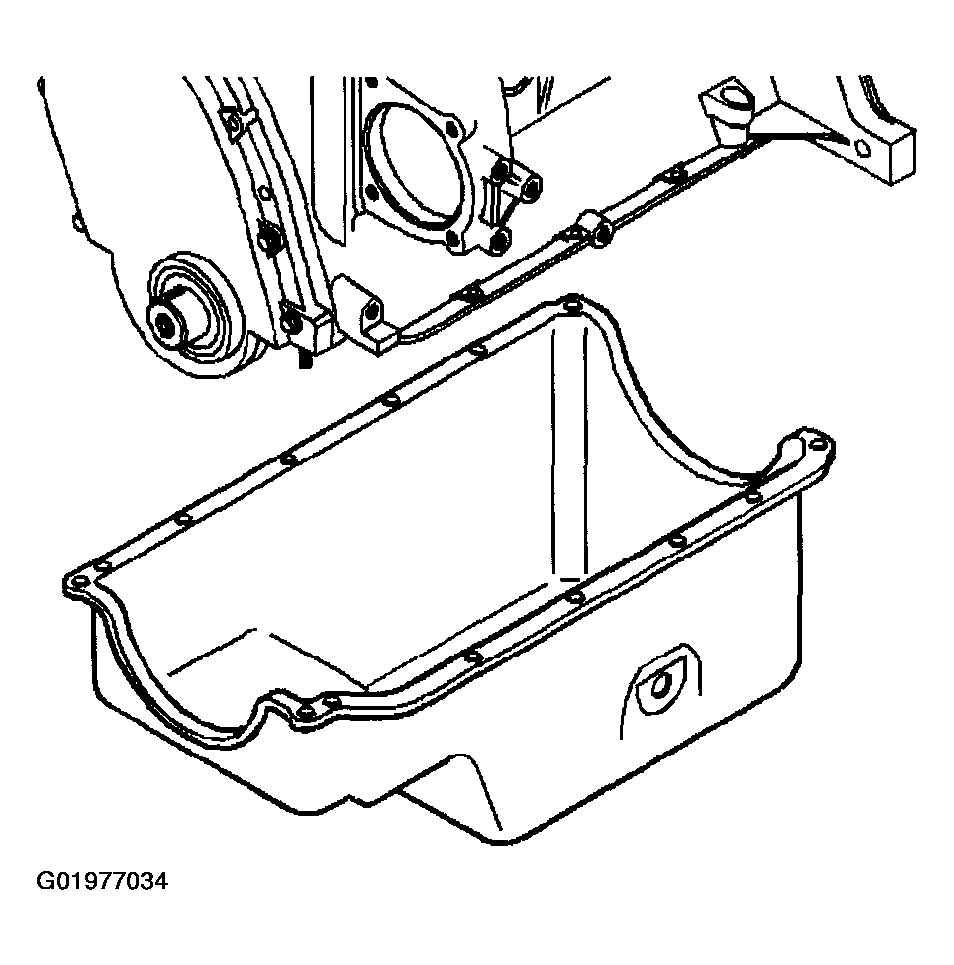

    Fig 3: Removing Oil Pan
    G01977034Courtesy of GENERAL MOTORS CORP.
  6. Remove the oil pan rear oil seal.
  7. Clean the sealing surfaces and the oil pan. Refer to OIL PAN CLEANING AND INSPECTION  .

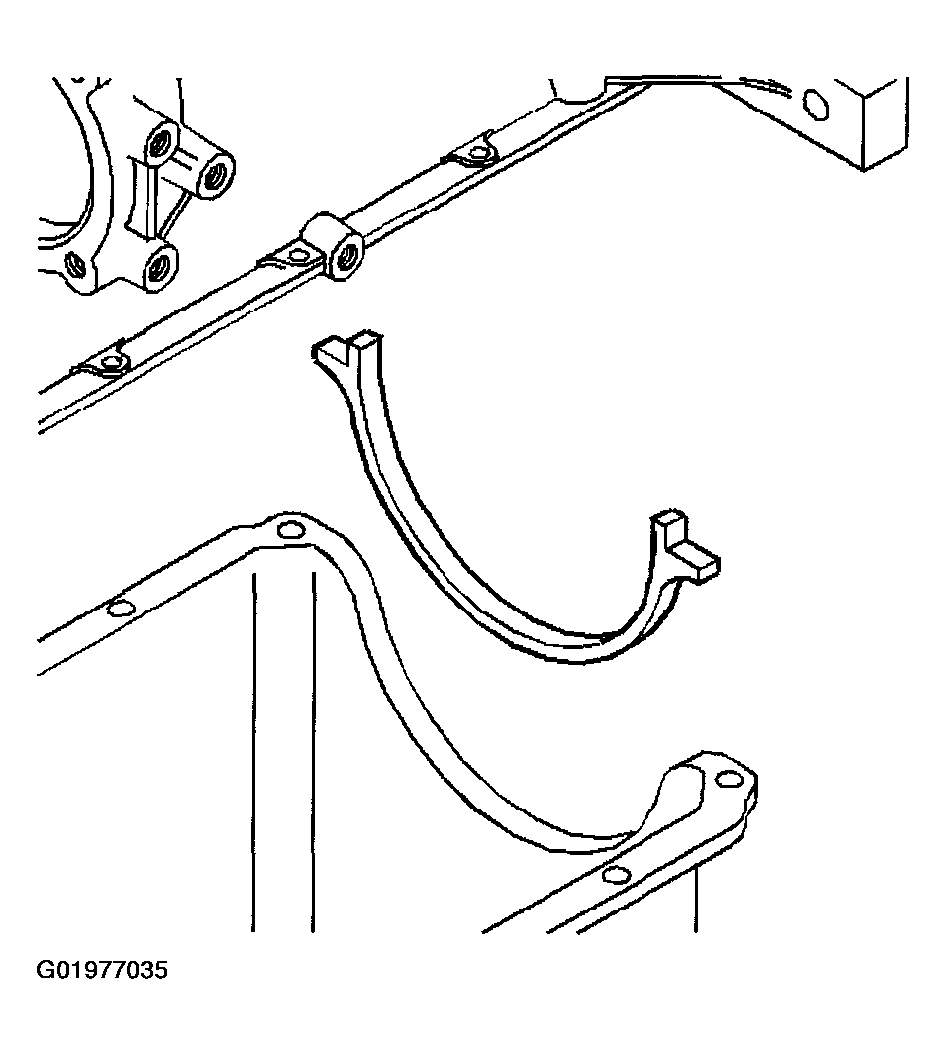

    Fig 4: Removing Oil Pan Rear Oil Seal
    G01977035Courtesy of GENERAL MOTORS CORP.
