Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Allowing the drive belt tensioner to snap into the free position may result in damage to the tensioner.
  1. From under the vehicle, remove the drive belt.

    Refer to DRIVE BELT REPLACEMENT  .

  2. Remove the drive belt tensioner assembly bolt.
  3. Remove the drive belt tensioner assembly.

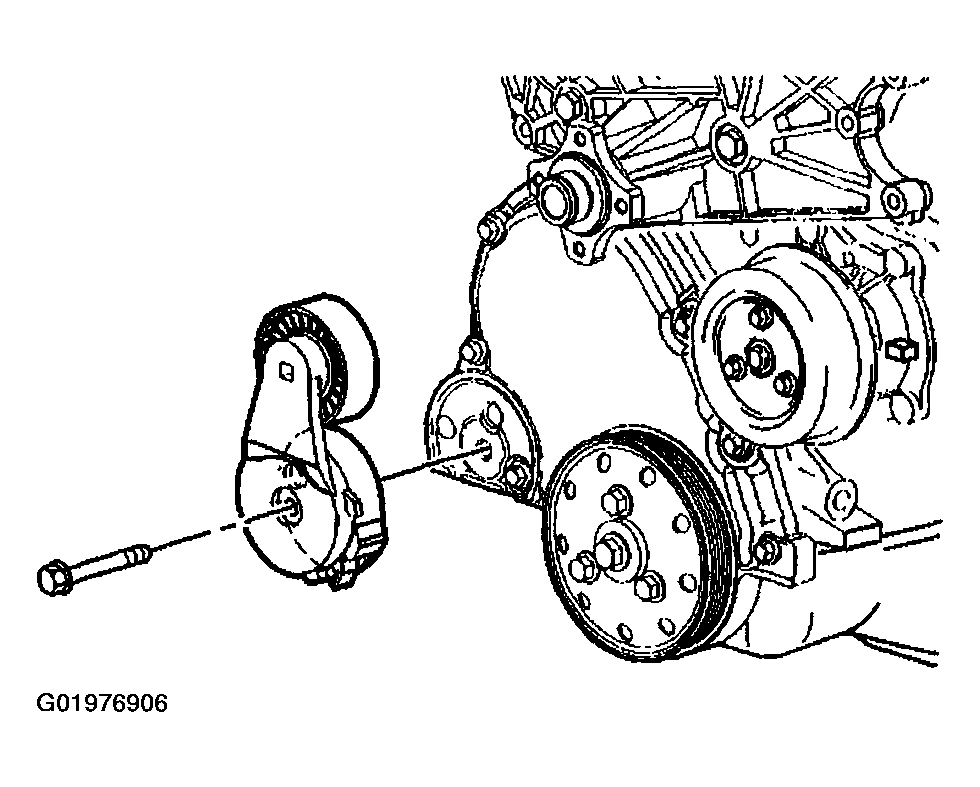

    Fig 1: Removing Drive Belt Tensioner Assembly
    G01976906Courtesy of GENERAL MOTORS CORP.
