Valve Rocker Arm and Push Rod Removal

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Be sure that valve train components are kept together and identified so that they can be installed in their original location.

  1. Remove the rocker arm assemblies.

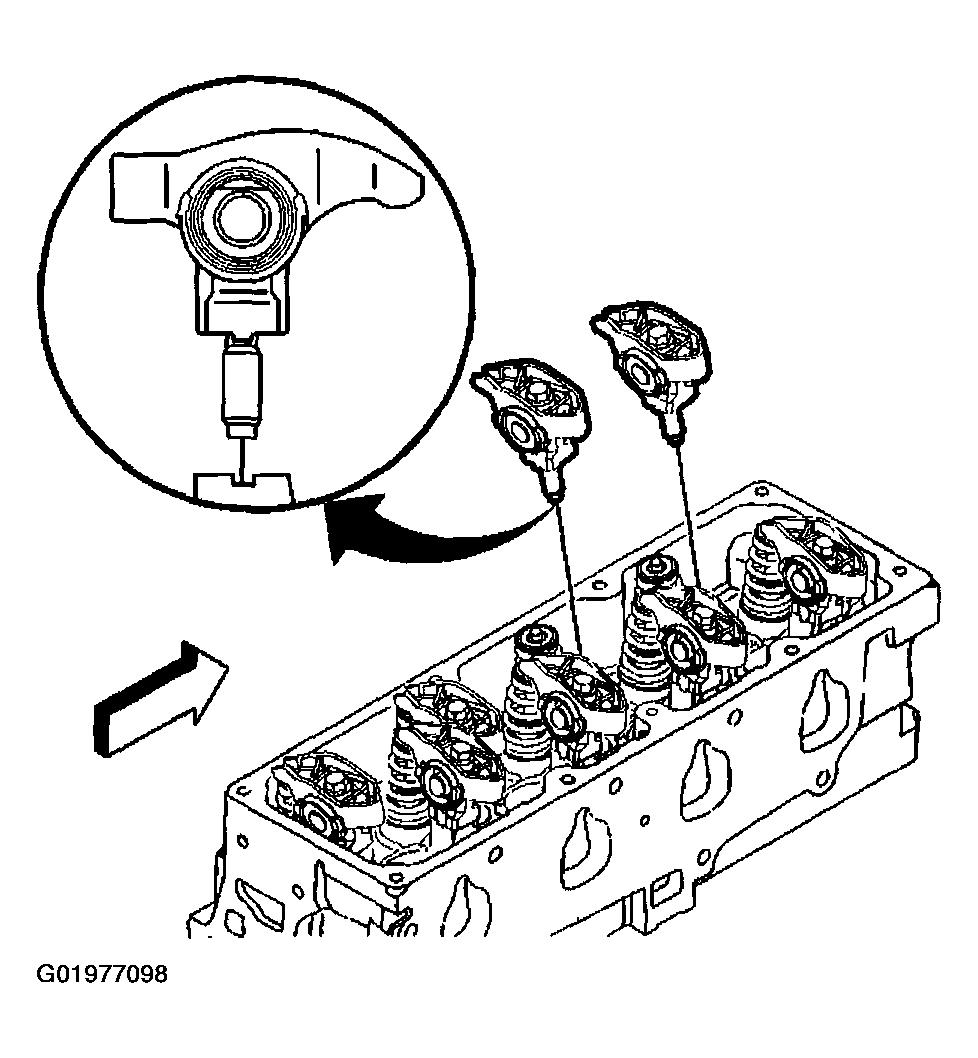

    Fig 1: Removing Rocker Arm Assemblies
    G01977098Courtesy of GENERAL MOTORS CORP.
  2. Remove the pushrods.

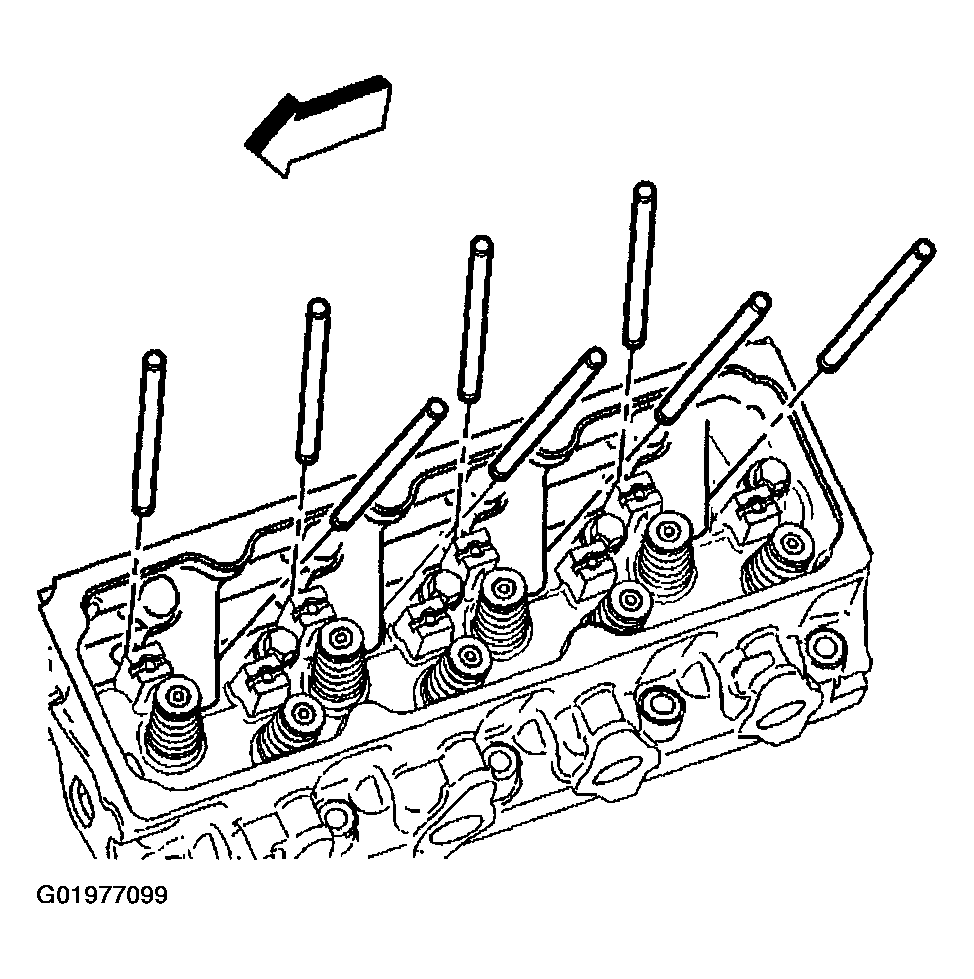

    Fig 2: Removing Pushrods
    G01977099Courtesy of GENERAL MOTORS CORP.
