Valve Rocker Arm and Push Rod Installation

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Important: When the rocker arms are installed, lubricate the pivot bearings valve tips, and push rod sockets of the rocker arms with engine assembly prelube GM P/N United States 1052367, GM P/N Canada 992869.

Lubricate the rocker arms pivot bearings valve tips and push rod sockets with GM P/N United States 1052367, GM P/N Canada 992869, or equivalent.
Install the pushrods. Ensure that the pushrods seat in the lifters.

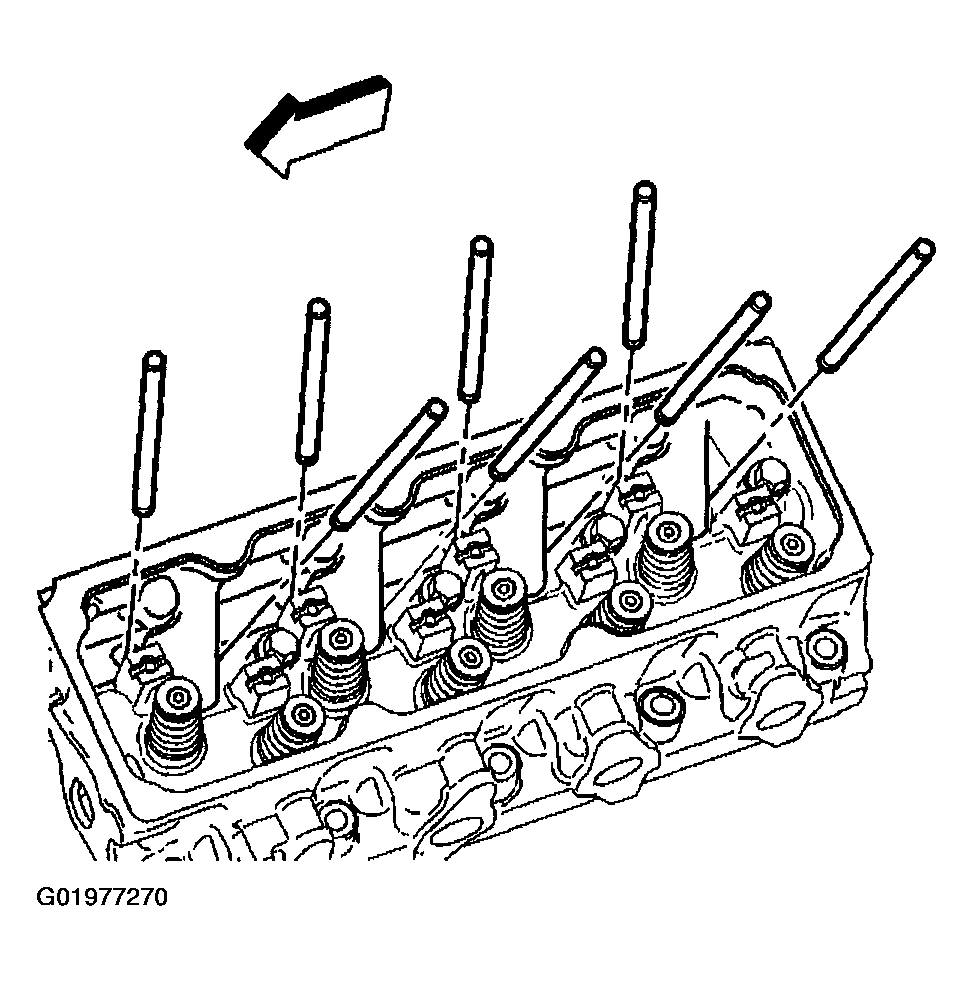

Fig 1: Installing Pushrods
Courtesy of GENERAL MOTORS CORP.
Install the rocker arms.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Important: Do not over tighten the rocker arm bolts.
Ensure that the locating tab on the rocker pivot is properly aligned with the notch in the cylinder head.
Tighten

Tighten the rocker arm bolts to 25 N.m (19 lb ft).

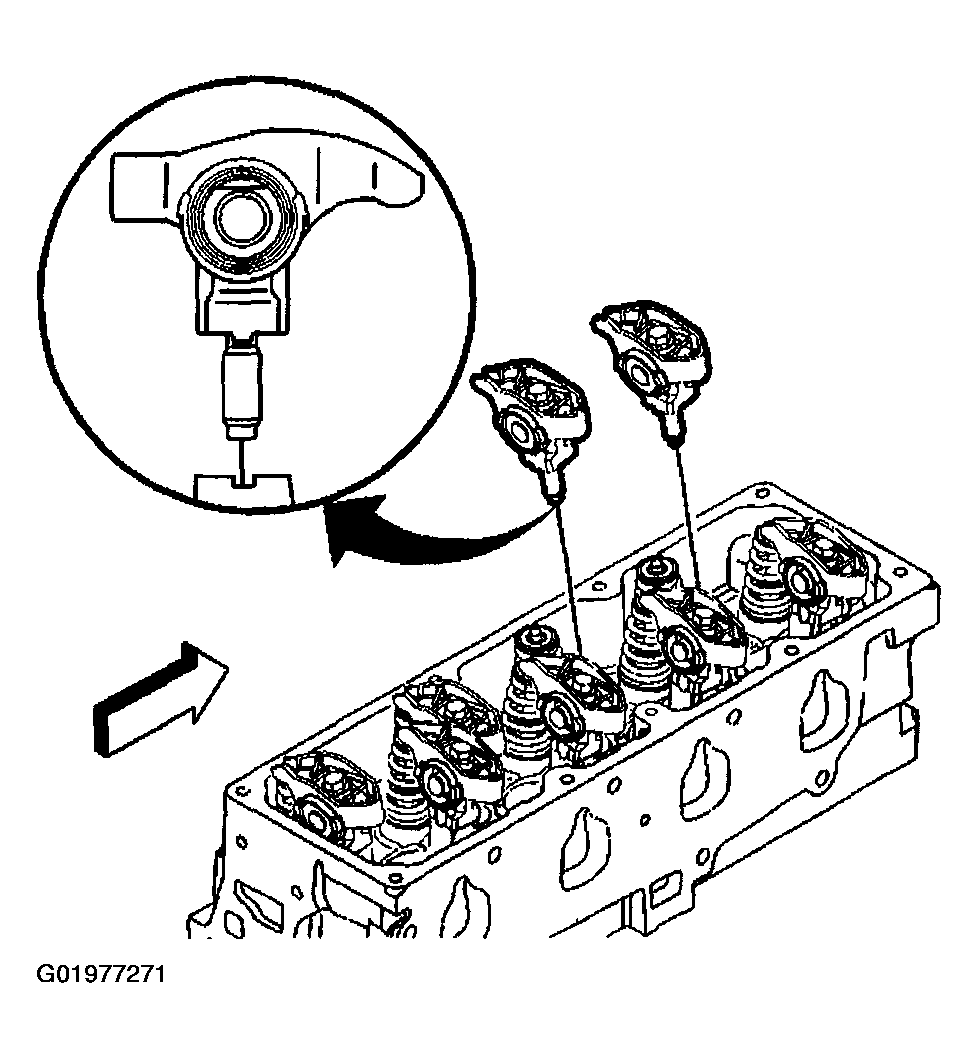

Fig 2: Installing Rocker Arms
Courtesy of GENERAL MOTORS CORP.
