Test Description

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table:

  1. Performing solenoid tests determines if there is a mechanical malfunction inside the BPMV. Perform dump valve solenoid tests for DTC C0269 or isolation valve solenoid tests for DTC C0274.

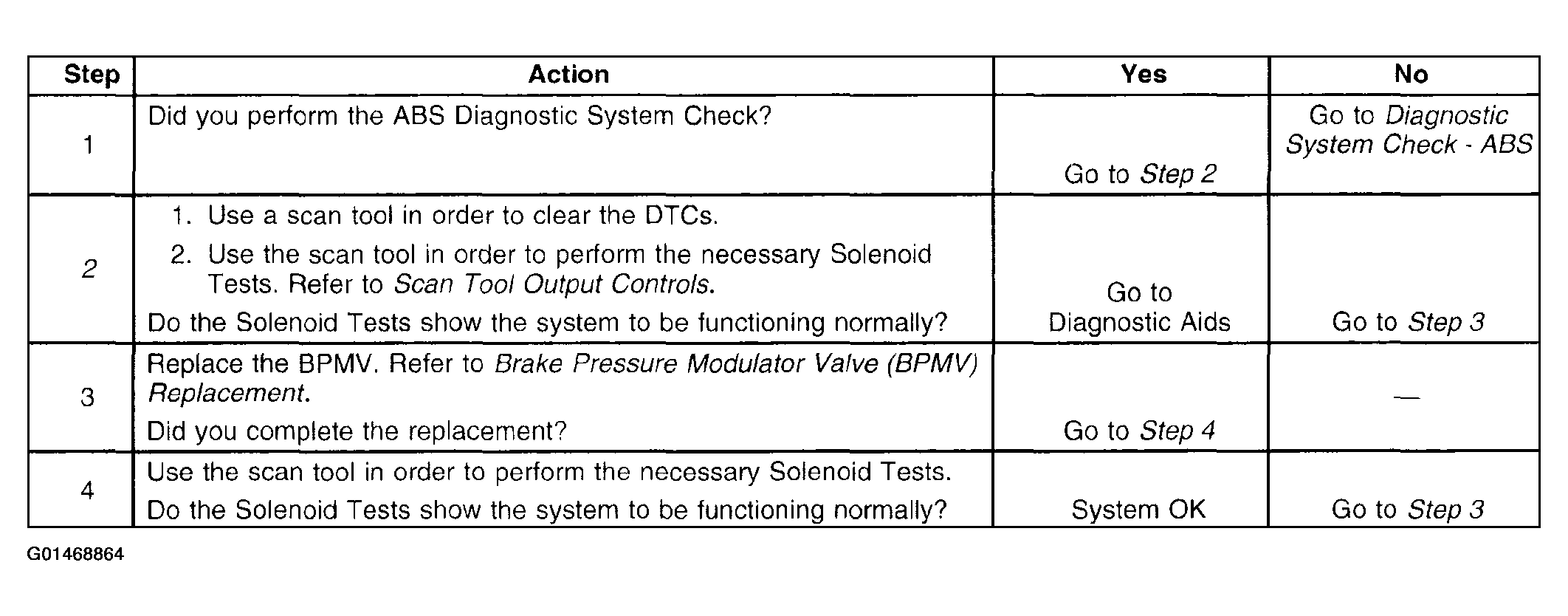

Fig 1: DTC C0269 Or C0274 - Diagnostic Procedure Table
G01468864Courtesy of GENERAL MOTORS CORP.
