Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear axle housing cover (2) and a new gasket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the rear axle housing cover bolts (1).

    Tighten

    Tighten the rear housing cover bolts in a crosswise pattern to 39 N.m (29 lb ft).

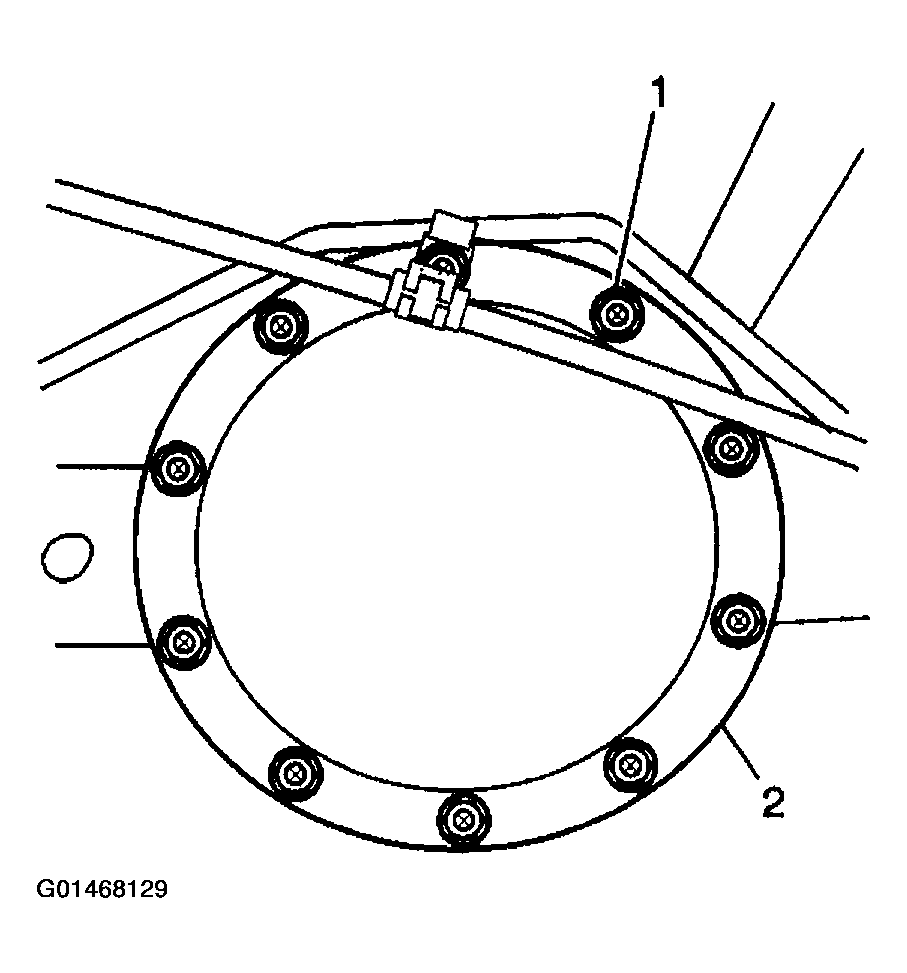

    Fig 1: Installing Rear Axle Housing Cover Bolts
    G01468129Courtesy of GENERAL MOTORS CORP.
  3. Fill the rear axle. Use the proper fluid.
  4. Lower the vehicle.
