Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the vacuum solenoid valve from the vacuum solenoid valve bracket.

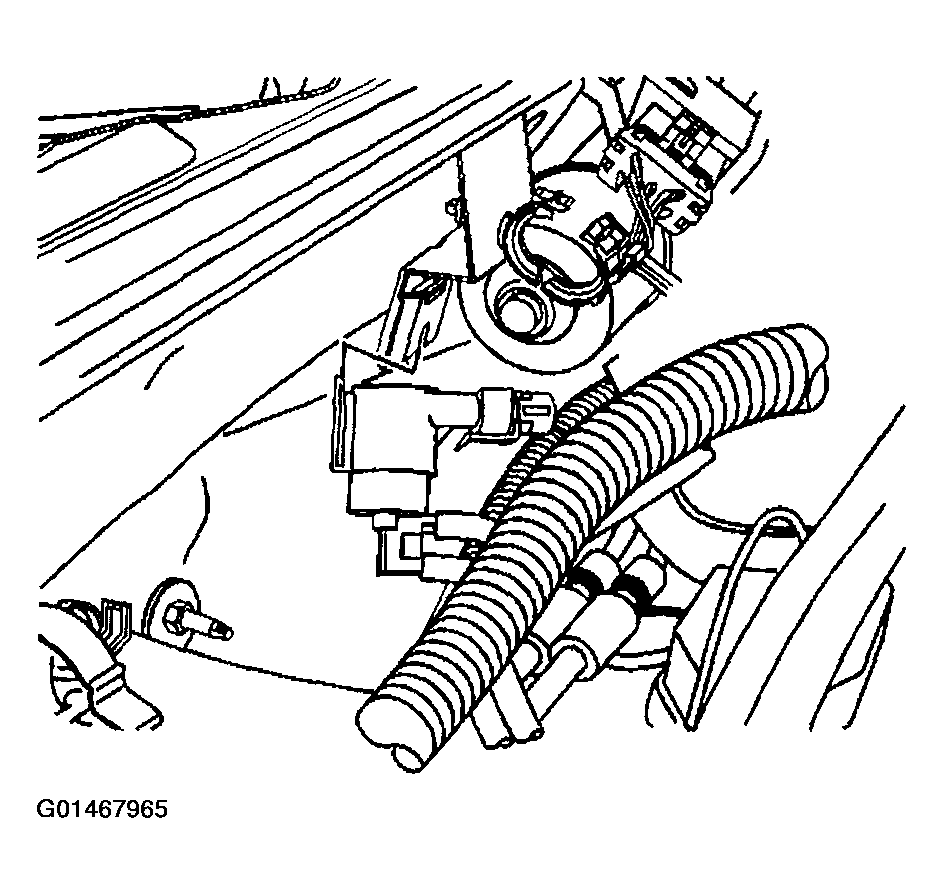

    Fig 1: Removing Vacuum Solenoid Valve From Vacuum Solenoid Valve Bracket
    G01467965Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the vacuum solenoid valve.

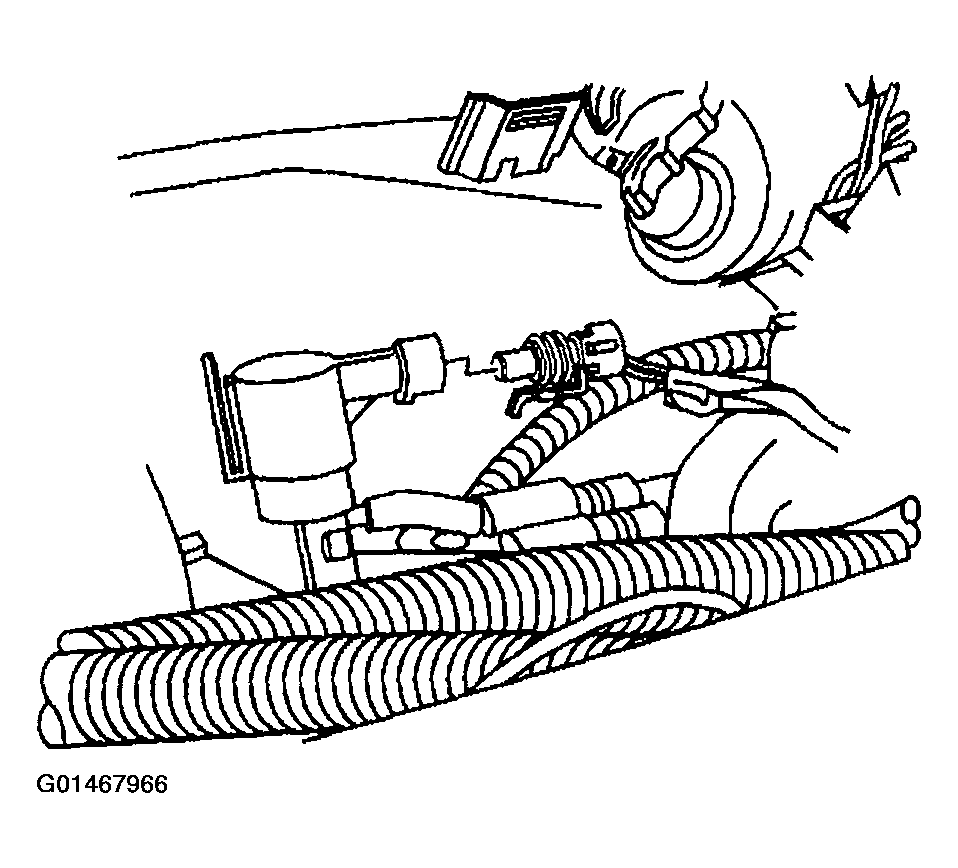

    Fig 2: Disconnecting Electrical Connector From Vacuum Solenoid Valve
    G01467966Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the vacuum hoses from the vacuum solenoid valve.
  5. Remove the vacuum solenoid valve.

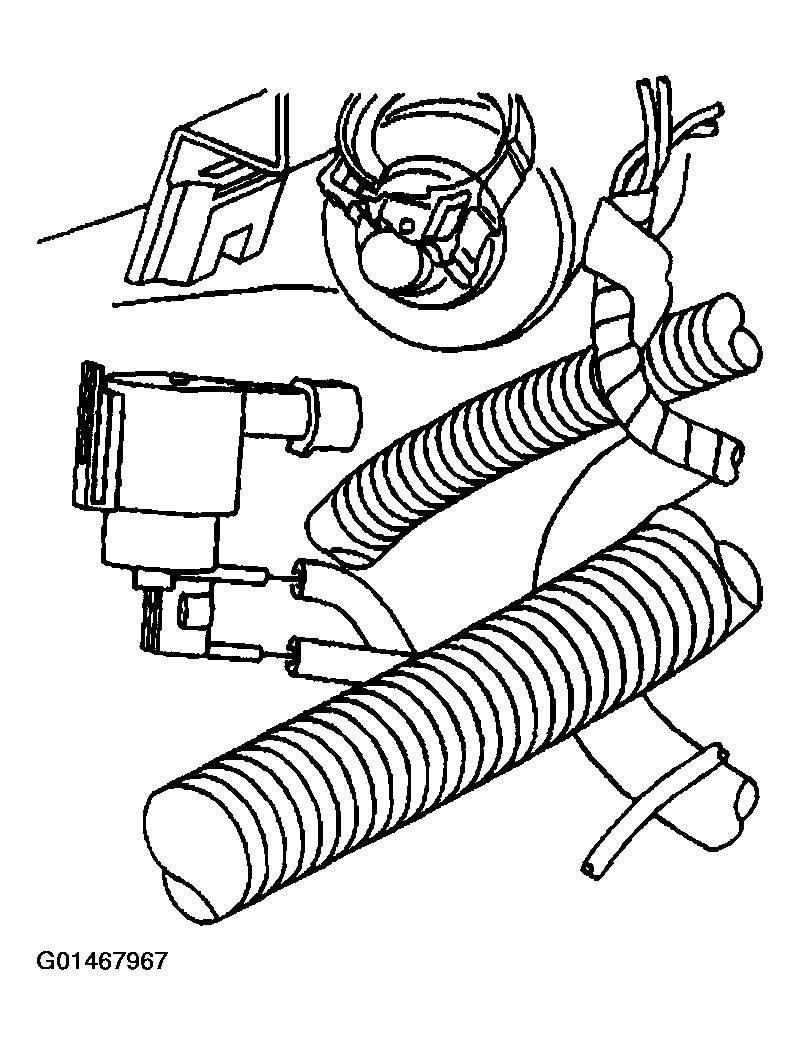

    Fig 3: Disconnecting Vacuum Hoses From Vacuum Solenoid Valve
    G01467967Courtesy of GENERAL MOTORS CORP.
