Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the vacuum hoses to the vacuum solenoid valve.

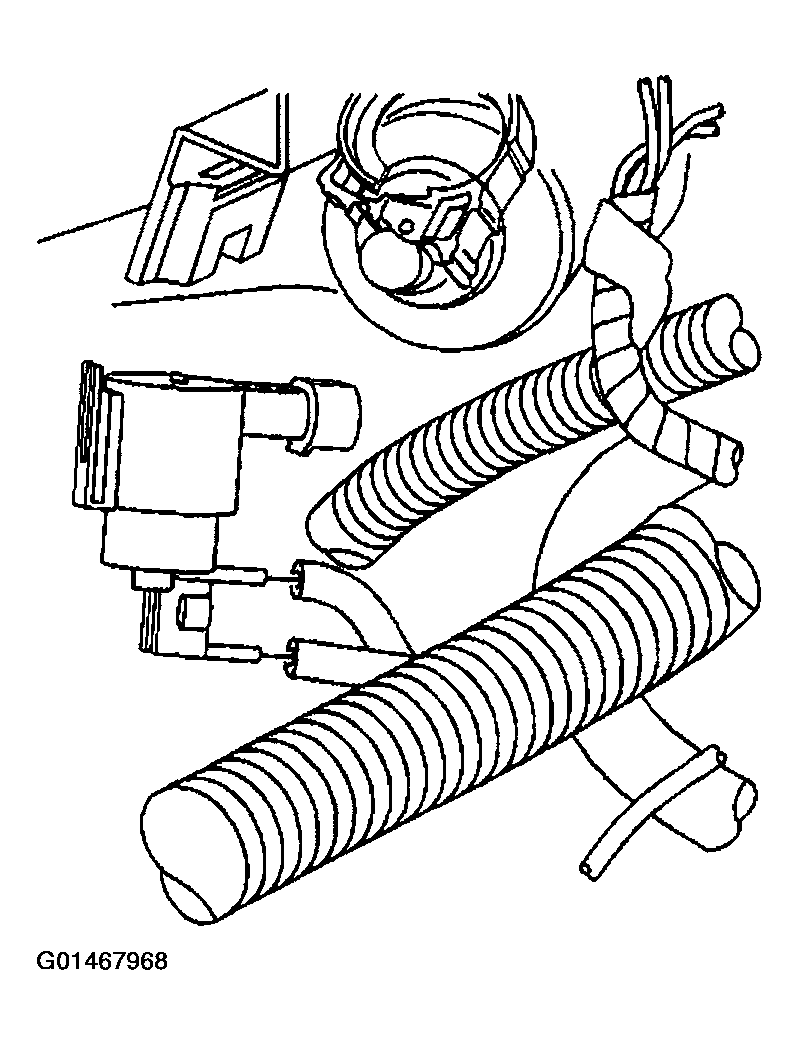

    Fig 1: Connecting Vacuum Hoses To Vacuum Solenoid Valve
    G01467968Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the vacuum solenoid valve.

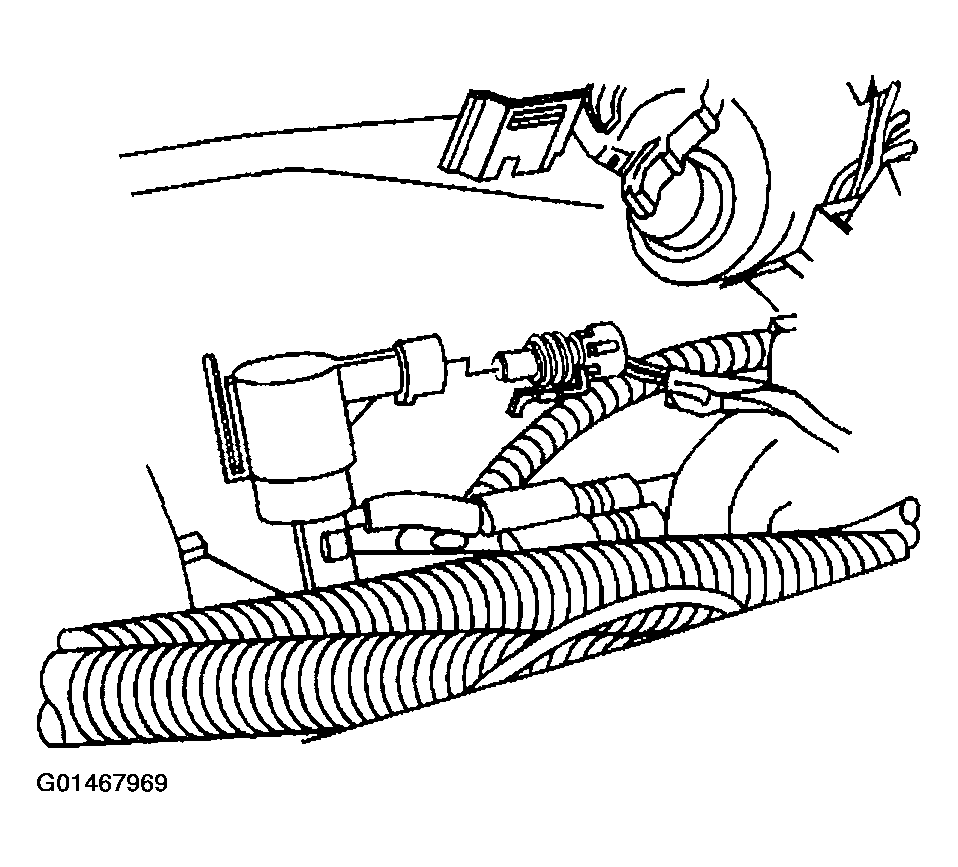

    Fig 2: Connecting Electrical Connector To Vacuum Solenoid Valve
    G01467969Courtesy of GENERAL MOTORS CORP.
  3. Install the vacuum solenoid valve to the vacuum solenoid valve bracket.
  4. Close the hood.

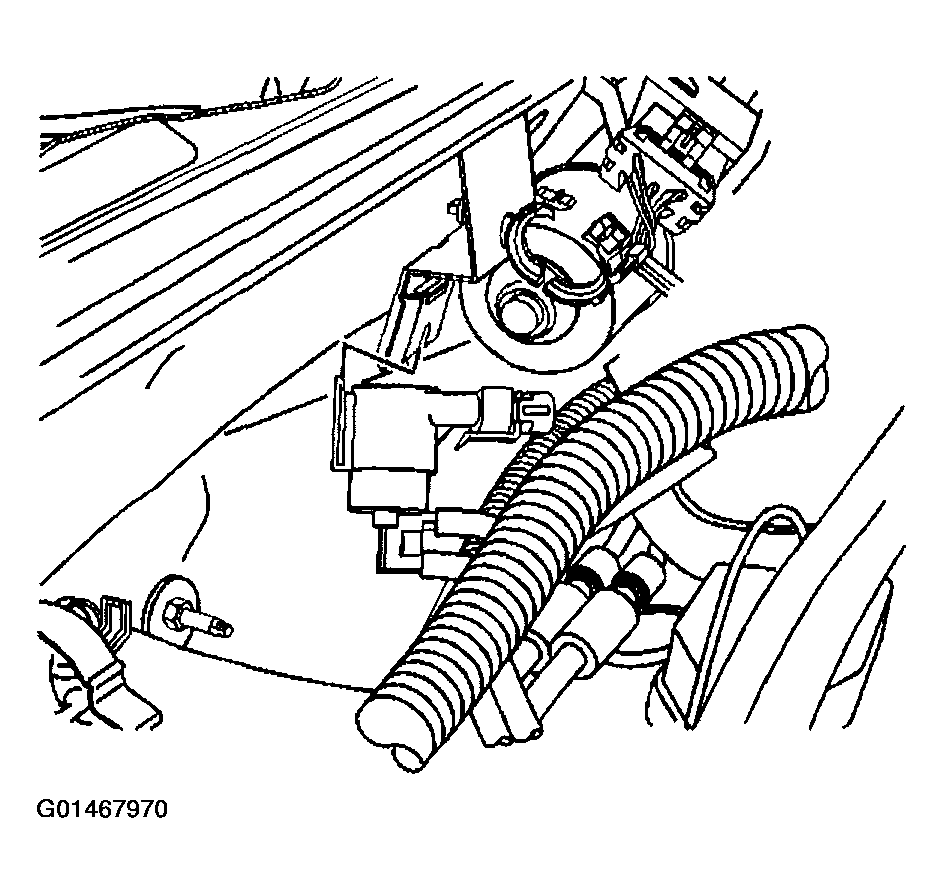

    Fig 3: Installing Vacuum Solenoid Valve To Vacuum Solenoid Valve Bracket
    G01467970Courtesy of GENERAL MOTORS CORP.
