Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the grille pin and locking tabs to the front fascia.
  2. Press inward on the grille until all tabs are locked in place.
  3. Install the retainers to the top of the grille.

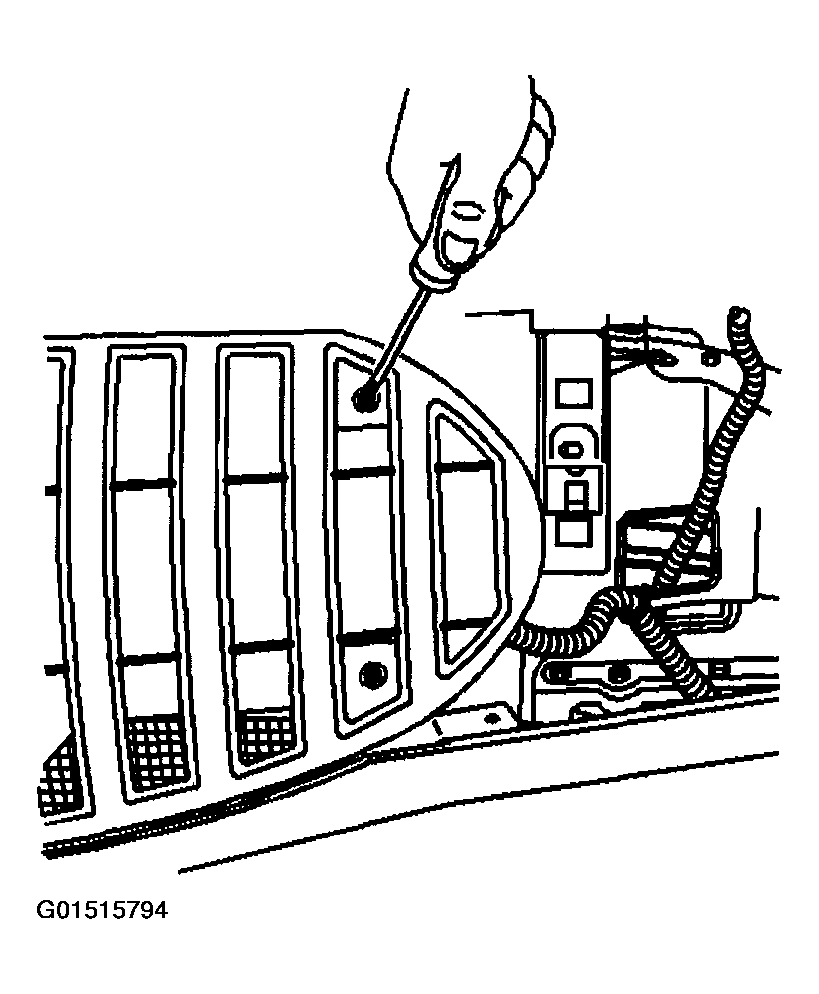

    Fig 1: Installing Grille Screws
    G01515794Courtesy of GENERAL MOTORS CORP.
  4. Install the grille screws.

    Tighten

    Tighten the grille screws to 2 N.m (18 lb in).

  5. Install the headlamp assembly refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (AZTEK) or HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (RENDEZVOUS) .

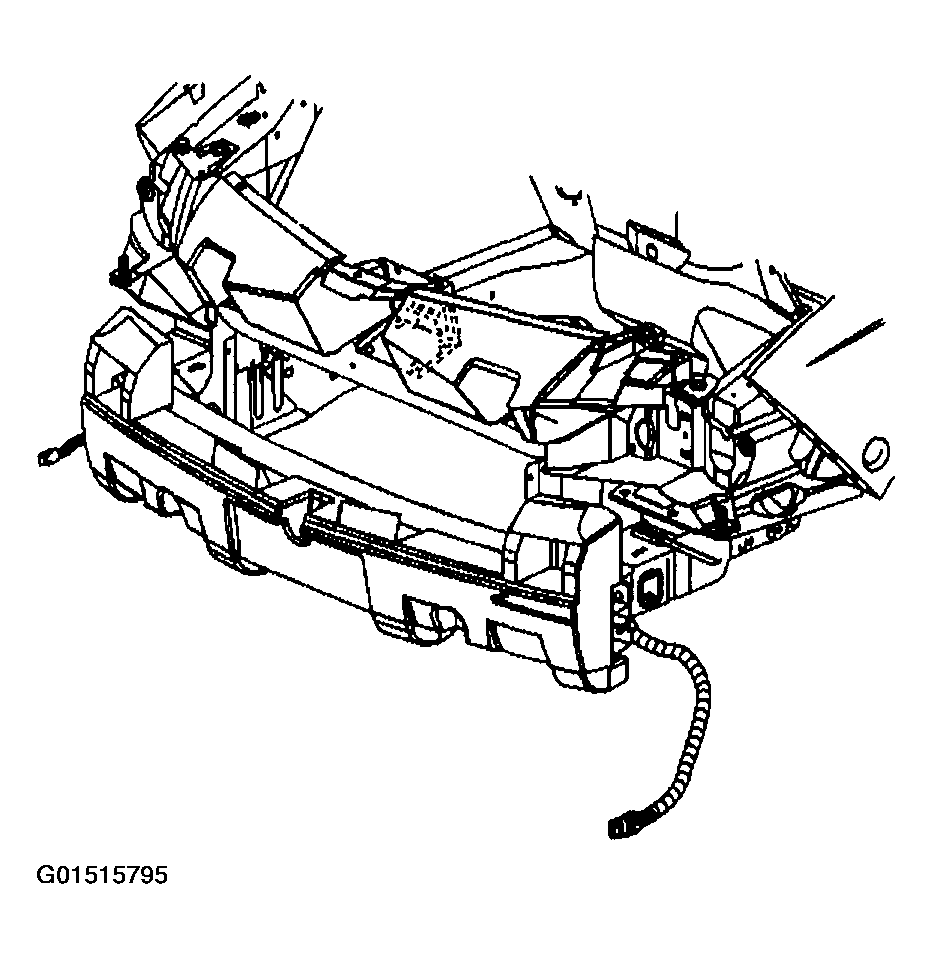

    Fig 2: Connecting Headlamp Wiring Harness To Fascia Upper Support
    G01515795Courtesy of GENERAL MOTORS CORP.
