Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear bumper energy absorber to the rear fascia.
  2. Install the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER (AZTEK)  or FASCIA REPLACEMENT - REAR BUMPER (RENDEZVOUS)  .

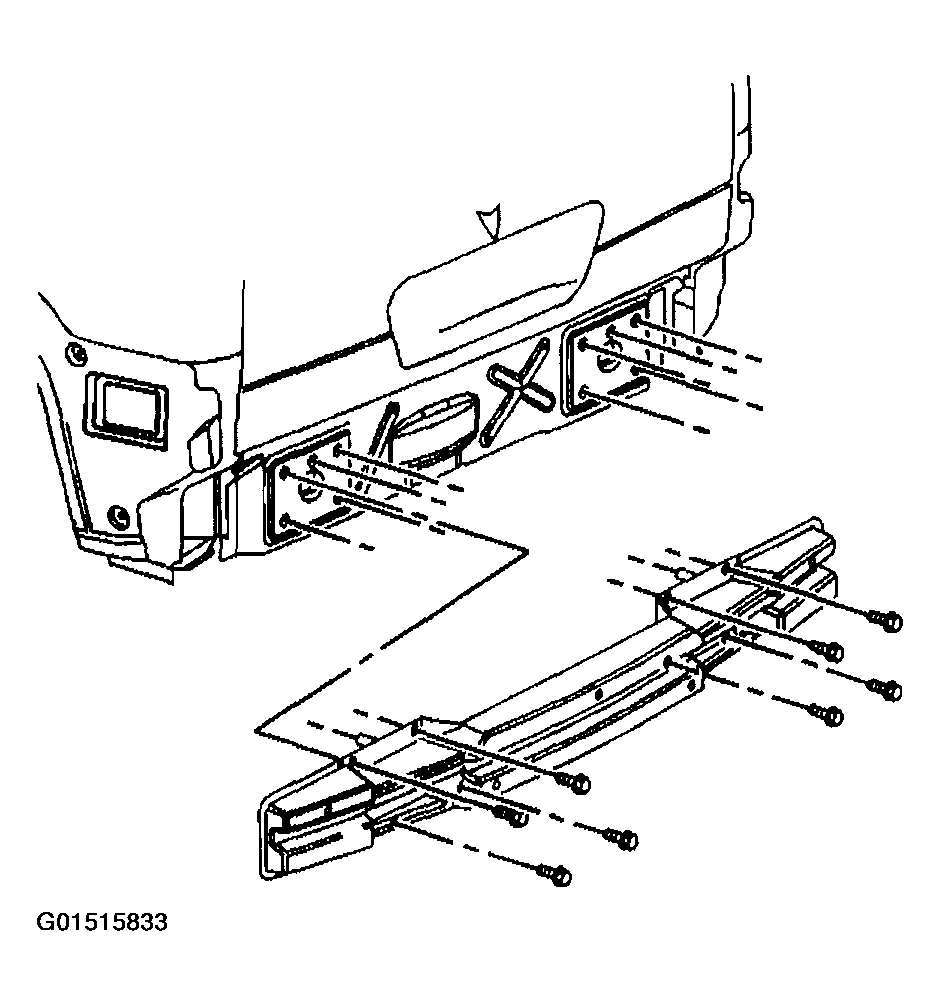

    Fig 1: Installing Impact Bar Bolts
    G01515833Courtesy of GENERAL MOTORS CORP.
