Courtesy Lamps Inoperative

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

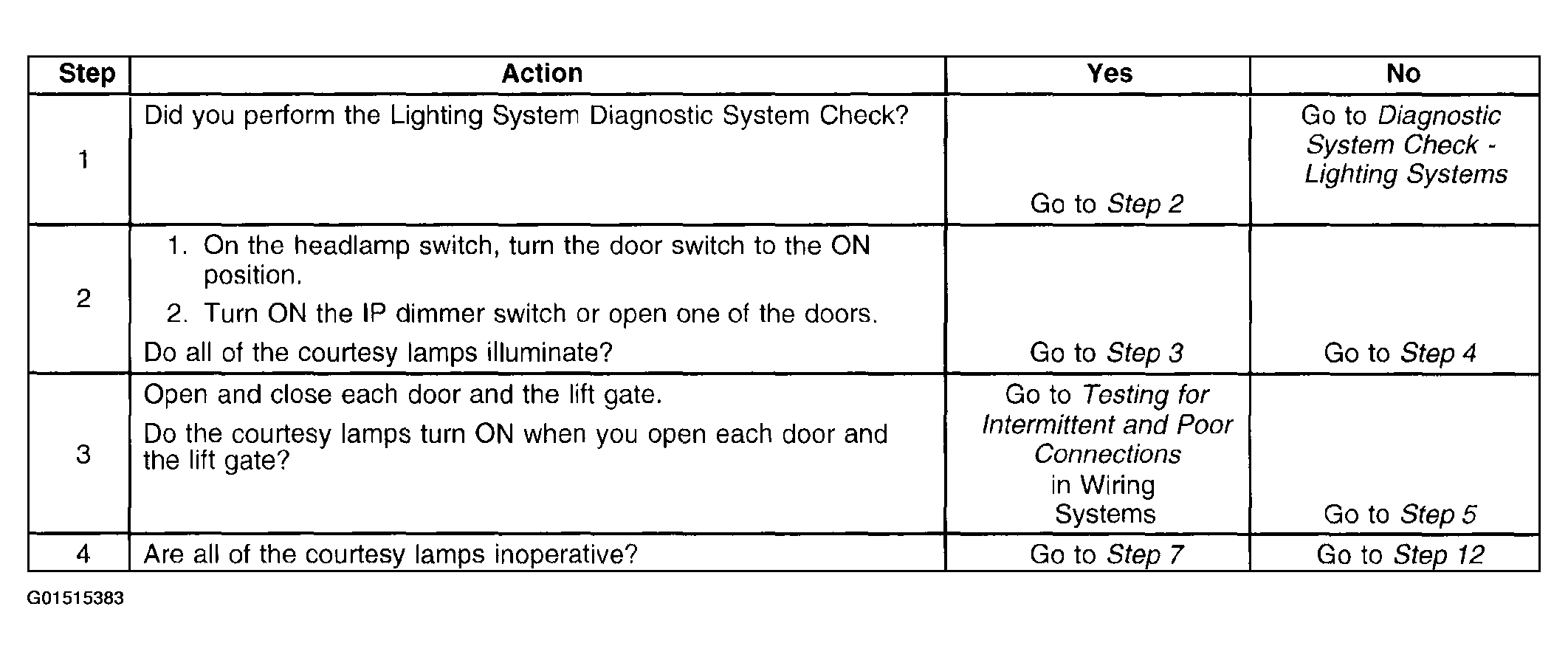

Fig 1: Courtesy Lamps Inoperative Diagnosis (Steps 1-4)

Courtesy of GENERAL MOTORS CORP.

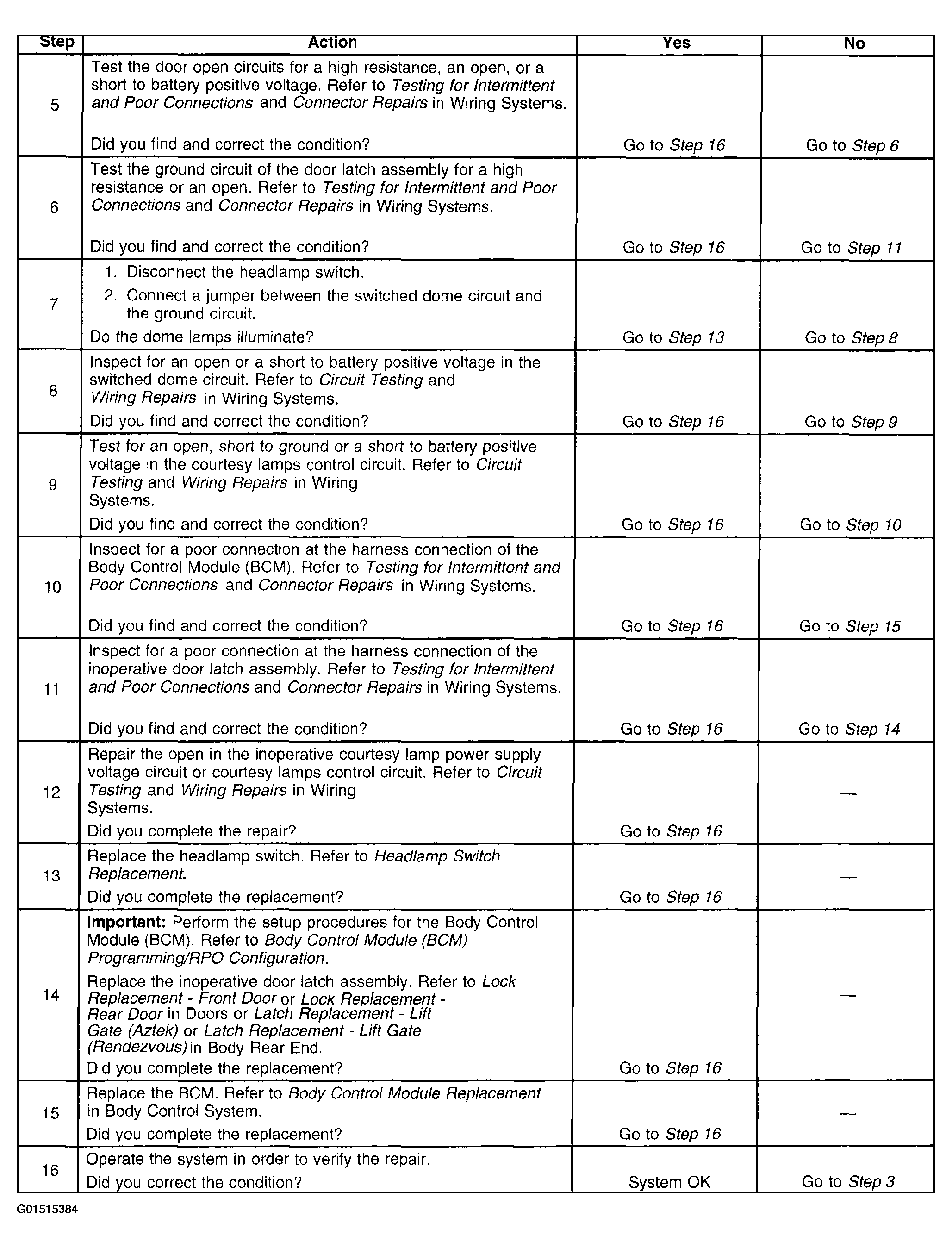

Fig 2: Courtesy Lamps Inoperative Diagnosis (Steps 5-16)

Courtesy of GENERAL MOTORS CORP.
