Diagnostic Aids

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

If the DTC B2532 is a history DTC, the fault may be intermittent. Refer to TESTING FOR INTERMITTENT AND POOR CONNECTIONS .
An intermittent short to ground or an open in the following locations may cause an intermittent malfunction to occur:
- The control circuit of the fog lamps relay
- The fog lamps relay
- The body control module (BCM)

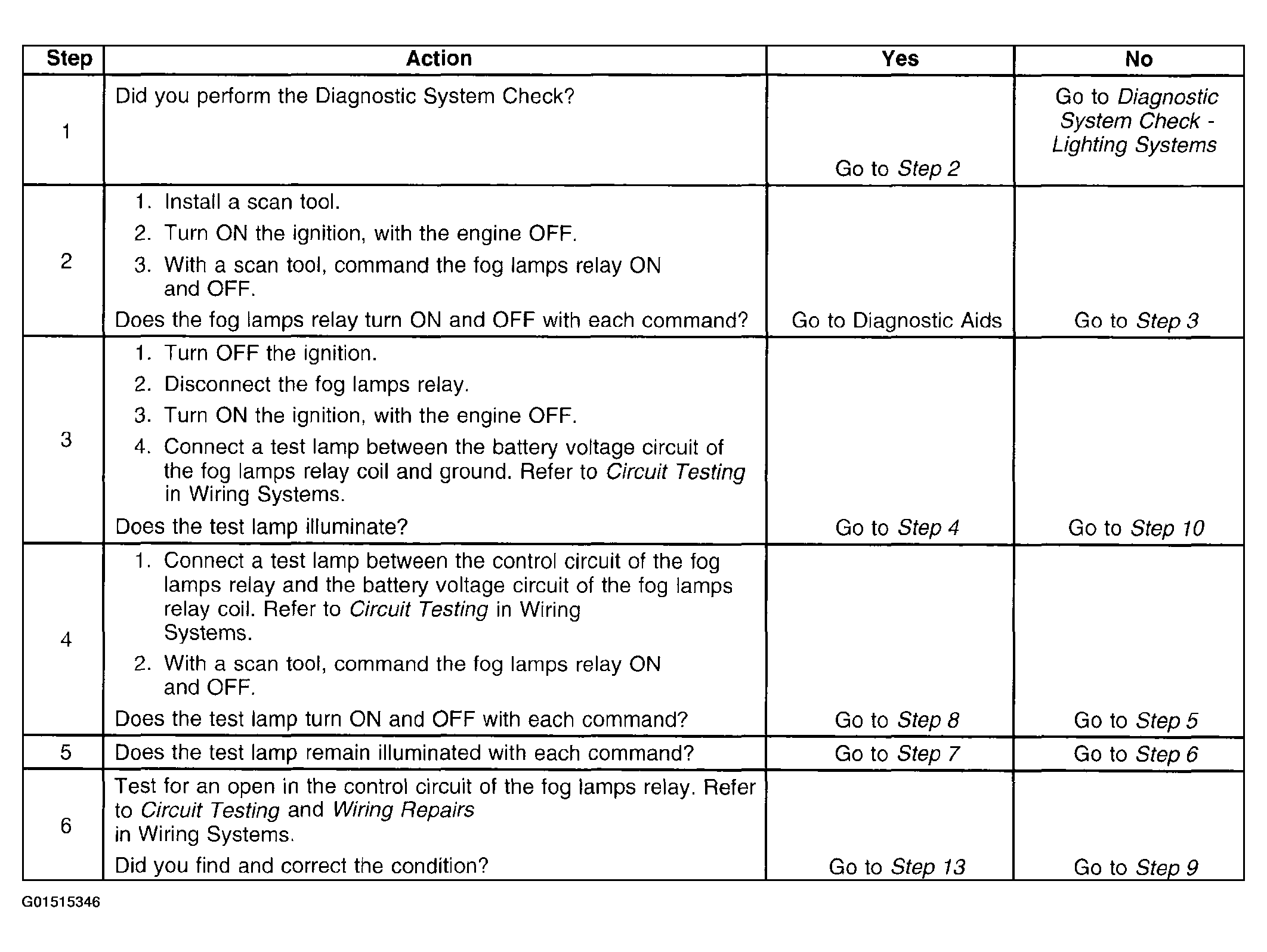

Fig 1: DTC B2532 Diagnosis (Steps 1-6)
Courtesy of GENERAL MOTORS CORP.

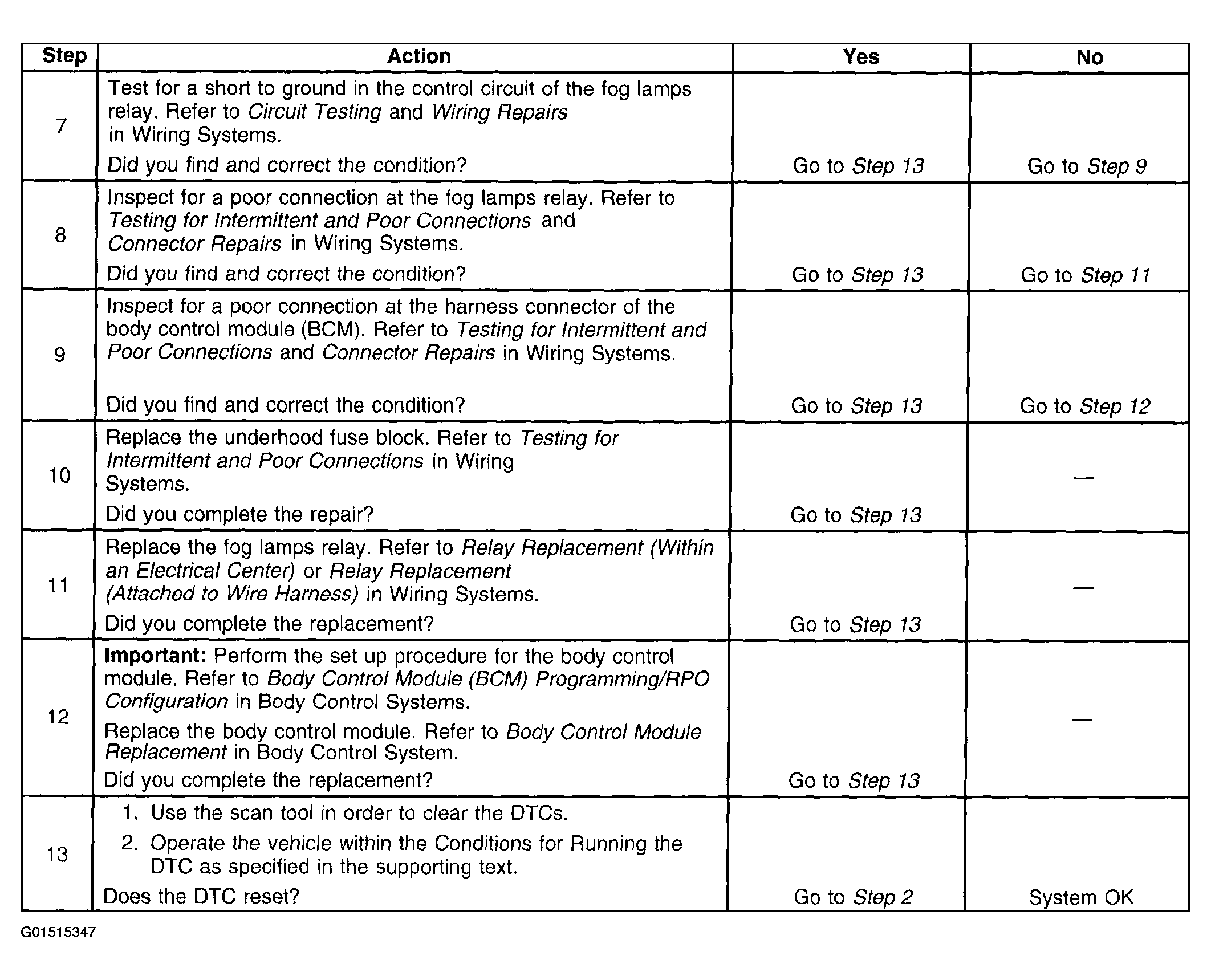

Fig 2: DTC B2532 Diagnosis (Steps 7-13)
Courtesy of GENERAL MOTORS CORP.
