Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right front seat. Refer to SEAT REPLACEMENT -- BUCKET .
  2. Remove the front seat cushion inner trim panel. Refer to SEAT CUSHION INNER TRIM PANEL REPLACEMENT -- FRONT .
  3. Remove the nut from the seat belt buckle anchor stud.

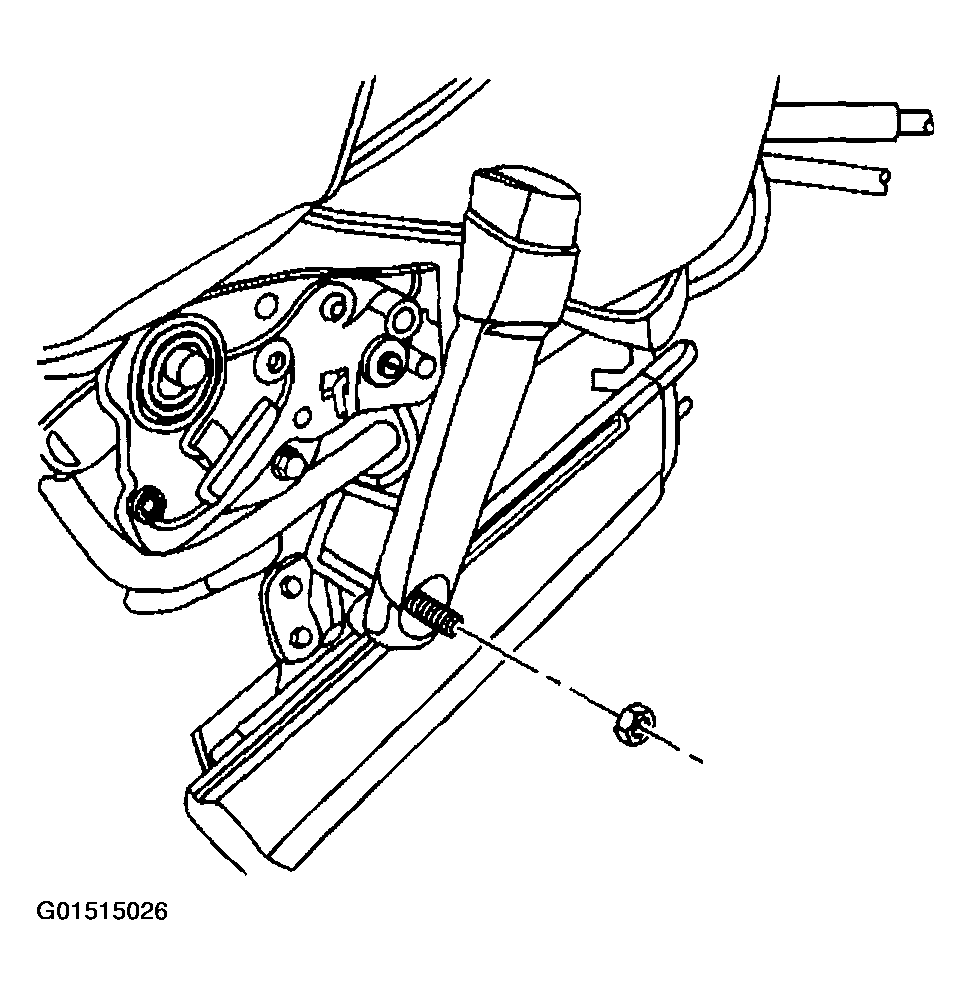

    Fig 1: Removing Procedure Of Seat Belt Buckle - Right Front (1 Of 2)
    G01515026Courtesy of GENERAL MOTORS CORP.
  4. Remove the seat belt buckle from the right front seat.

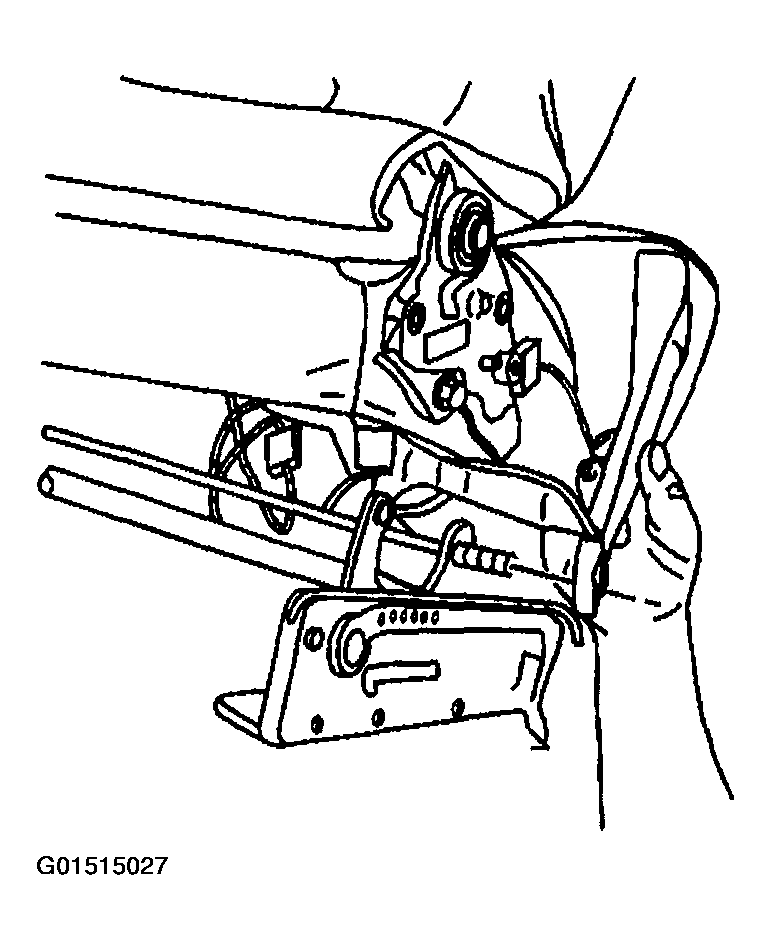

    Fig 2: Removing Procedure Of Seat Belt Buckle - Right Front (2 Of 2)
    G01515027Courtesy of GENERAL MOTORS CORP.
