Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat belt buckle to the right and/or left rear seat belt anchor pulling the seat belt buckle through the slot in the rear seat cushion.

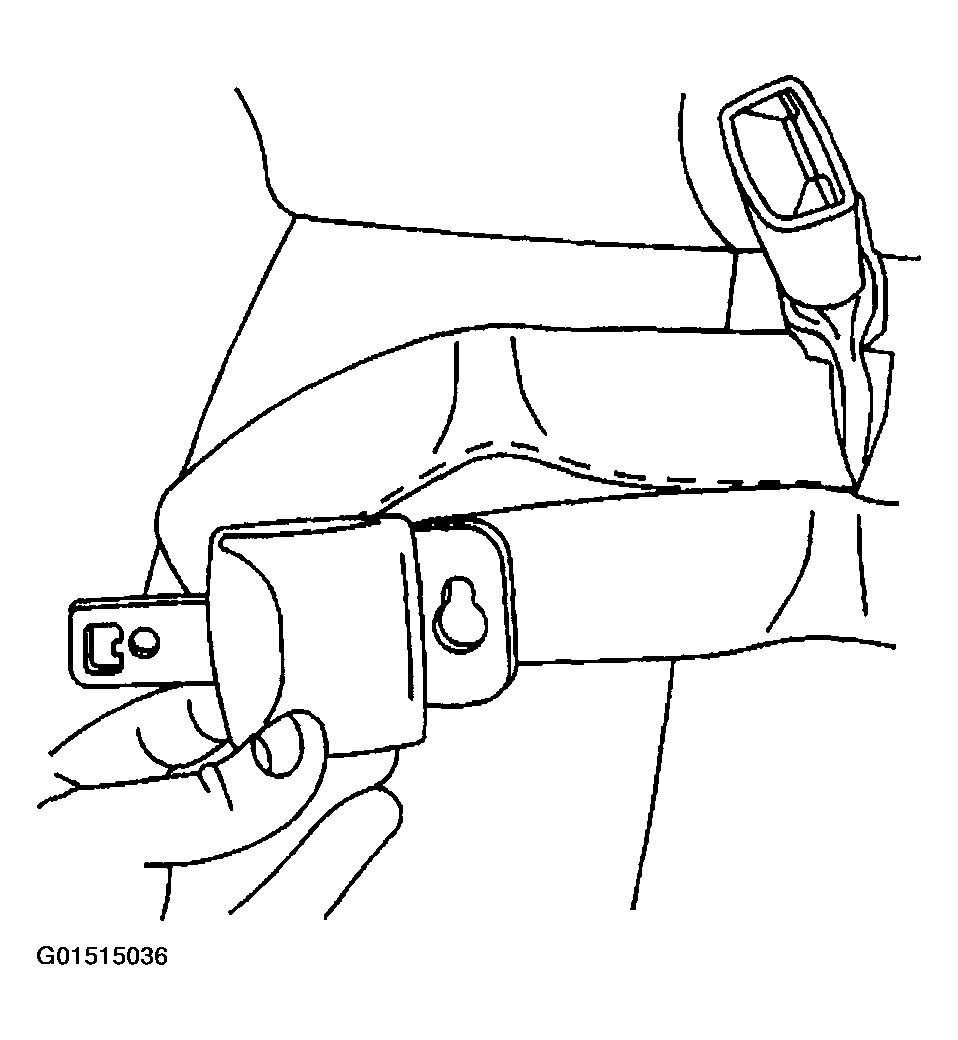

    Fig 1: Installing Procedure Of Seat Belt Buckle - Rear Split Bench (1 Of 2)
    G01515036Courtesy of GENERAL MOTORS CORP.
  2. Install the bolt to the right and/or left rear bench seat belt buckle anchor.

    Tighten

    Tighten the right and/or left rear seat belt buckle anchor bolt to 42 N.m (31 lb ft).

  3. Install the rear bench seat trim.
  4. Install the right and/or left rear split bench seat to the vehicle. Refer to SEAT REPLACEMENT -- REAR 50-50 SPLIT .

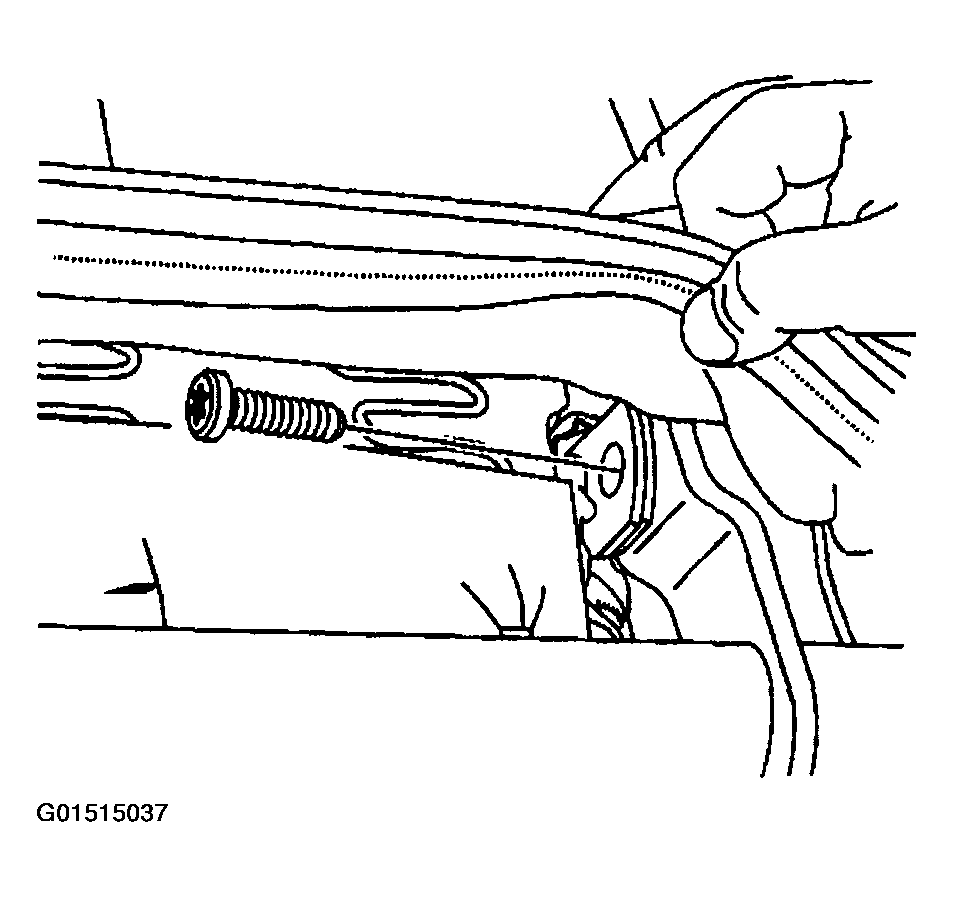

    Fig 2: Installing Procedure Of Seat Belt Buckle - Rear Split Bench (2 Of 2)
    G01515037Courtesy of GENERAL MOTORS CORP.
