Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seat belt buckle to the floor. Secure the buckle with the anchor bolt.

    Tighten

    Tighten the bolt to 53 N.m (30 lb ft).

  2. Install the rear storage compartment. Refer to STORAGE COMPARTMENT REPLACEMENT -- REAR (RENDEZVOUS) .
  3. Close the lift gate.

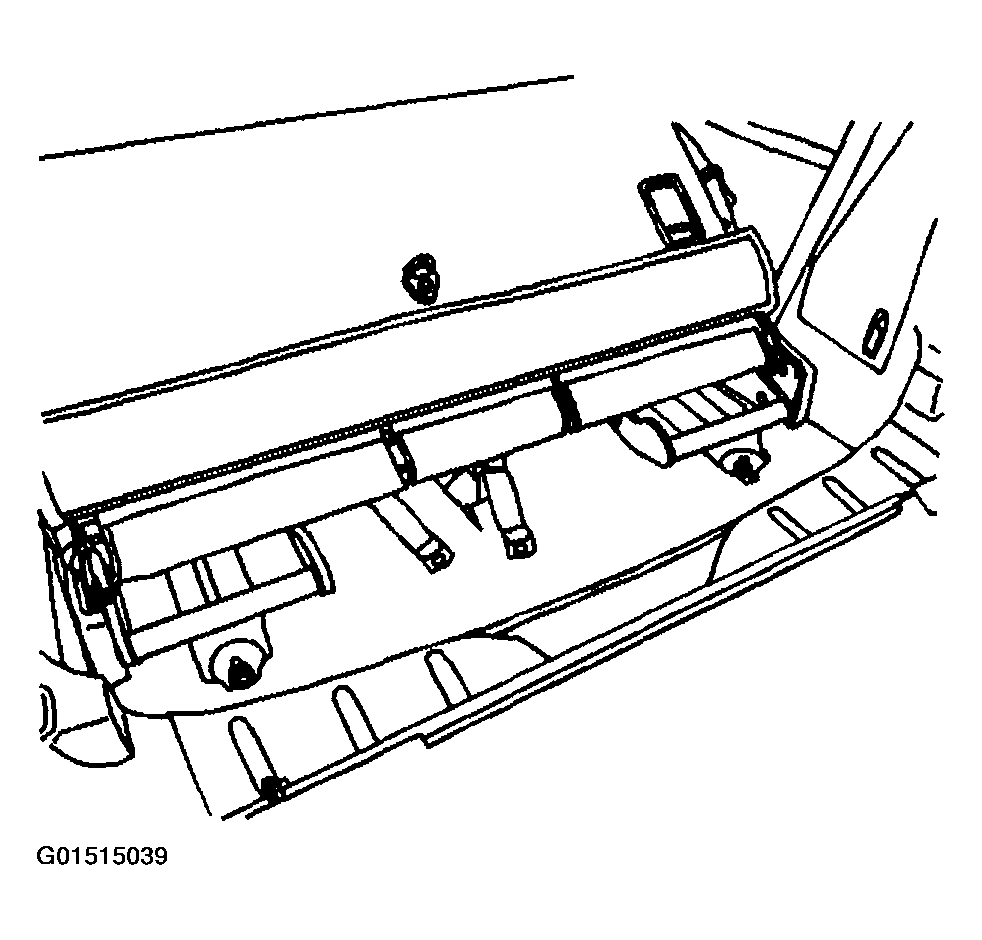

    Fig 1: Installing Procedure Of Seat Belt Buckle - No. 2 Rear
    G01515039Courtesy of GENERAL MOTORS CORP.
