Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the lift gate.
  2. Remove the access trim panel from the lift gate.
  3. Remove 2 screws from the bottom of the trim panel.
  4. Use J 38778  to disengage the fasteners from the trim panel.
  5. Remove the trim panel.

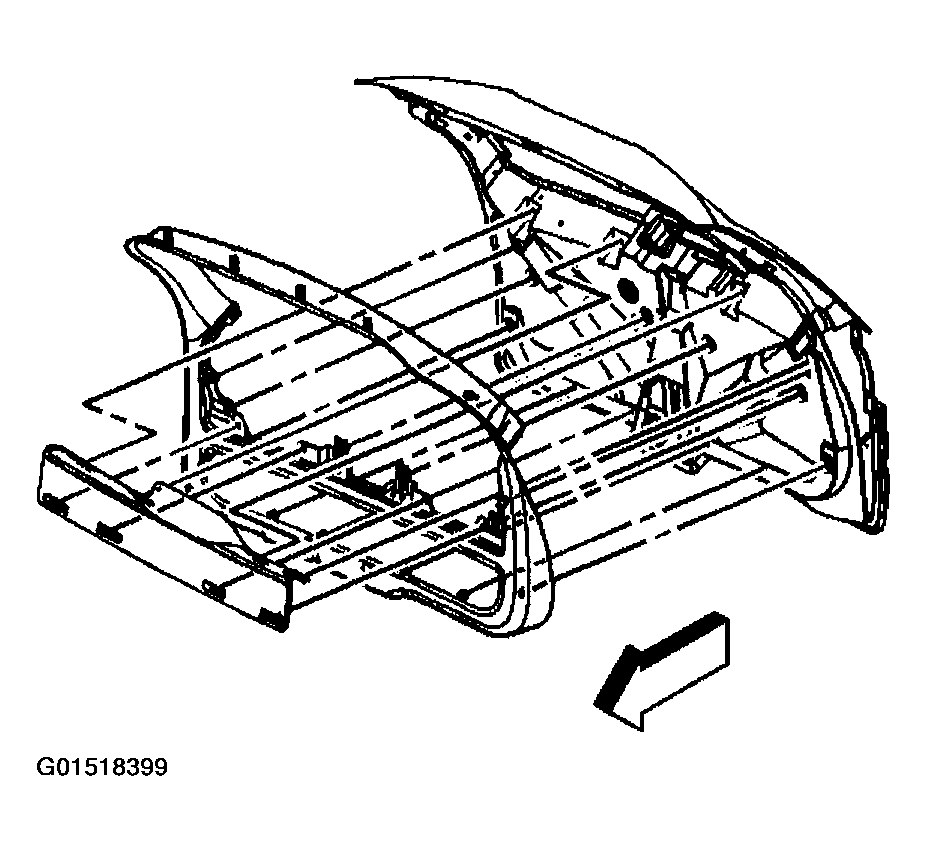

    Fig 1: Removing Procedure Trim Panel Replacement - Lift Gate (Rendezvous)
    G01518399Courtesy of GENERAL MOTORS CORP.
