Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel filler cap from the fuel filler neck.
  2. Remove the fuel filler neck seal from the fuel filler neck.
  3. Remove the screws from the fuel filler pocket.
  4. Remove the fuel filler pocket from the fuel filler neck.

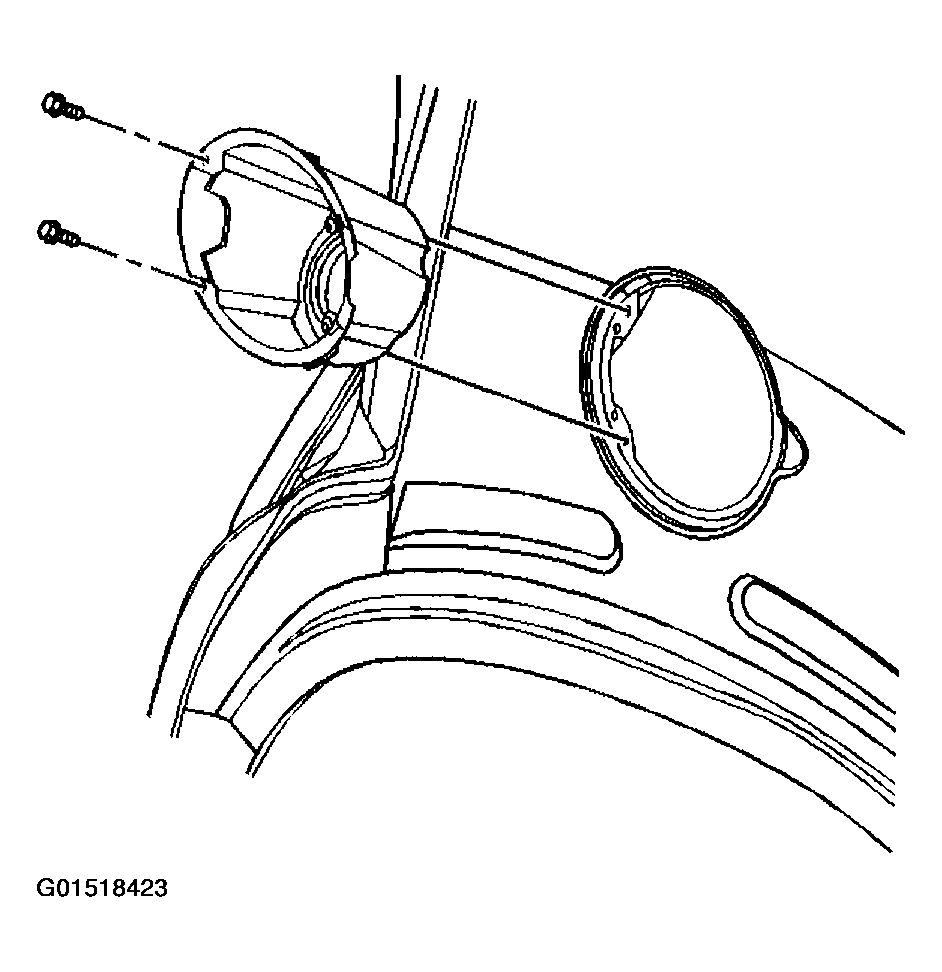

    Fig 1: Removing Procedure Fuel Filler Pocket (Rendezvous)
    G01518423Courtesy of GENERAL MOTORS CORP.
