Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Align the push-in retainers on the upper trim panel to the inner panel.
Install the push-in retainers, applying pressure to secure the panel at all of the retainer locations.

Fig 1: Installing Procedure Trim Panel - Rear Quarter Upper (Aztek) (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

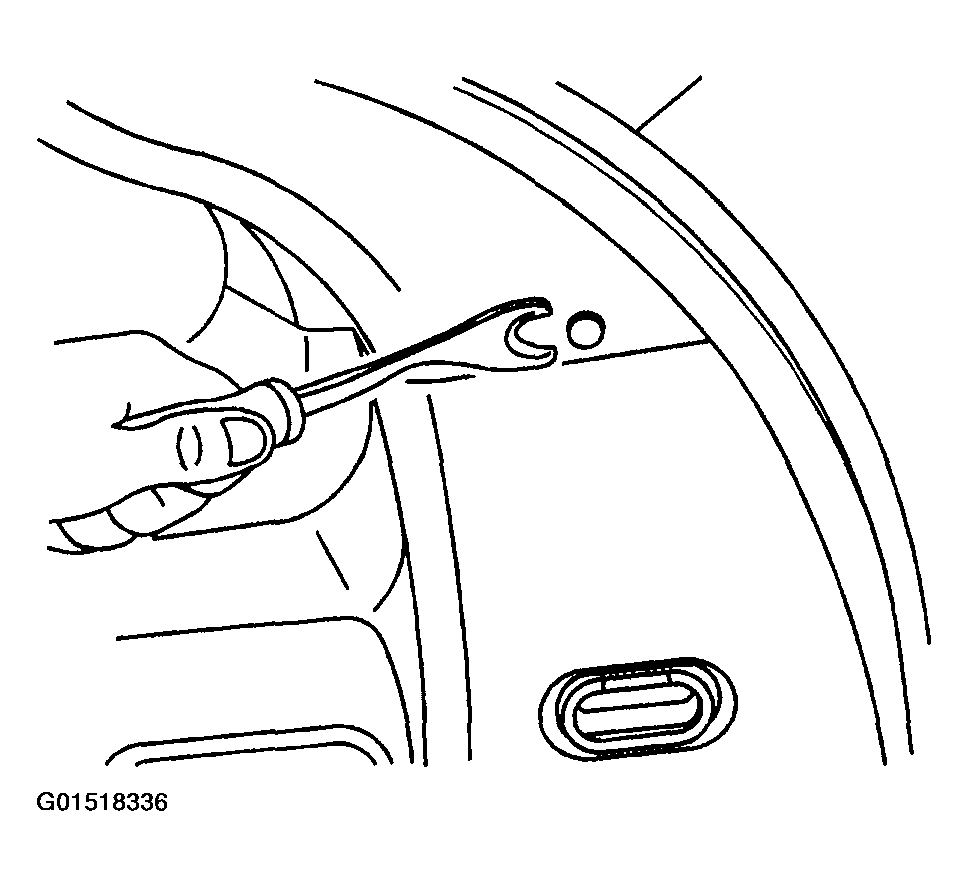

Install the push pins to the upper quarter trim.
Install the rear seat belt guide loop to the rear upper quarter trim panel. Refer to SEAT BELT RETRACTOR REPLACEMENT - REAR .

Fig 2: Installing Procedure Trim Panel - Rear Quarter Upper (Aztek) (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

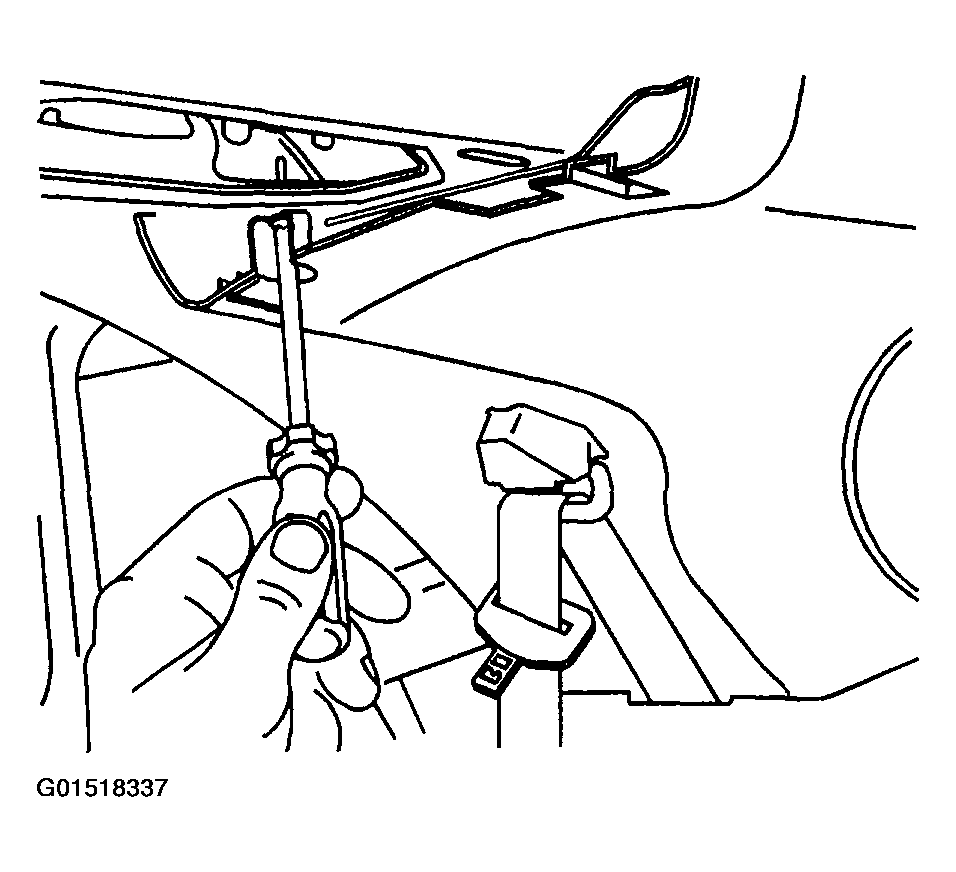

Install the upper quarter screw.
Install the rear roof garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR UPPER .

Fig 3: Installing Procedure Trim Panel - Rear Quarter Upper (Aztek) (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
