Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear quarter trim panel to the vehicle.
  2. Install the cargo net tie-down loops to the rear quarter trim panel. Secure the loops with bolts.

    Tighten

    Tighten the bolts to 6 N.m (53 lb in).

  3. Install the upper trim panels. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (AZTEK)  or TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (RENDEZVOUS)  .
  4. Install the seat belt guide loops to the rear seat and to the rear No. 2 seat. Refer to SEAT BELT RETRACTOR REPLACEMENT - REAR and SEAT BELT RETRACTOR REPLACEMENT - NO. 2 REAR .
  5. Install the rear No. 2 seat. Refer to SEAT REPLACEMENT -- REAR NO. 2 (BUICK) .

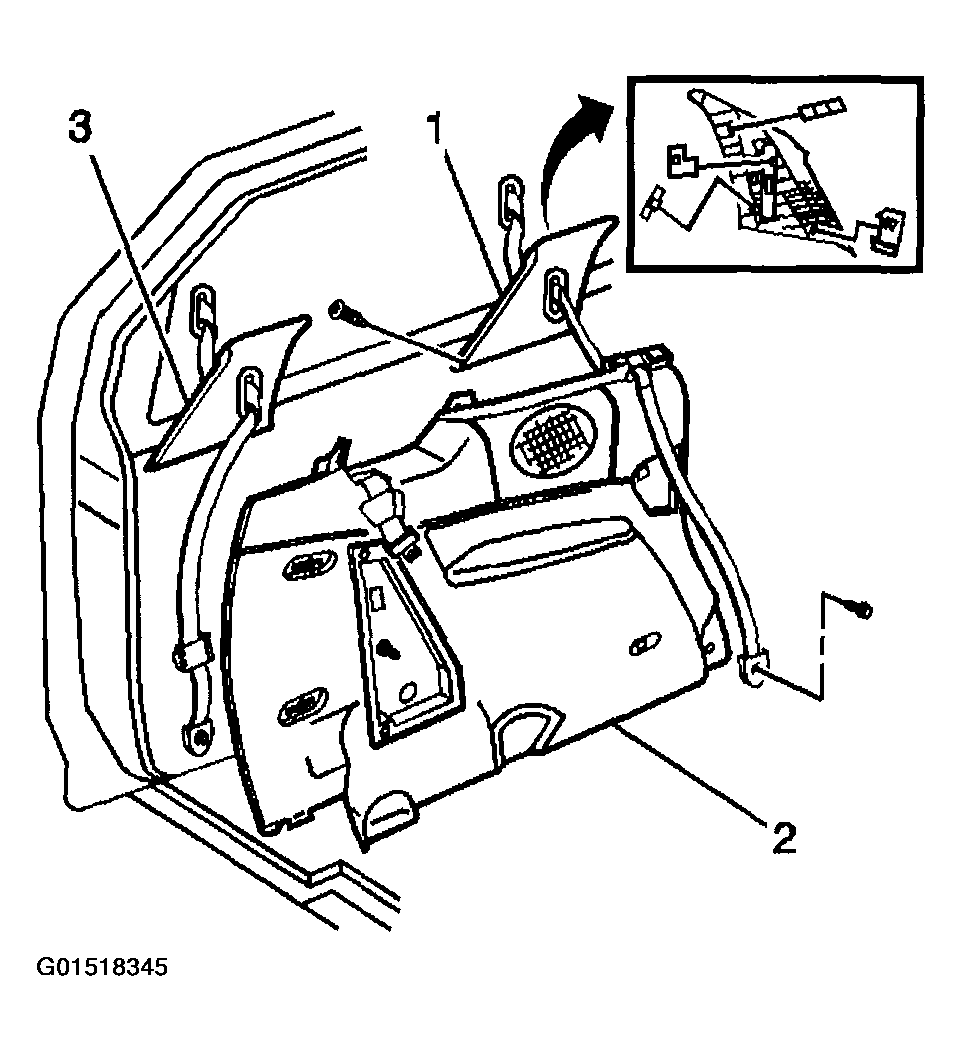

    Fig 1: Installing Procedure Trim Panel - Rear Quarter Lower (Rendezvous)
    G01518345Courtesy of GENERAL MOTORS CORP.
