Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear upper garnish molding by pulling the rear roof garnish molding to release the push-in retainers.

    Important:  The seat belt escutcheon is part of the seat belt assembly.

  2. Remove the seat belt escutcheon from the rear roof garnish molding using a small flat bladed tool.
  3. Disconnect the electrical connector from the rear cargo lamp.
  4. Remove the rear seat belt from the slot in the rear roof garnish molding.
  5. Remove the rear roof garnish molding from the vehicle.

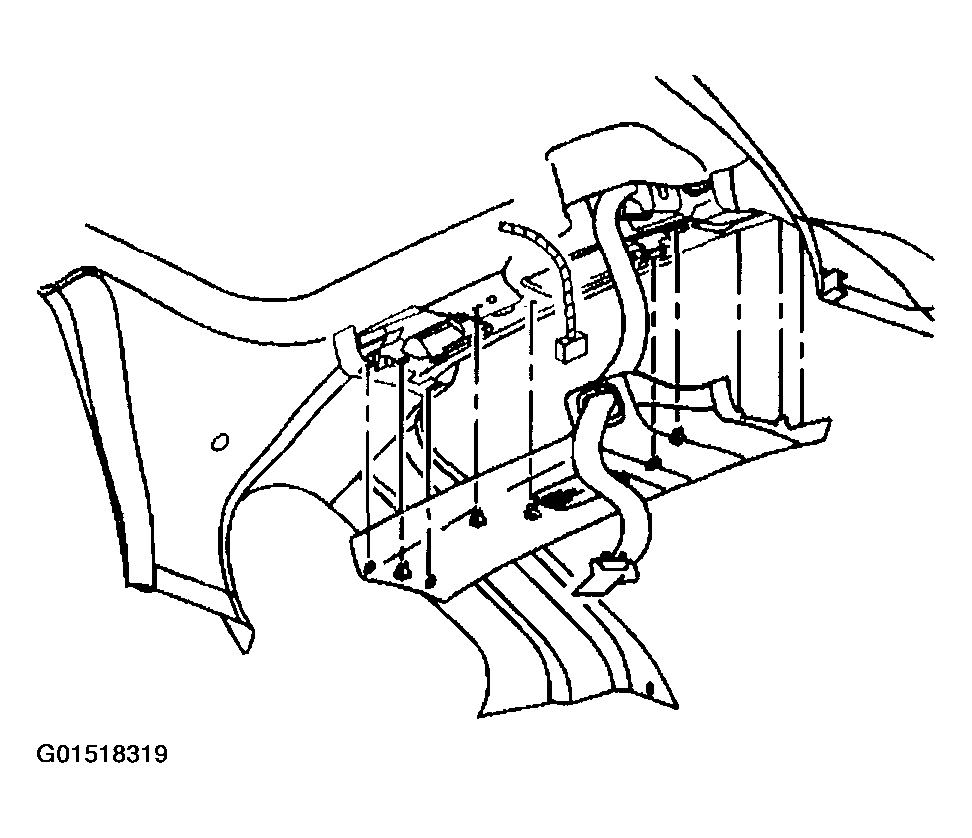

    Fig 1: Removing Procedure Of Garnish Molding - Rear Upper
    G01518319Courtesy of GENERAL MOTORS CORP.
