Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door sill plate.
  2. Remove the rear door sill plate from the door sill.

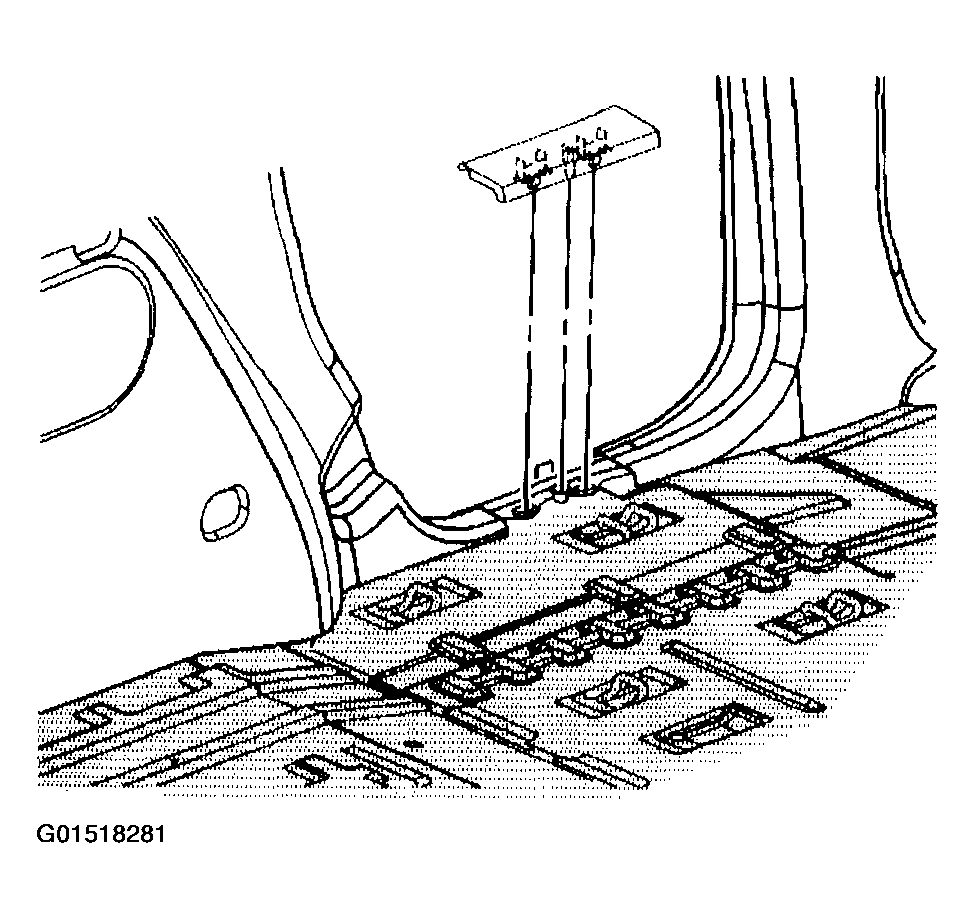

    Fig 1: Removing Procedure Of Door Sill Plate - Rear (1 Of 2)
    G01518281Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear door sill plate push-in retainers if required.

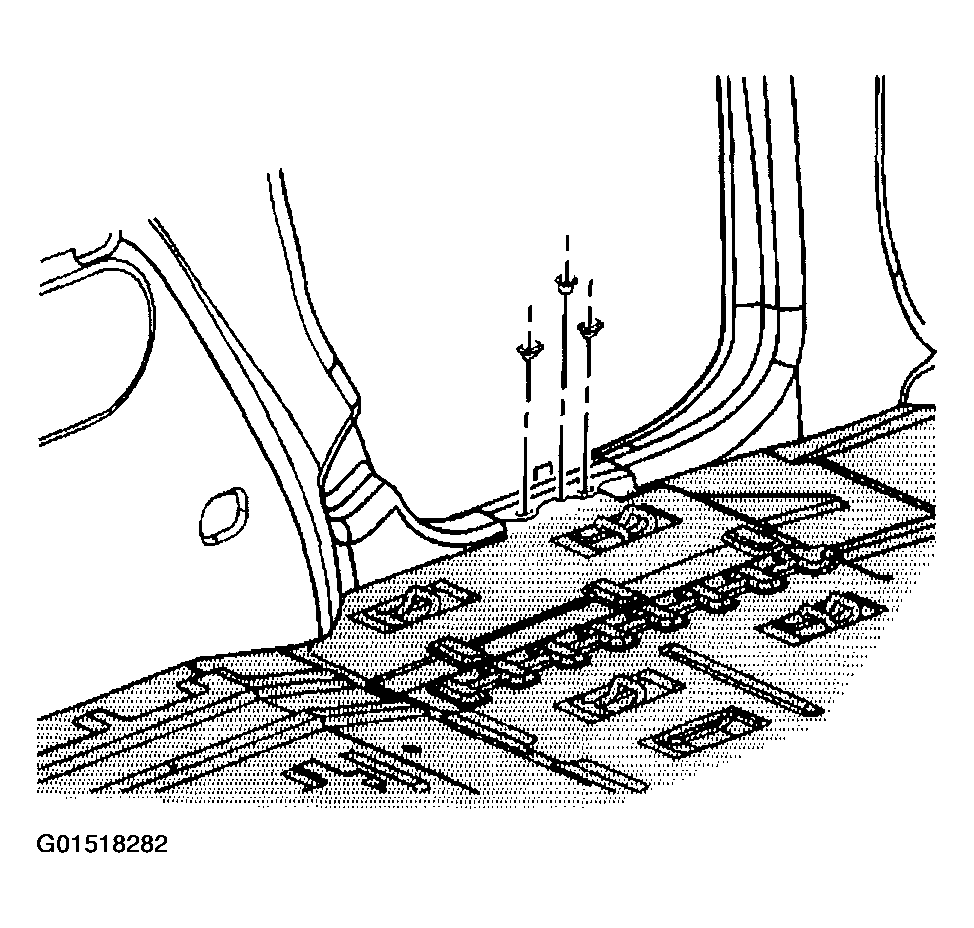

    Fig 2: Removing Procedure Of Door Sill Plate - Rear (2 Of 2)
    G01518282Courtesy of GENERAL MOTORS CORP.
