Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear storage compartment. Refer to STORAGE COMPARTMENT REPLACEMENT -- REAR (RENDEZVOUS) .
  2. Roll the second row seats forward.
  3. Remove the front anchor nuts from the rear No. 2 seat.

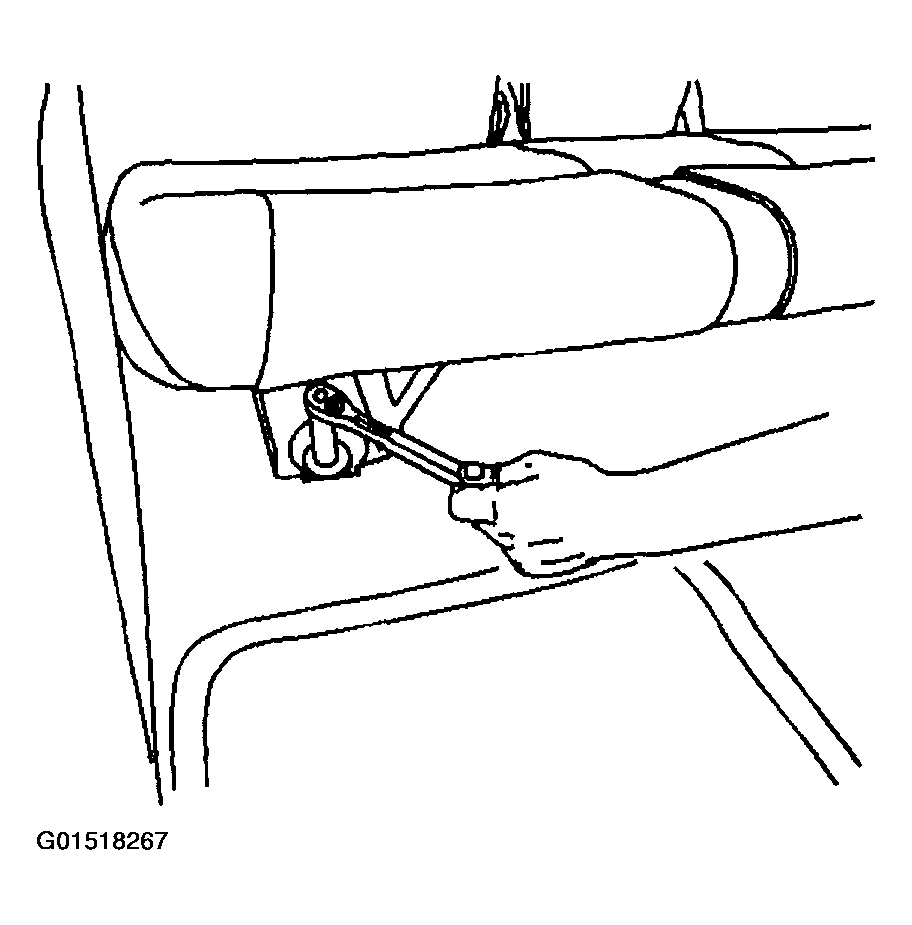

    Fig 1: Removing Front Anchor Nuts From Rear Seat
    G01518267Courtesy of GENERAL MOTORS CORP.
  4. Remove the seat.

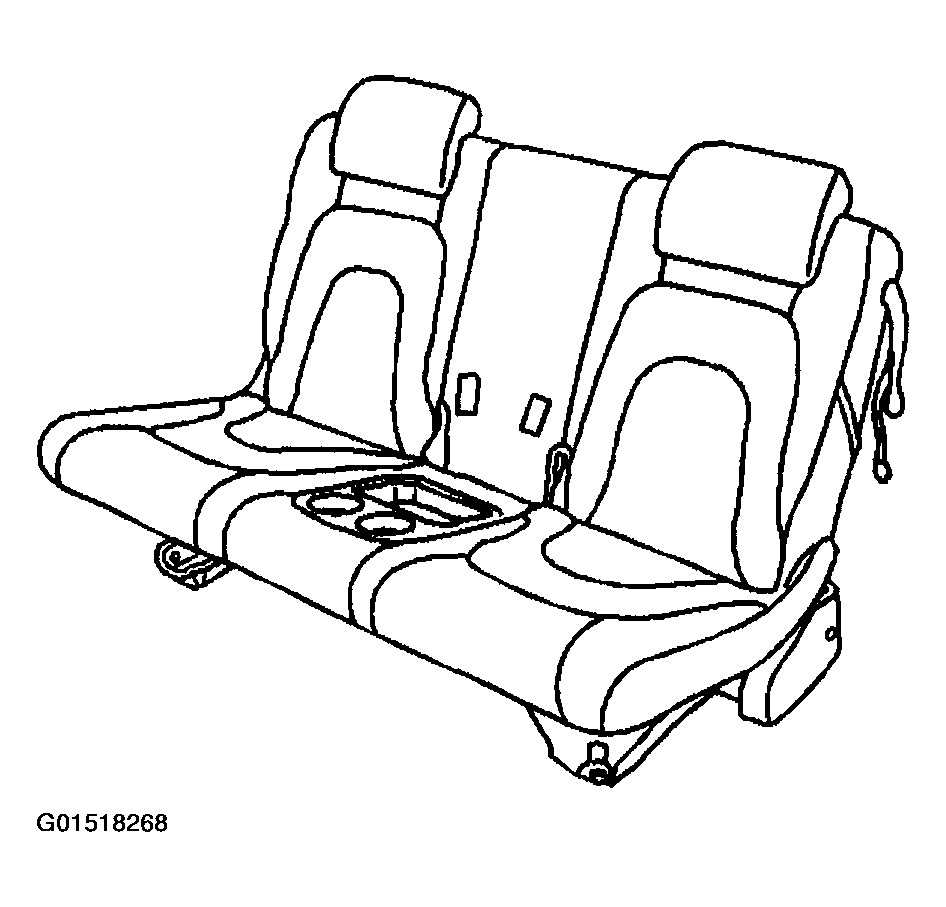

    Fig 2: Removing Seat
    G01518268Courtesy of GENERAL MOTORS CORP.
