Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat to the mounting studs.

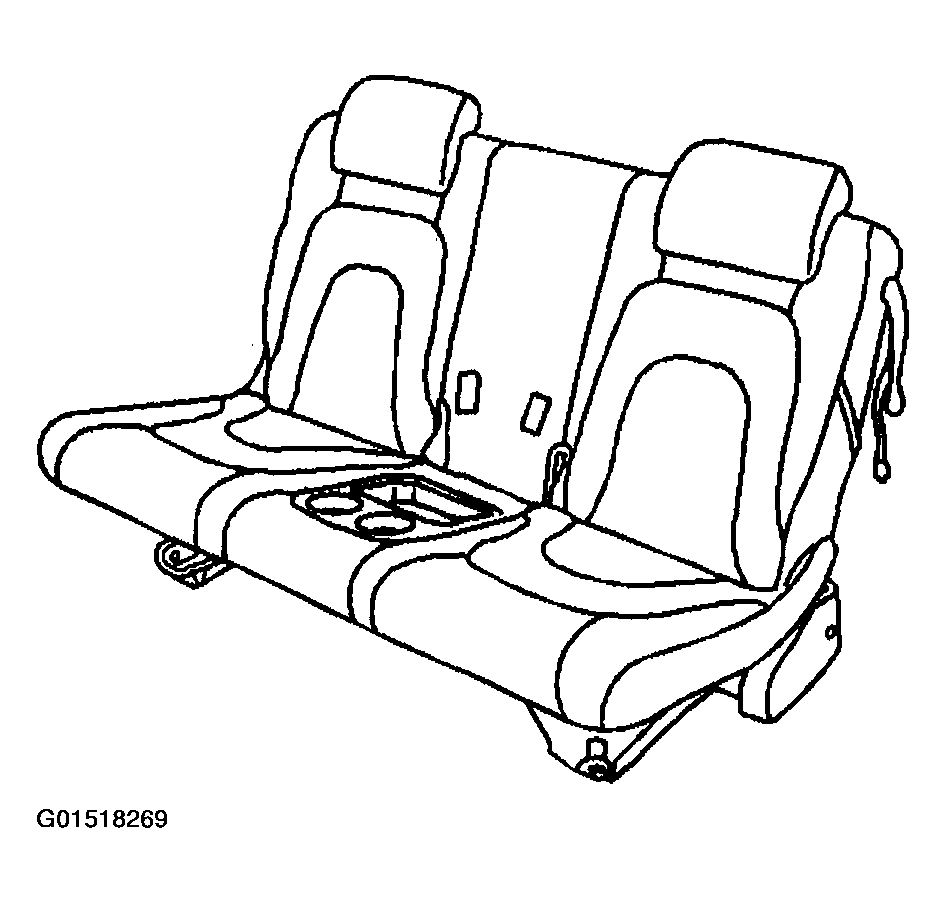

    Fig 1: Installing Rear Seat To Mounting Studs
    G01518269Courtesy of GENERAL MOTORS CORP.
  2. Install the front anchor nuts to the mounting studs on the rear seat.

    Tighten

    Tighten the nuts to 50 N.m (37 lb ft).

  3. Move the second row seat to the original position.
  4. Install the storage compartment. Refer to STORAGE COMPARTMENT REPLACEMENT -- REAR (RENDEZVOUS) .

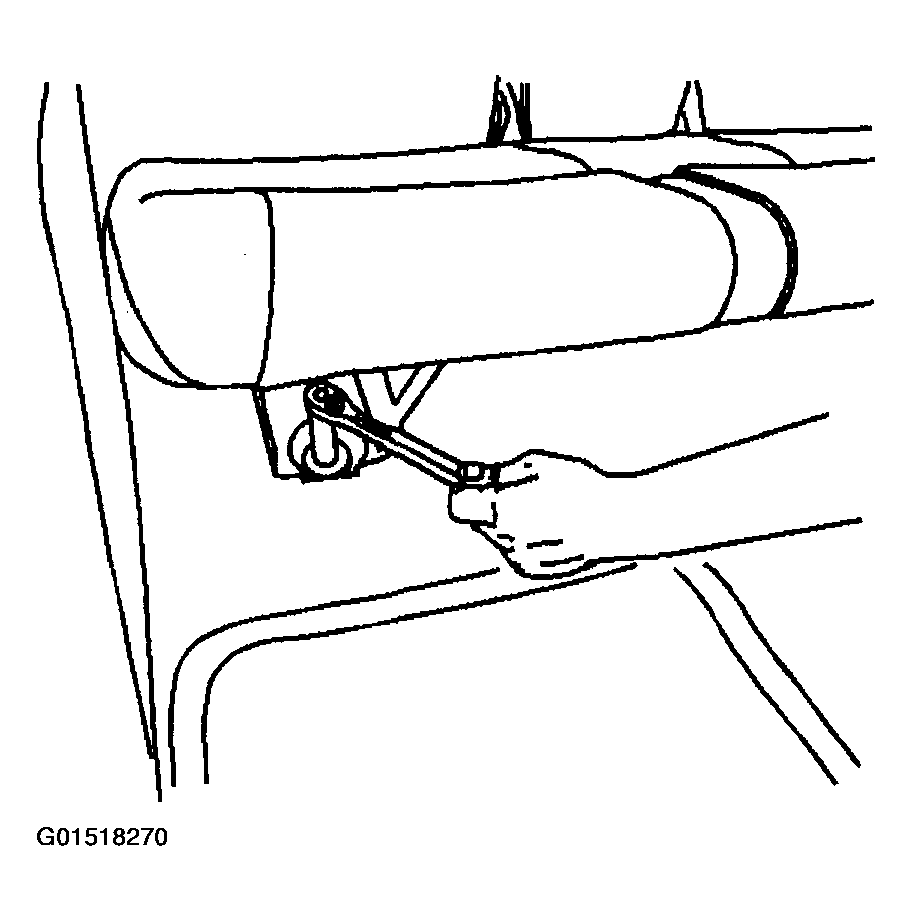

    Fig 2: Installing Front Anchor Nuts To Mounting Studs On Rear Seat
    G01518270Courtesy of GENERAL MOTORS CORP.
