Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat cushion to the rear seat frame.
  2. Install the rear seat cushion cover to the rear seat cushion. Refer to SEAT CUSHION COVER REPLACEMENT - REAR (BUCKET)  or SEAT CUSHION COVER REPLACEMENT - REAR (SPLIT BENCH)  .
  3. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (SPLIT BENCH)  or SEAT BACK REPLACEMENT - REAR (BUCKET)  .
  4. Install the rear bucket seat to the vehicle. Refer to SEAT REPLACEMENT - REAR BUCKET  .

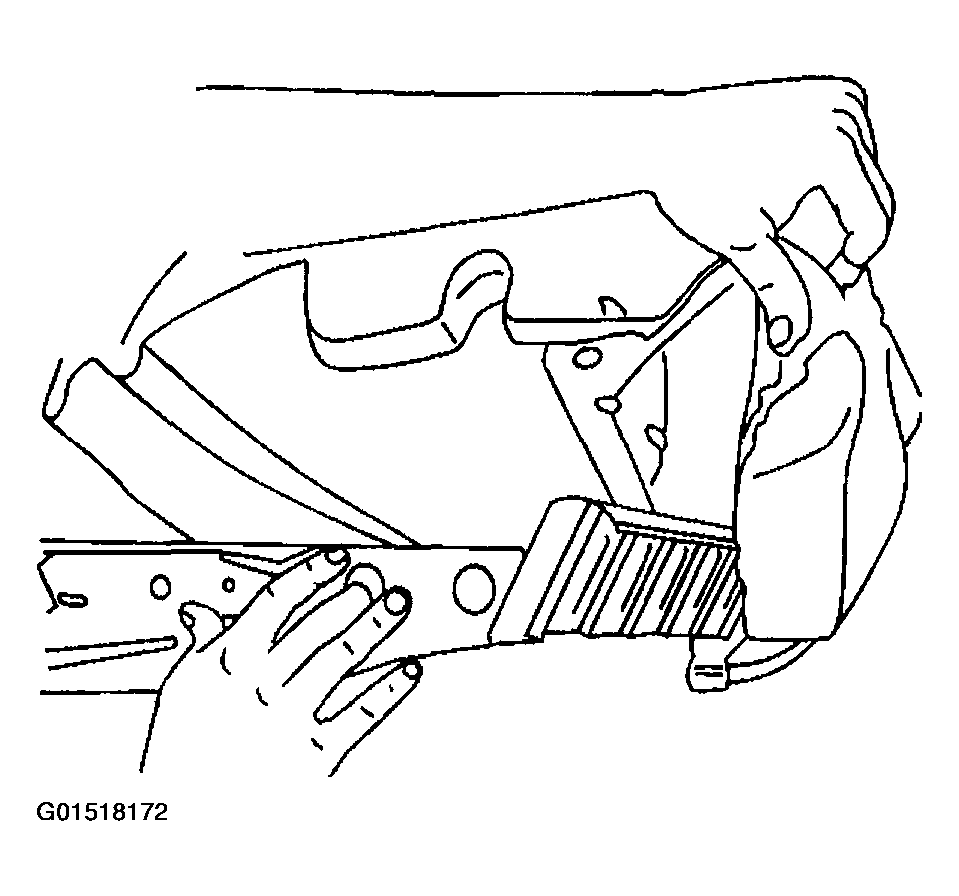

    Fig 1: Installing Rear Seat Cushion To Rear Seat Frame
    G01518172Courtesy of GENERAL MOTORS CORP.
