Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screw from the rear seat cushion trim panel.

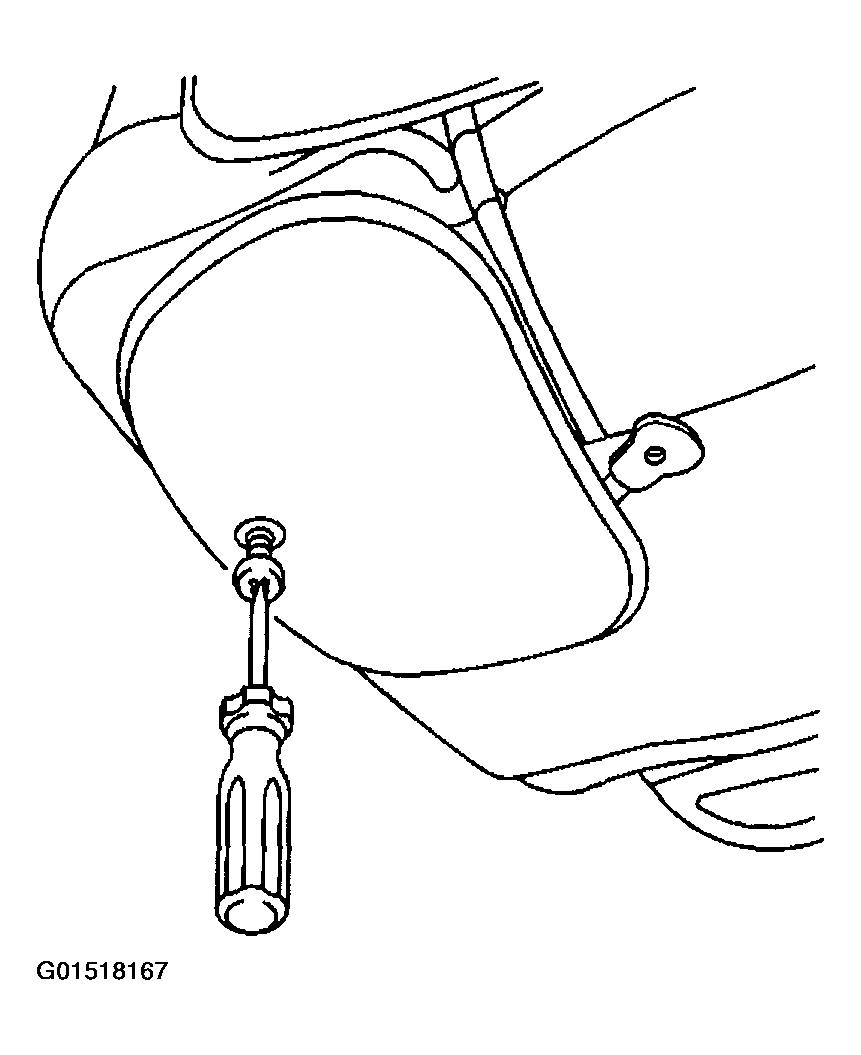

    Fig 1: Removing Screw From Rear Seat Cushion Trim Panel
    G01518167Courtesy of GENERAL MOTORS CORP.
  2. Remove the rear seat cushion trim panel by lifting up to release the retainer from the recliner hinge.

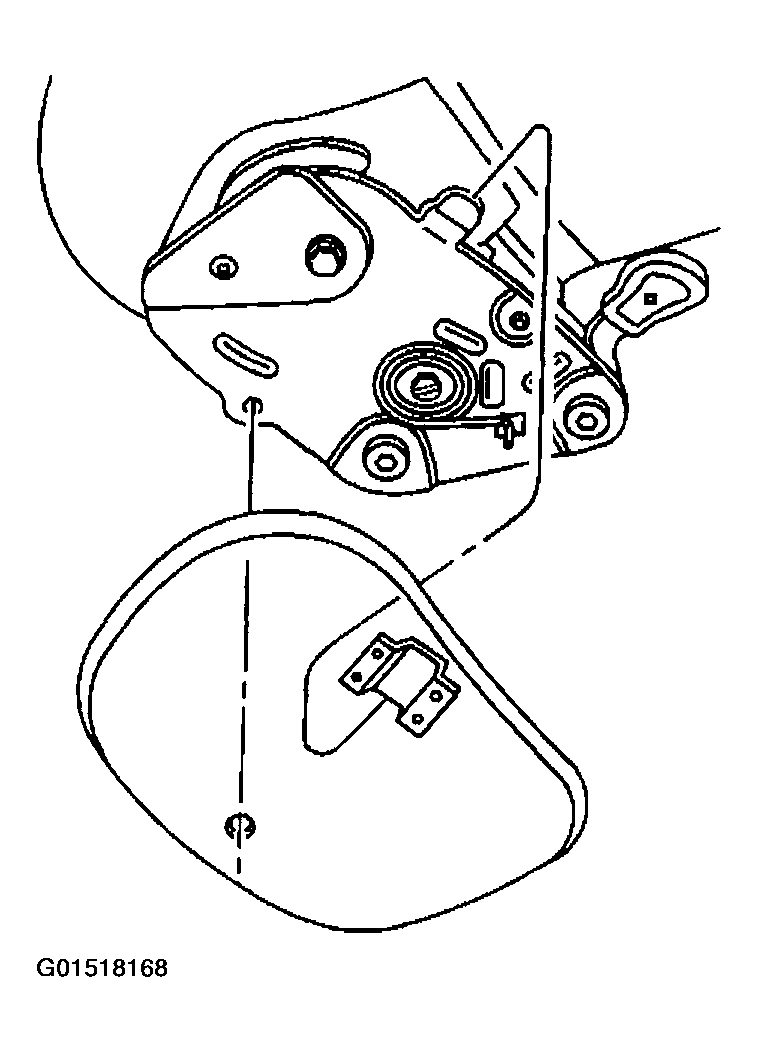

    Fig 2: Removing Rear Seat Cushion Trim Panel
    G01518168Courtesy of GENERAL MOTORS CORP.
