Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat lumbar control knob by pulling off.

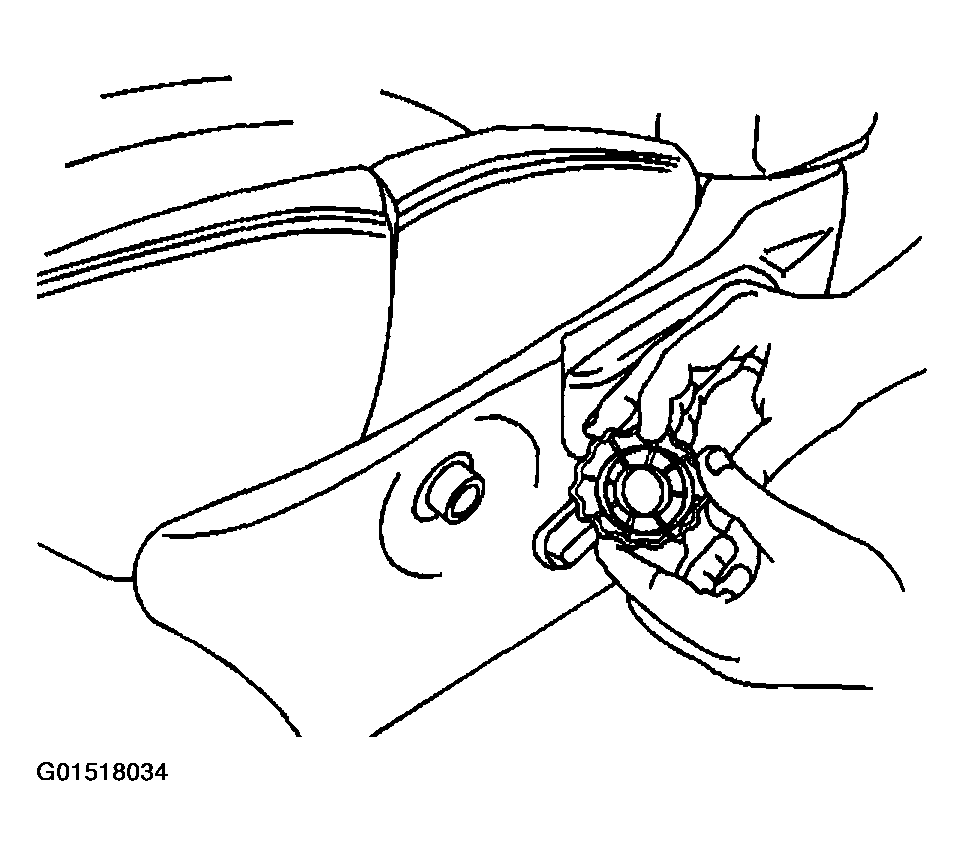

    Fig 1: Removing Front Seat Lumbar Control Knob
    G01518034Courtesy of GENERAL MOTORS CORP.
  2. Remove the front seat back recliner handle. Refer to SEAT BACK RECLINER HANDLE REPLACEMENT - FRONT  .

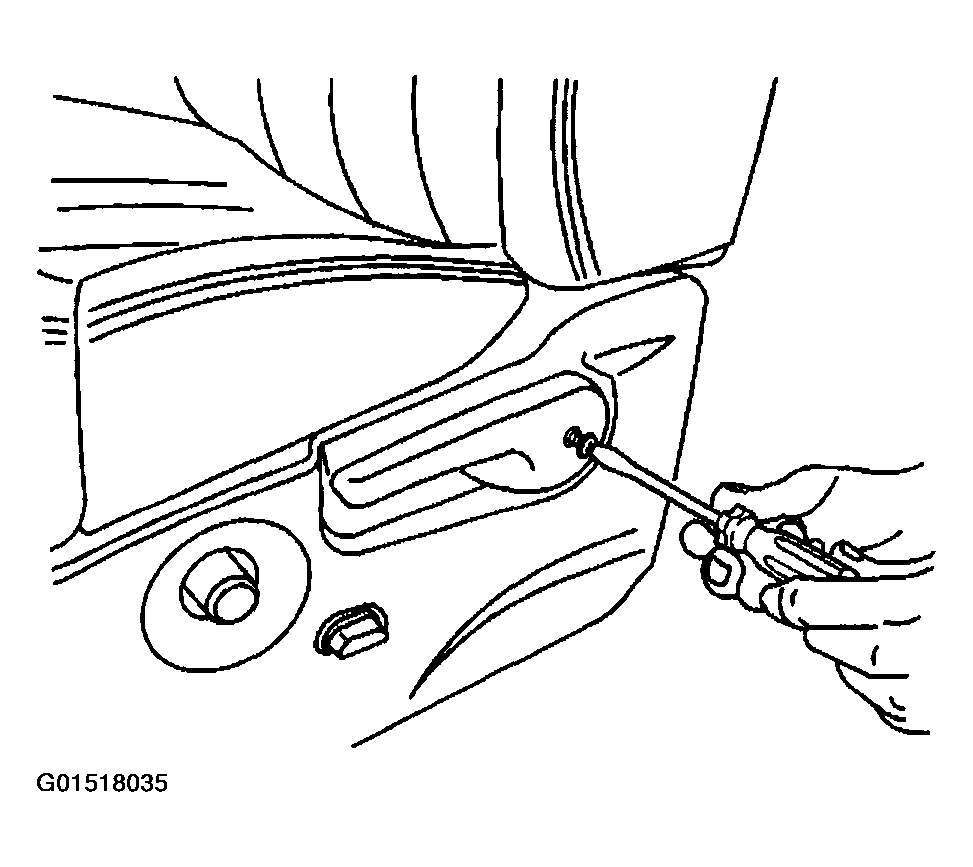

    Fig 2: Removing Front Seat Back Recliner Handle Screw
    G01518035Courtesy of GENERAL MOTORS CORP.
  3. Place the front bucket seat to the most rearward position.
  4. Remove the screw from the rear of the front seat cushion trim panel.

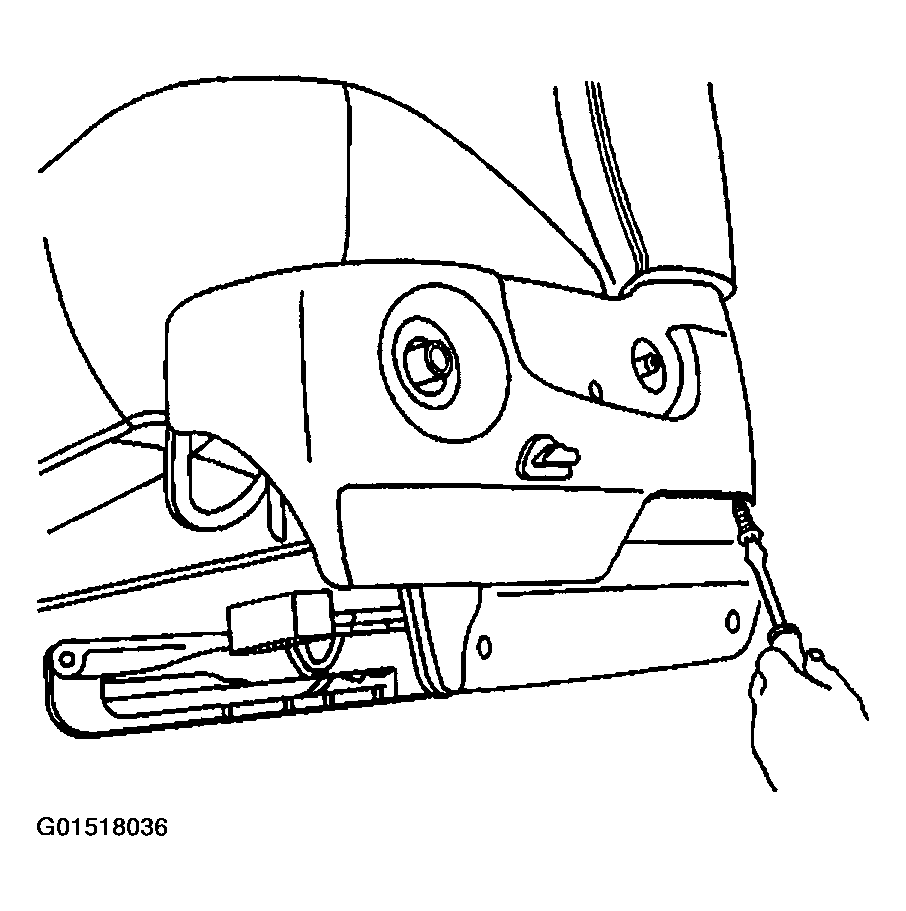

    Fig 3: Removing Screw From Rear Of Front Seat Cushion Trim Panel
    G01518036Courtesy of GENERAL MOTORS CORP.
  5. Place the front bucket seat to the most forward position.
  6. Remove the screw from the front of the front seat cushion trim panel.

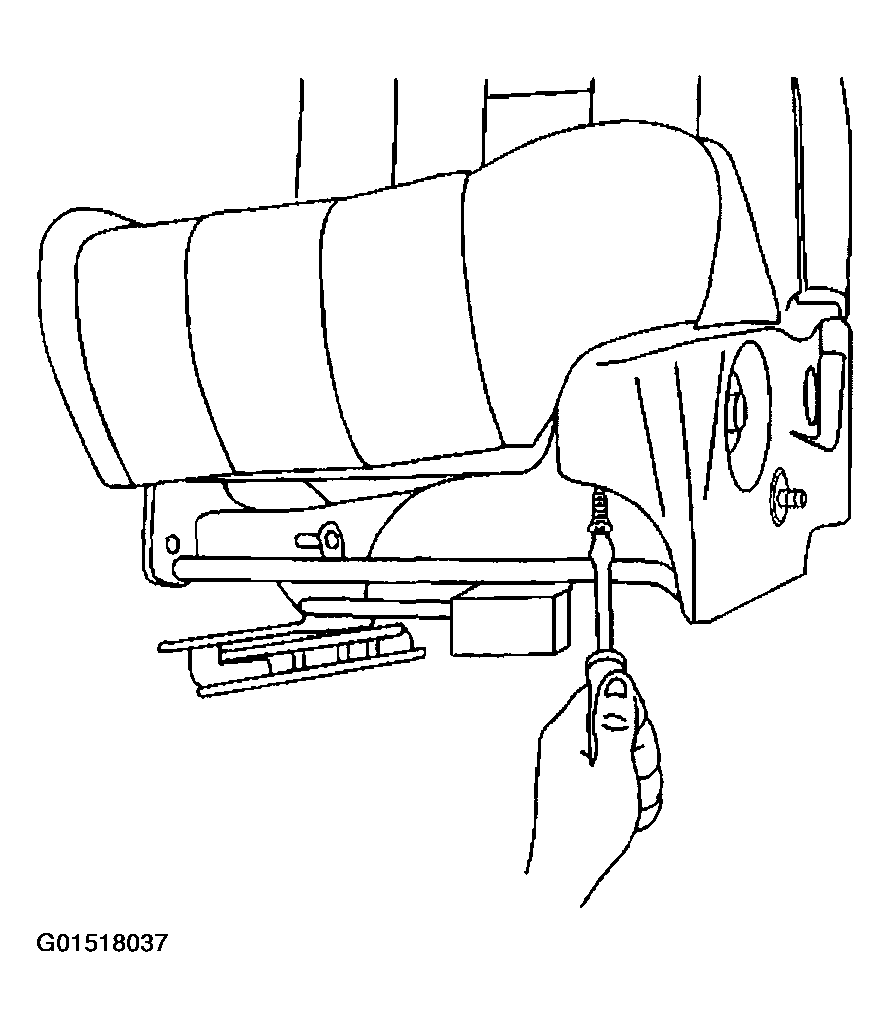

    Fig 4: Removing Screw From Front Of Front Seat Cushion Trim Panel
    G01518037Courtesy of GENERAL MOTORS CORP.
  7. Remove the screw from the center of the front seat cushion trim panel.
  8. Remove the front seat cushion trim panel from the front seat.
  9. Remove the power seat switch form the front seat cushion trim panel, if equipped.
  10. Remove the front seat cushion trim panel from the vehicle.

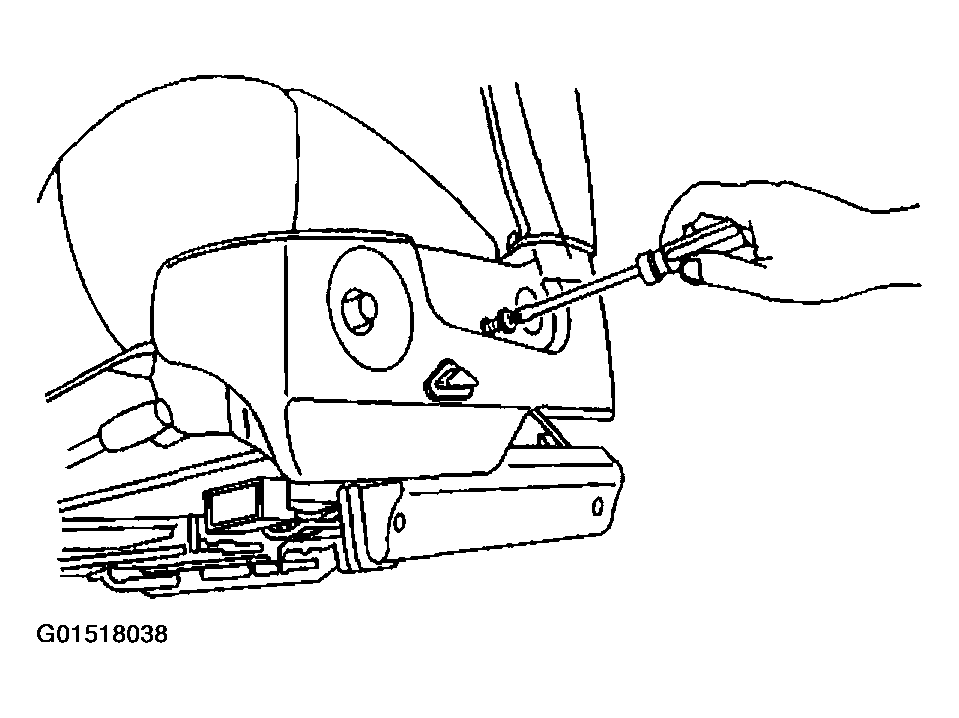

    Fig 5: Removing Screw From Center Of Front Seat Cushion Trim Panel
    G01518038Courtesy of GENERAL MOTORS CORP.
