Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bucket seat from the vehicle. Refer to SEAT REPLACEMENT - BUCKET  .
  2. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (SPLIT BENCH)  or SEAT BACK REPLACEMENT - REAR (BUCKET)  .
  3. Remove the rear seat adjuster. Refer to SEAT ADJUSTER REPLACEMENT - REAR (SPLIT BENCH)  .
  4. Remove the J-hook retainers on the front of the rear seat cushion cover.

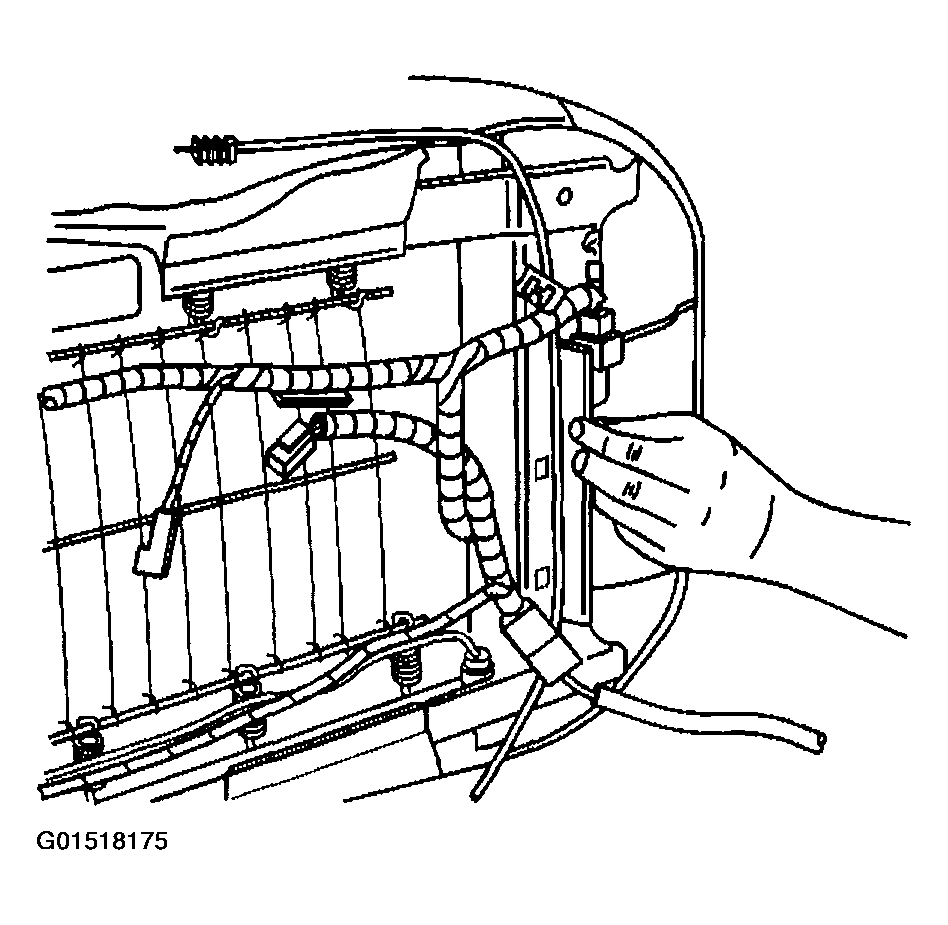

    Fig 1: Removing J-Hook Retainers On Front Of Rear Seat Cushion Cover
    G01518175Courtesy of GENERAL MOTORS CORP.
  5. Remove the J-hook retainers on the sides of the rear seat cushion cover.

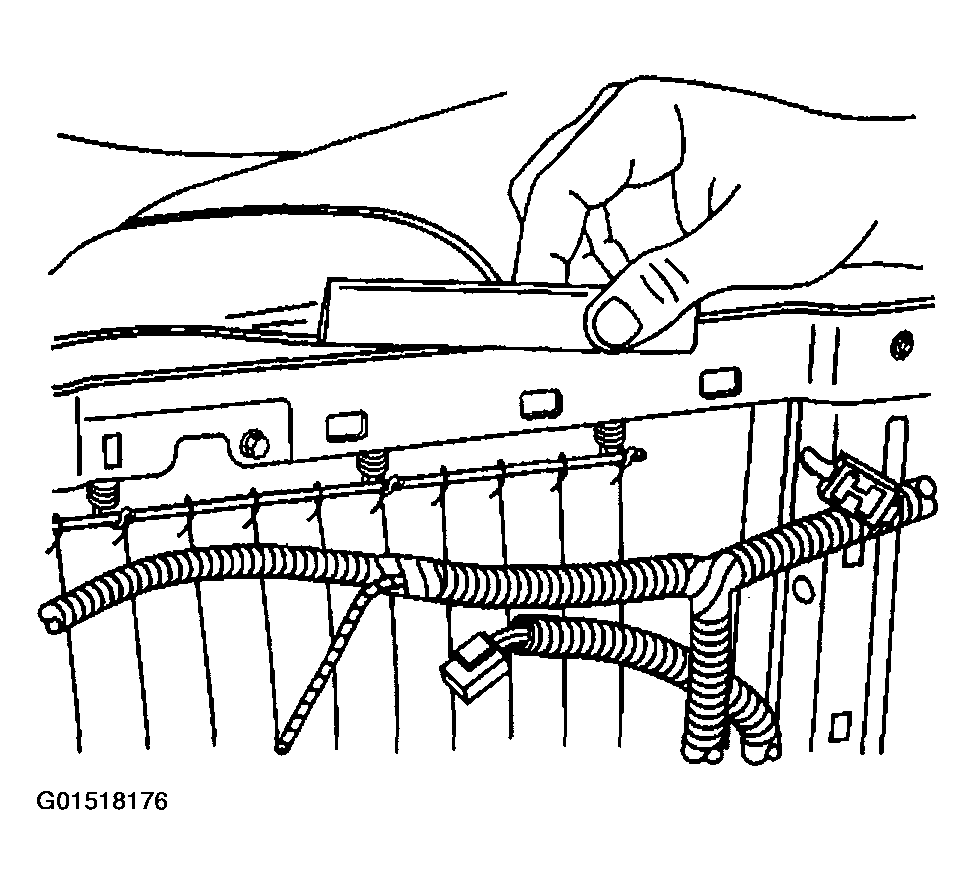

    Fig 2: Removing J-Hook Retainers On Sides Of Rear Seat Cushion Cover
    G01518176Courtesy of GENERAL MOTORS CORP.
  6. Remove the J-hook retainers on the rear of the rear seat cushion cover.

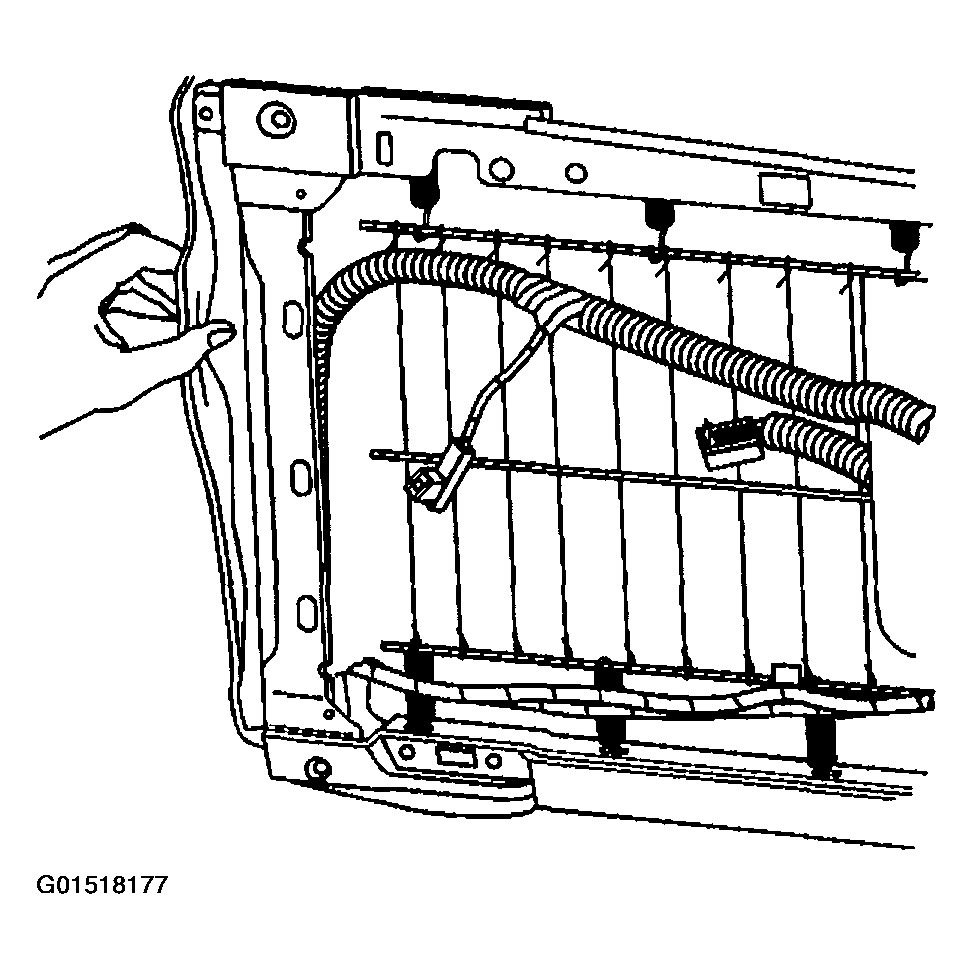

    Fig 3: Removing J-Hook Retainers On Rear Of Rear Seat Cushion Cover
    G01518177Courtesy of GENERAL MOTORS CORP.
  7. Remove the hook and the loop retainers securing the seat cushion cover to the cushion.
    Fig 4: Removing Hook And Loop Retainers
    G01518178Courtesy of GENERAL MOTORS CORP.
  8. Remove the hog rings from the rear seat cushion cover.
  9. Remove the rear seat cushion cover from the rear seat cushion.

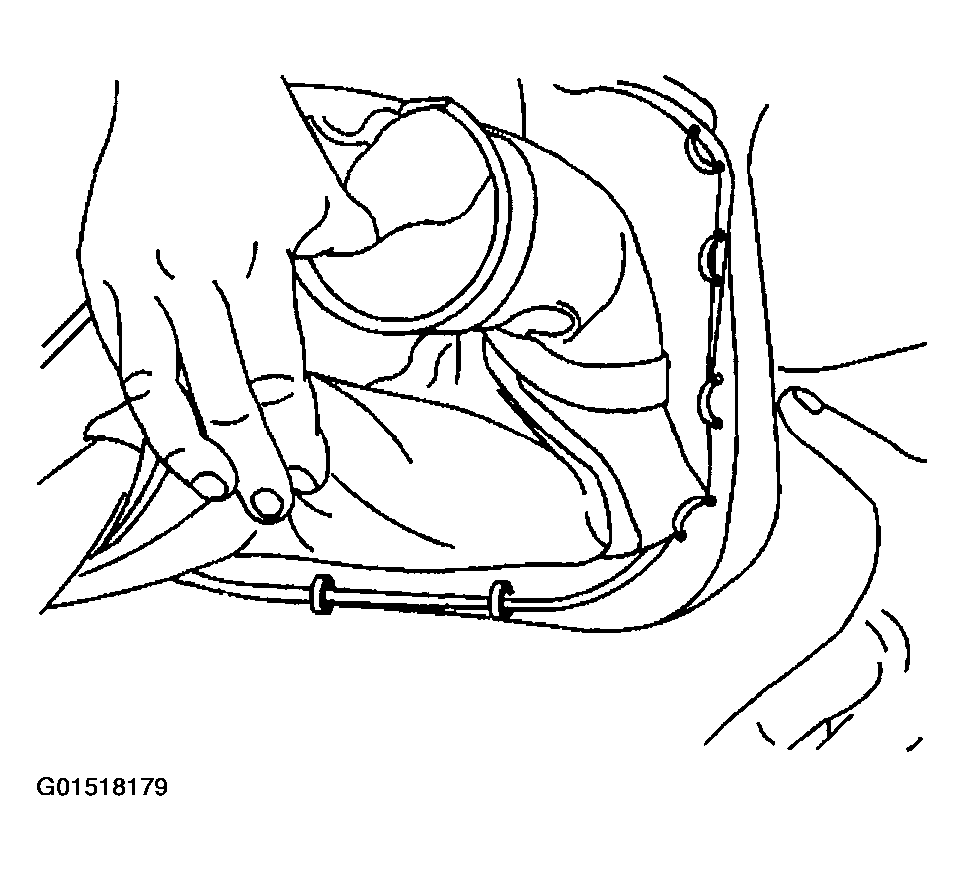

    Fig 5: Removing Rear Seat Cushion Cover From Rear Seat Cushion
    G01518179Courtesy of GENERAL MOTORS CORP.
