Heated Seat Inoperative

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Heated Seat Inoperative Diagnostic (Steps 1-12)
G01518016Courtesy of GENERAL MOTORS CORP.

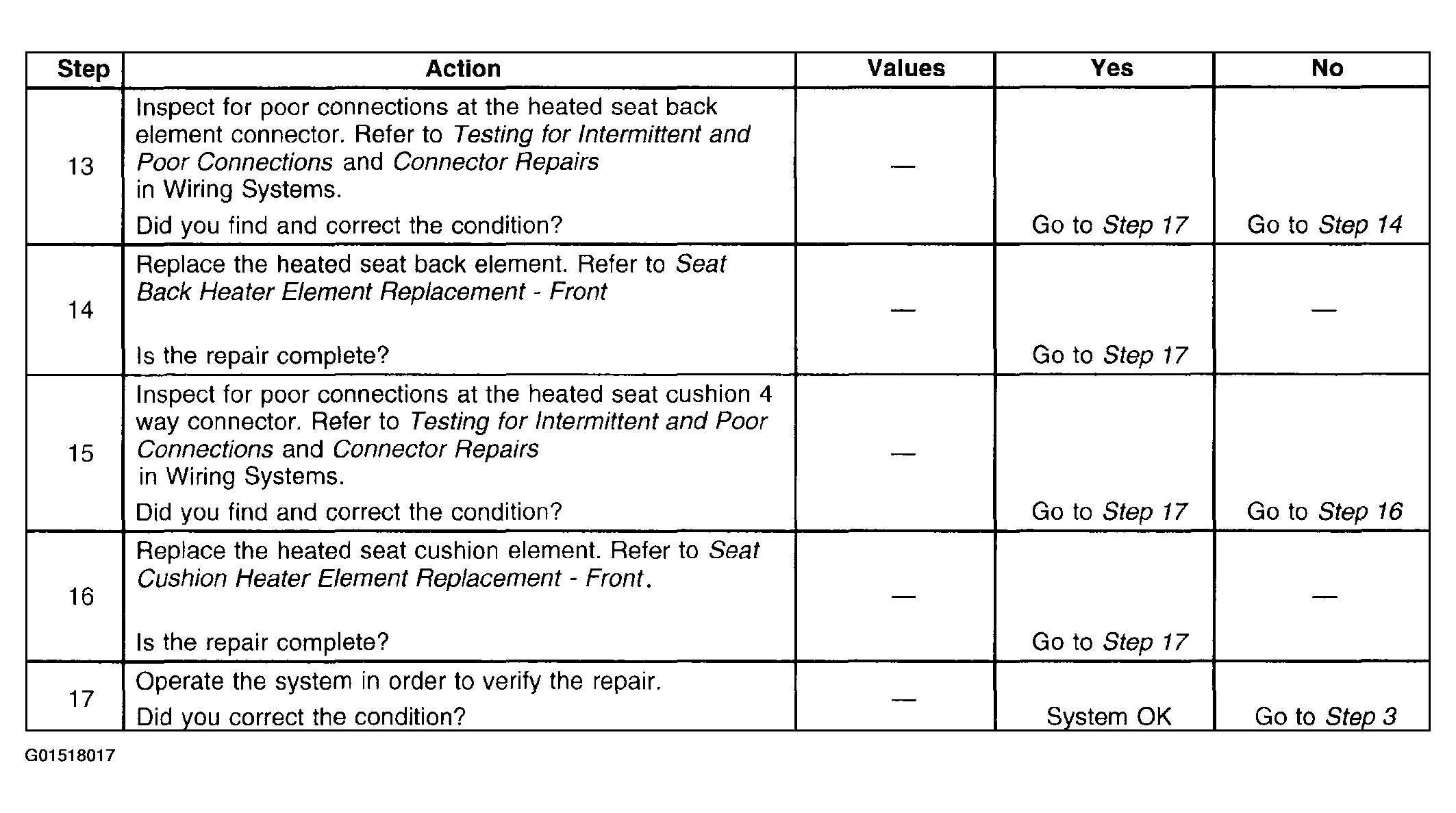

Fig 2: Heated Seat Inoperative Diagnostic (Steps 13-17)
G01518017Courtesy of GENERAL MOTORS CORP.
