Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the floor shifter in the Drive position.
  2. Remove the front floor console. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (AZTEK)  or TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (RENDEZVOUS)  .
  3. Remove 2 screws from the lower trim plate.
  4. Remove the instrument panel (I/P) accessory trim plate by releasing the retainers.

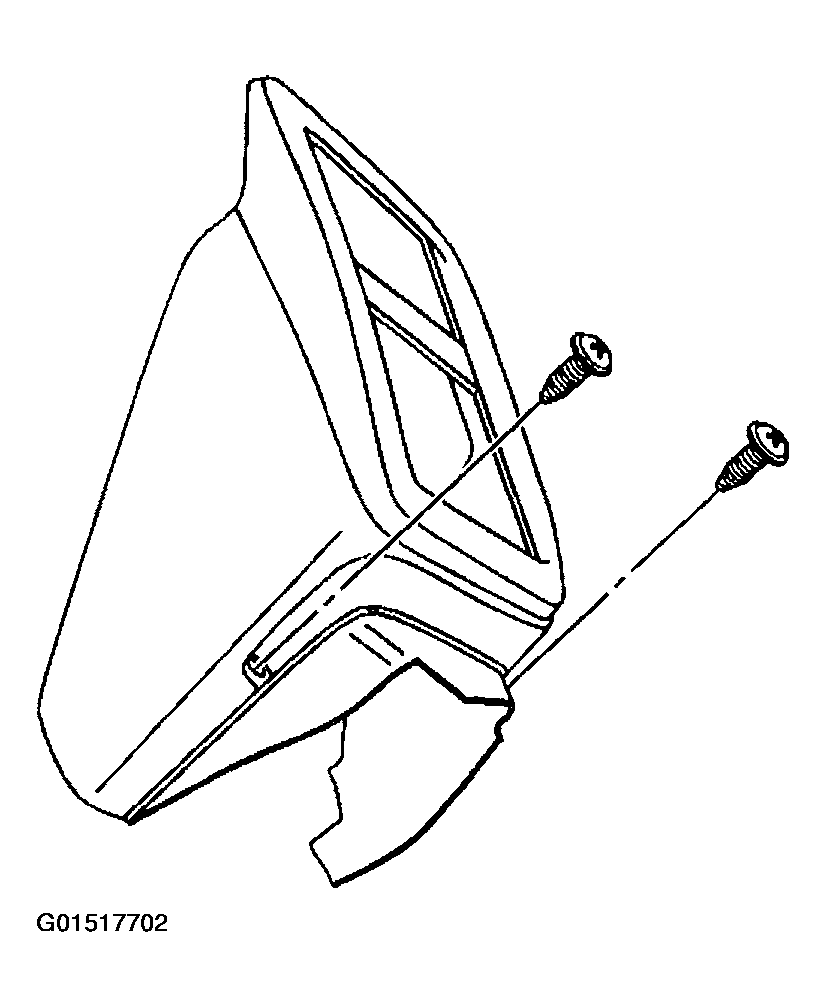

    Fig 1: Removing Instrument Panel Accessory Trim Plate
    G01517702Courtesy of GENERAL MOTORS CORP.
