Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the tabs on the IP trim cover to slots in the IP retainers.

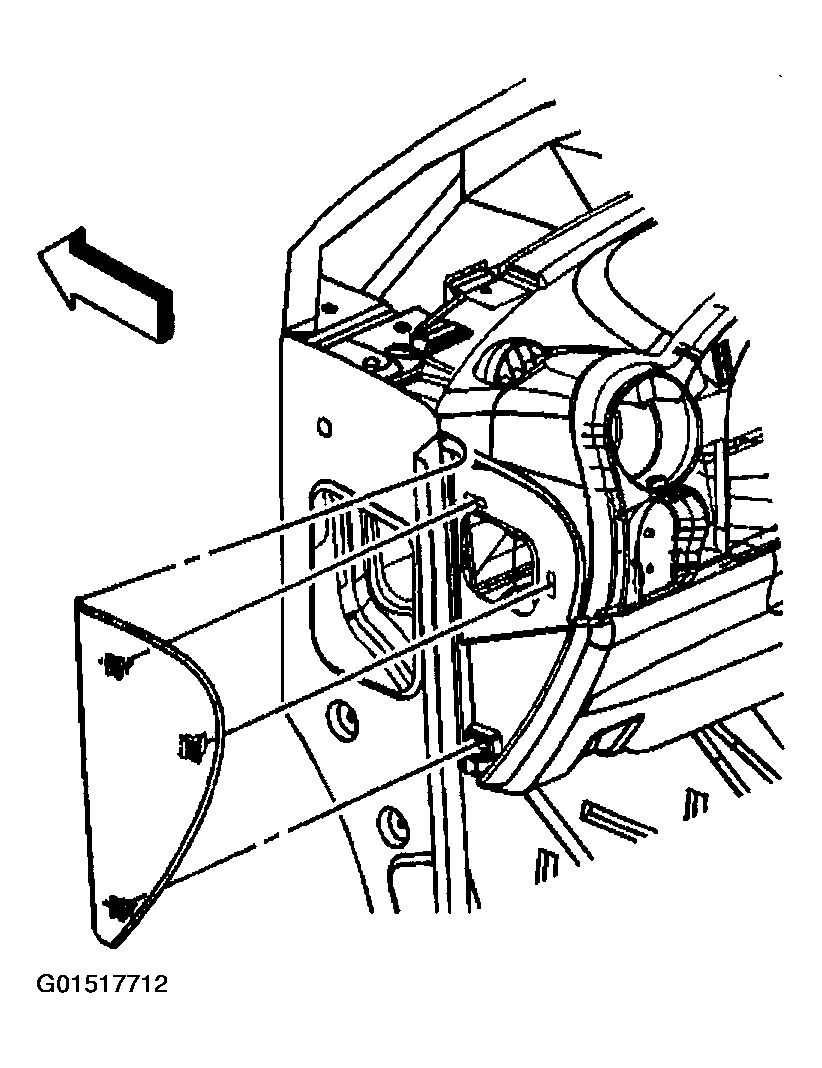

    Fig 1: Aligning Tabs On IP Trim Cover To Slots In IP Retainers
    G01517712Courtesy of GENERAL MOTORS CORP.
  2. Install the IP trim cover by pressing into the retainers until fully seated.

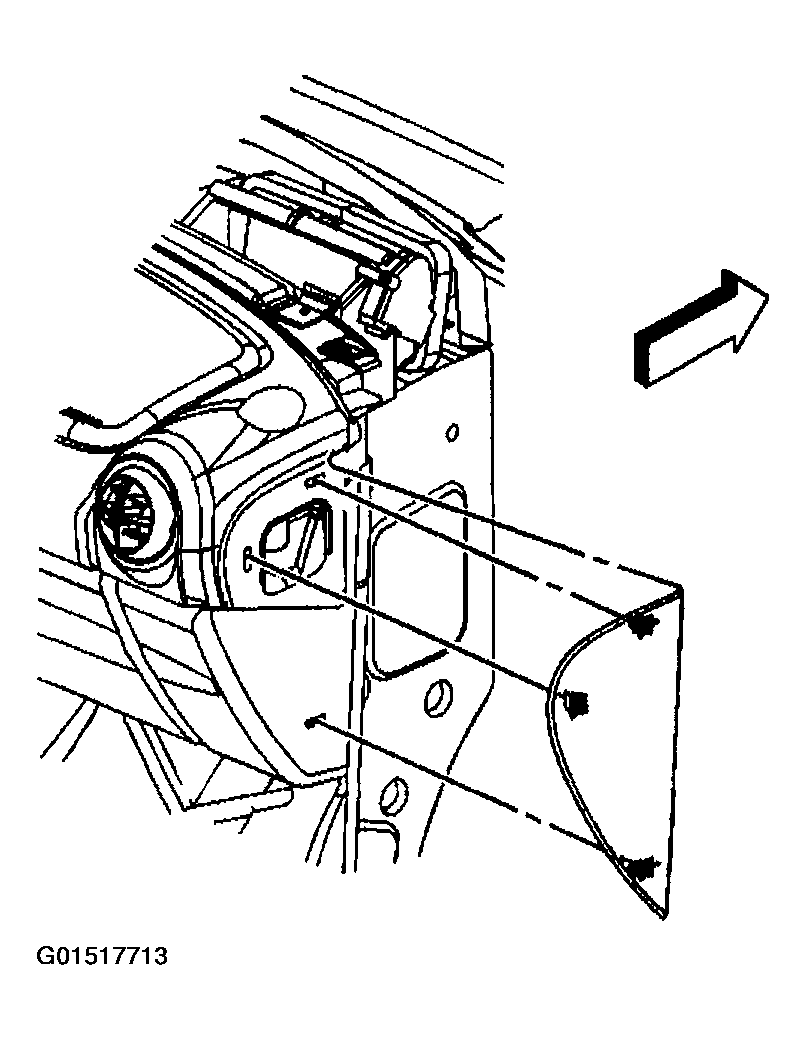

    Fig 2: Installing IP Trim Cover
    G01517713Courtesy of GENERAL MOTORS CORP.
