Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a small, Flat Based Tool to remove the driver information center, head up display switch from the cluster trim plate.

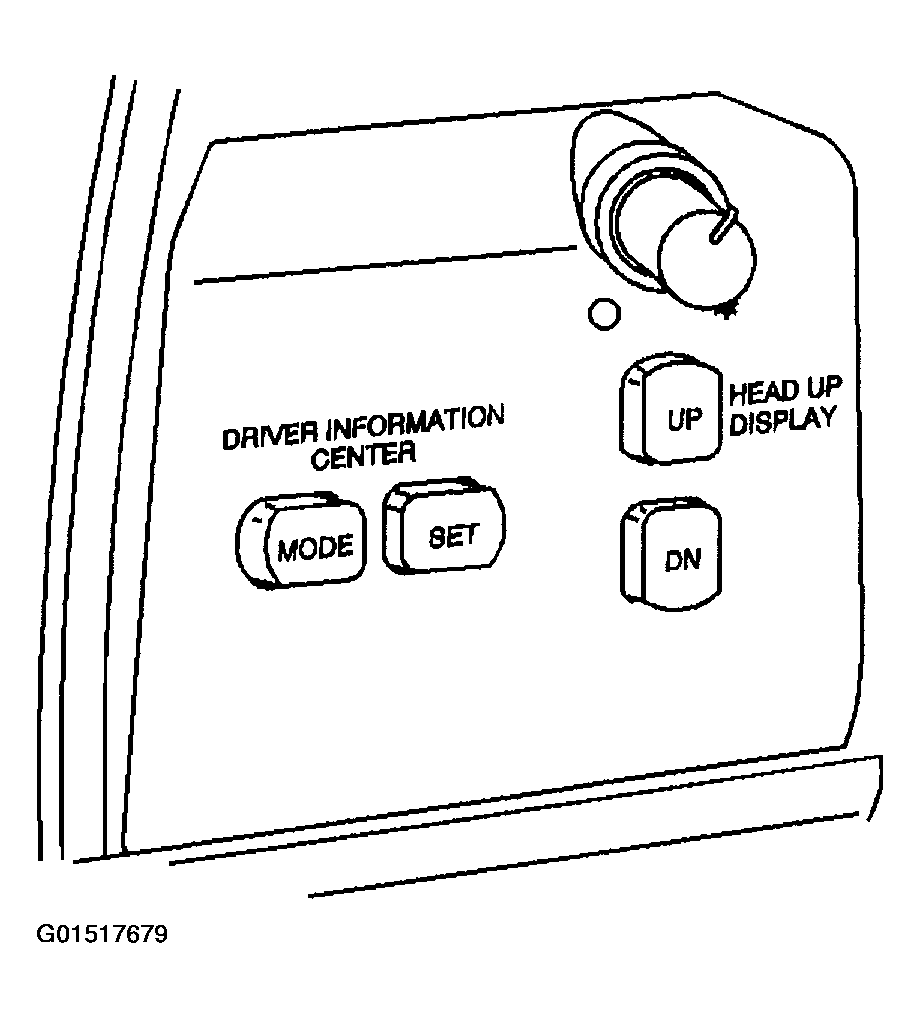

    Fig 1: Removing Driver Information Center, Head Up Display Switch From Cluster Trim Plate
    G01517679Courtesy of GENERAL MOTORS CORP.
  2. Remove the electrical connectors from the switch.
  3. Remove the switch.

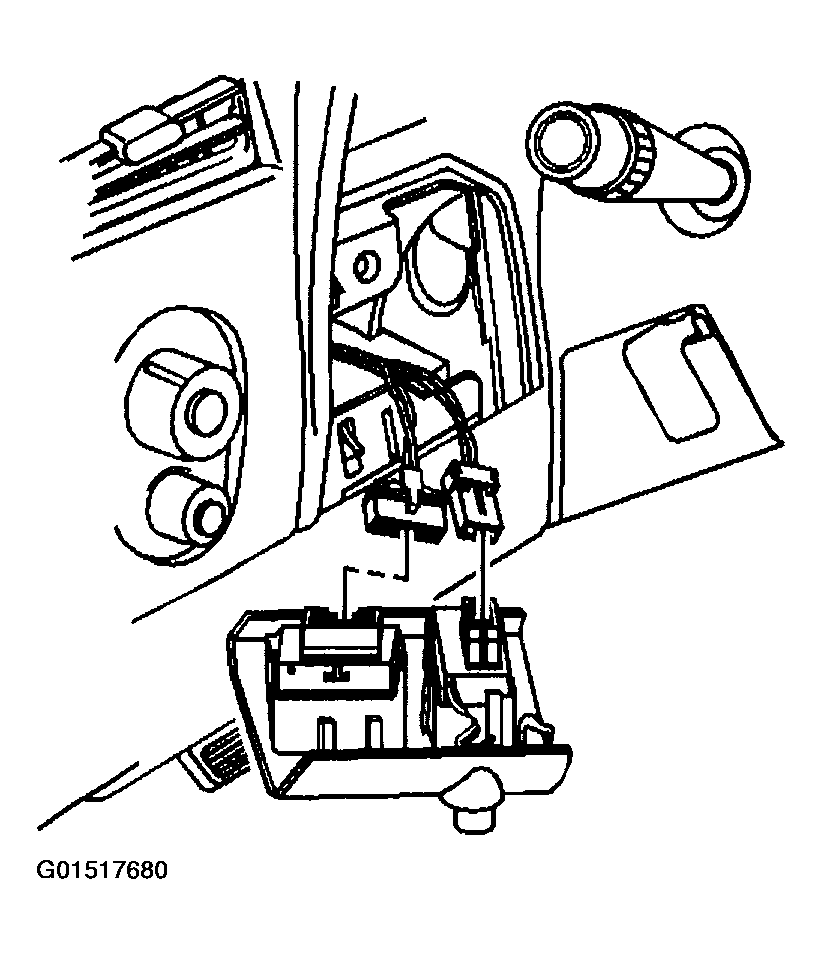

    Fig 2: Removing Electrical Connectors From Switch
    G01517680Courtesy of GENERAL MOTORS CORP.
