Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the push-in retainers from the IP insulator to instrument panel.
  2. Remove the press-on retainers from the IP insulator to dash mat.

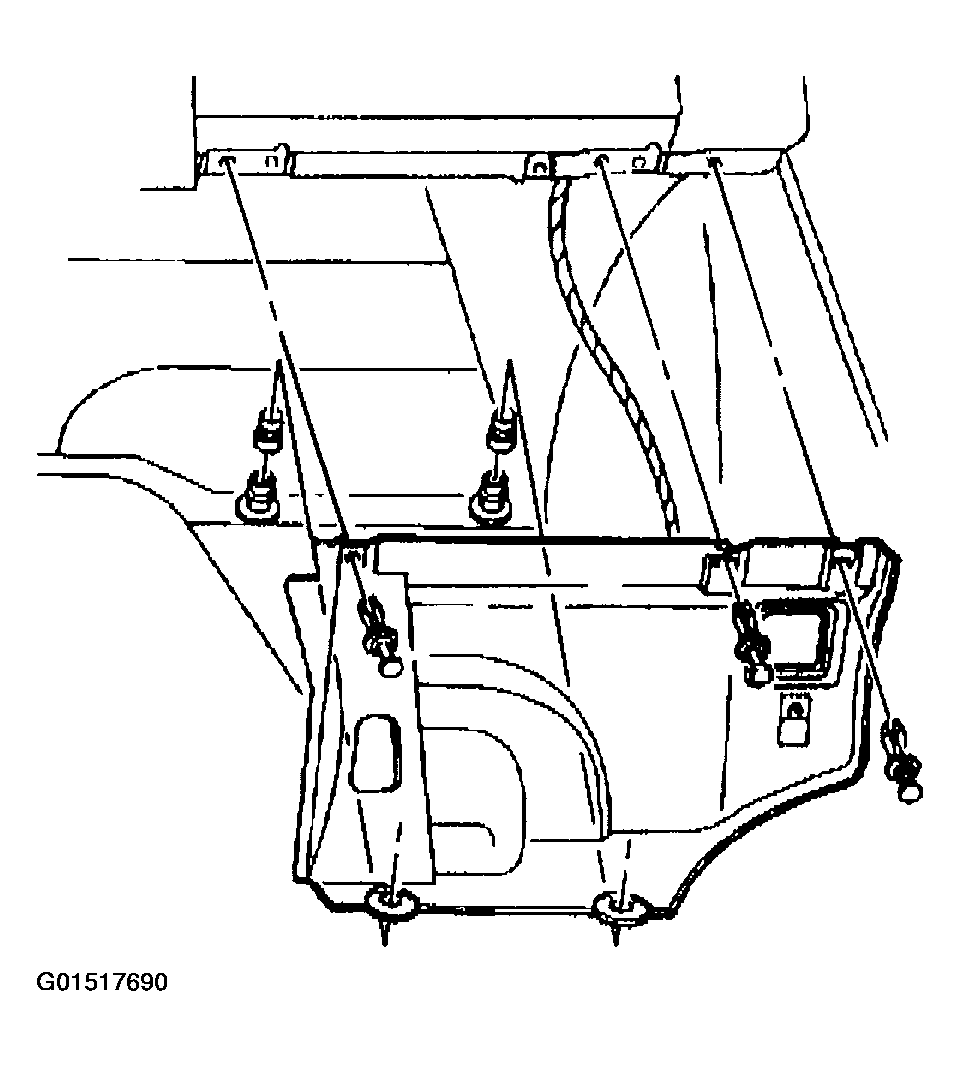

    Fig 1: Removing Retainers From IP Insulator To Instrument Panel
    G01517690Courtesy of GENERAL MOTORS CORP.
  3. Unsnap the IP courtesy lamp from the IP insulator.

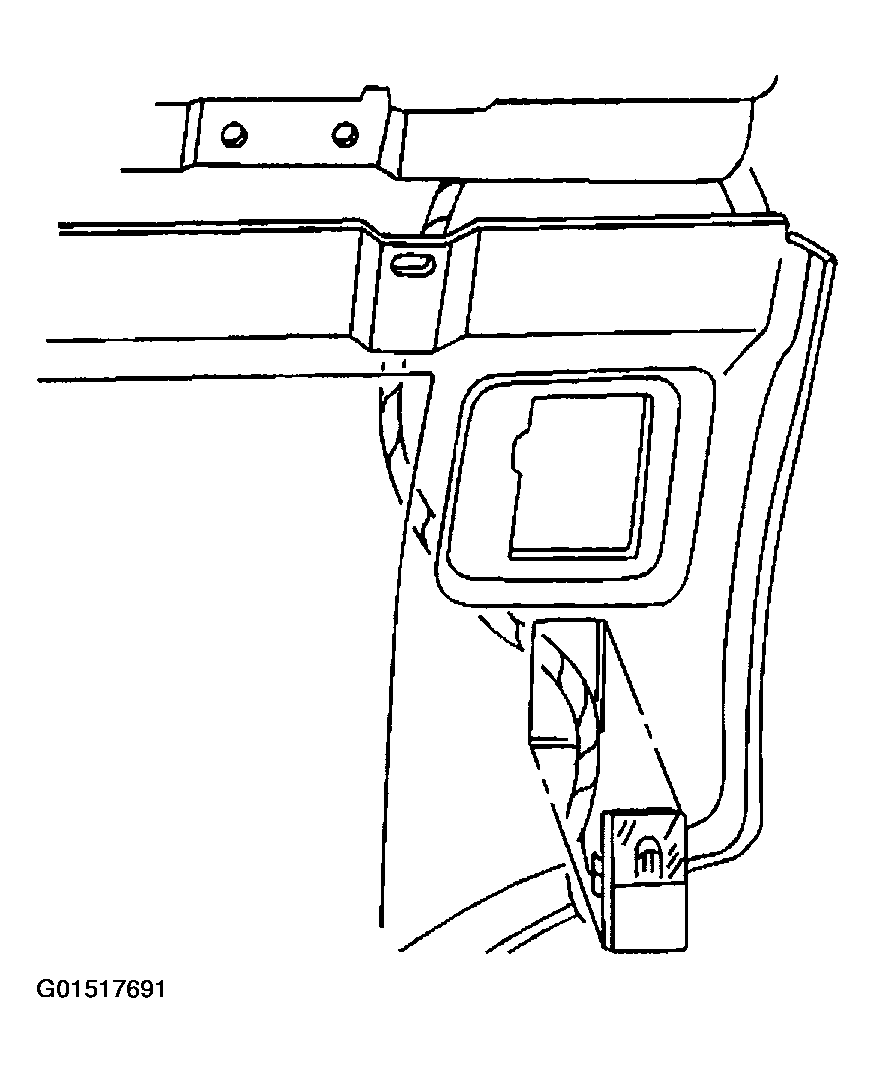

    Fig 2: Unsnapping IP Courtesy Lamp From IP Insulator
    G01517691Courtesy of GENERAL MOTORS CORP.
  4. Remove the IP insulator from the instrument panel.

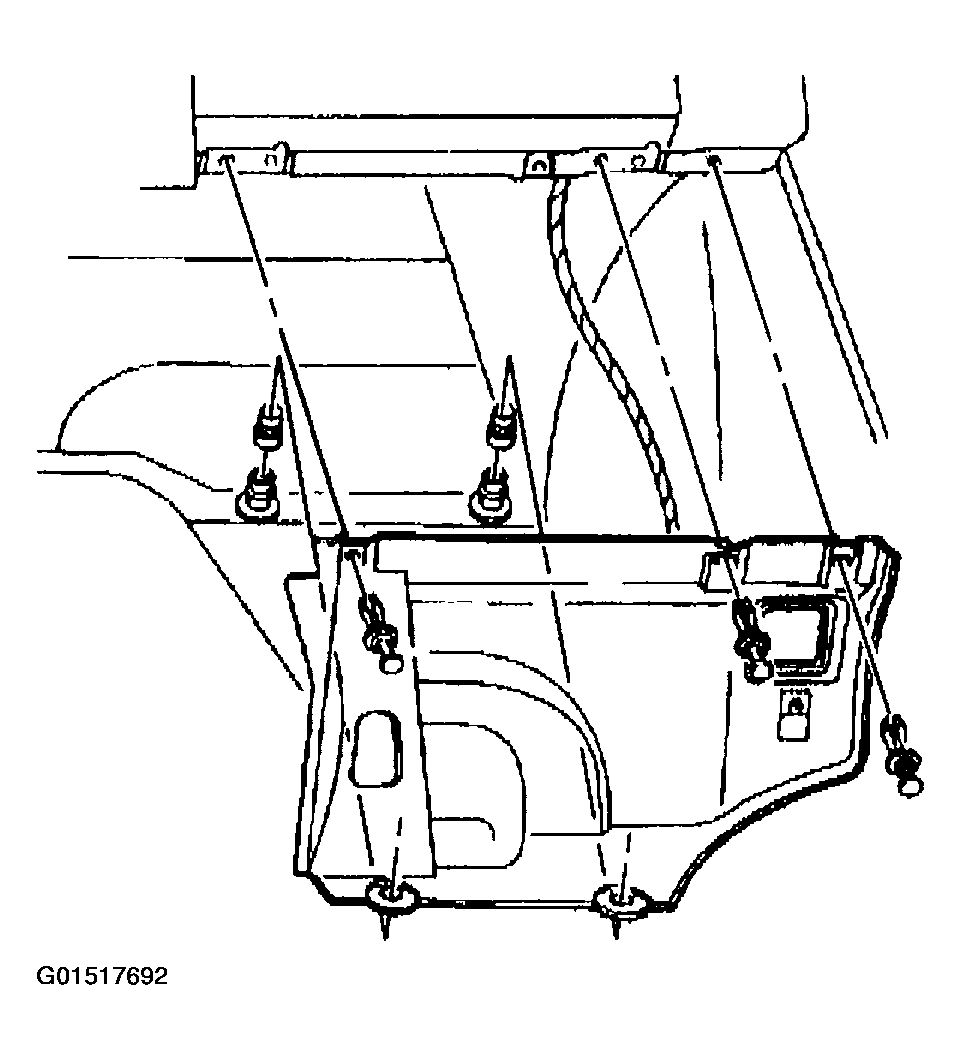

    Fig 3: Removing IP Insulator From Instrument Panel
    G01517692Courtesy of GENERAL MOTORS CORP.
