Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cigar lighter fuse.
  2. Place one side of the T-portion of J 42059  into the tab window and angle the other portion into the opposite tab window. Pull the cigar lighter socket straight out.
  3. Remove the tool from the cigar lighter socket.

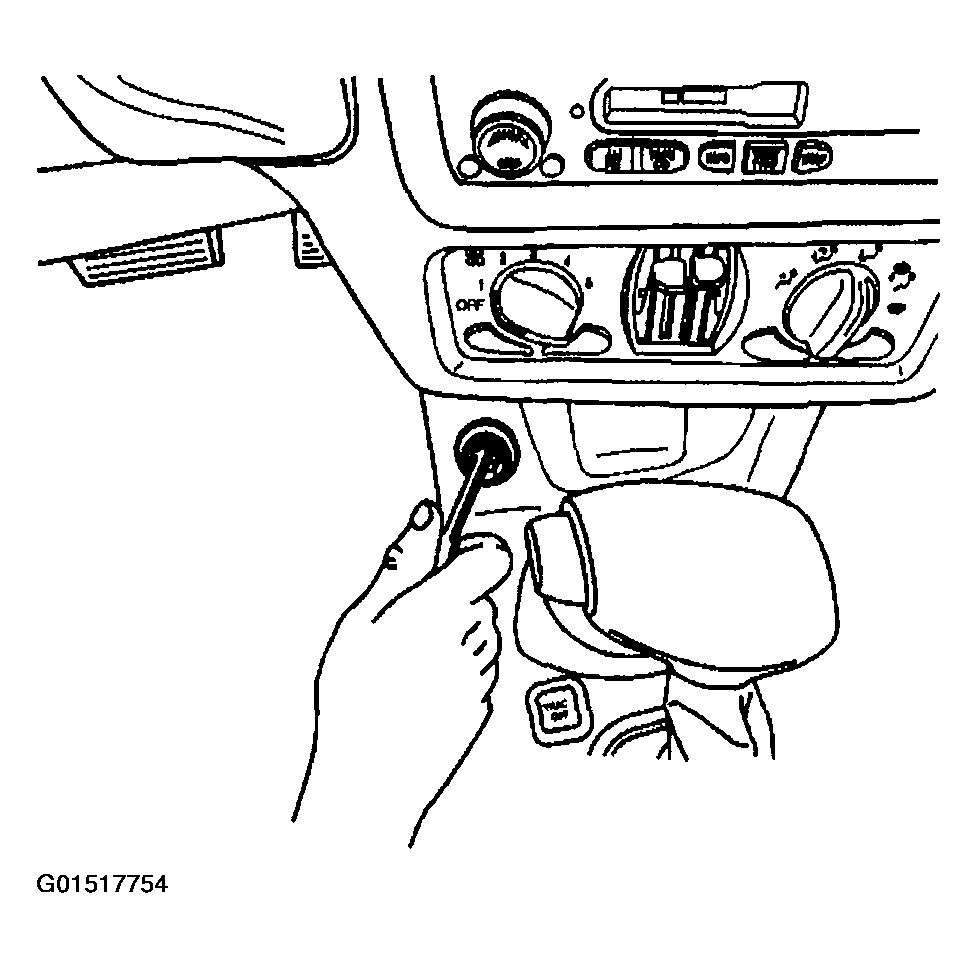

    Fig 1: Removing From Cigar Lighter Socket
    G01517754Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connector from the front console cigar lighter socket.

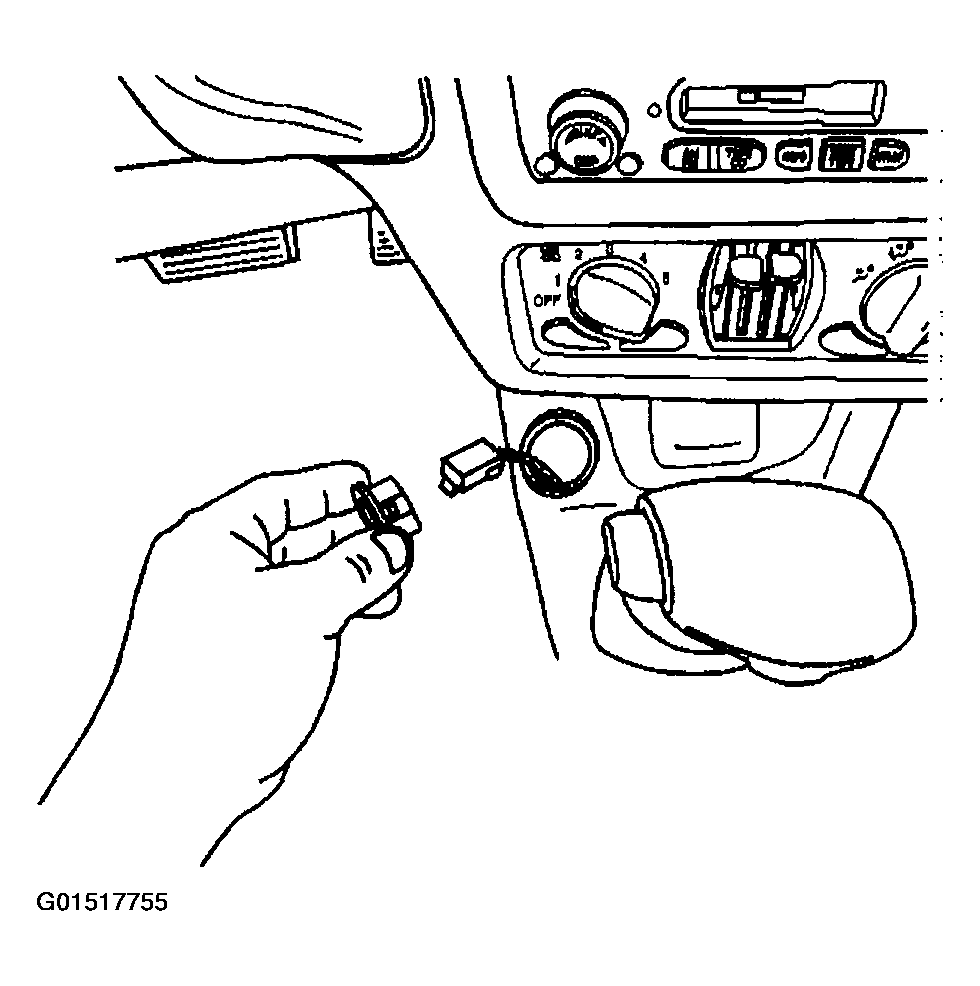

    Fig 2: Disconnecting Electrical Connector From Front Console Cigar Lighter Socket
    G01517755Courtesy of GENERAL MOTORS CORP.
  5. Remove the cigar lighter port retainer by using your index finger and pulling out.

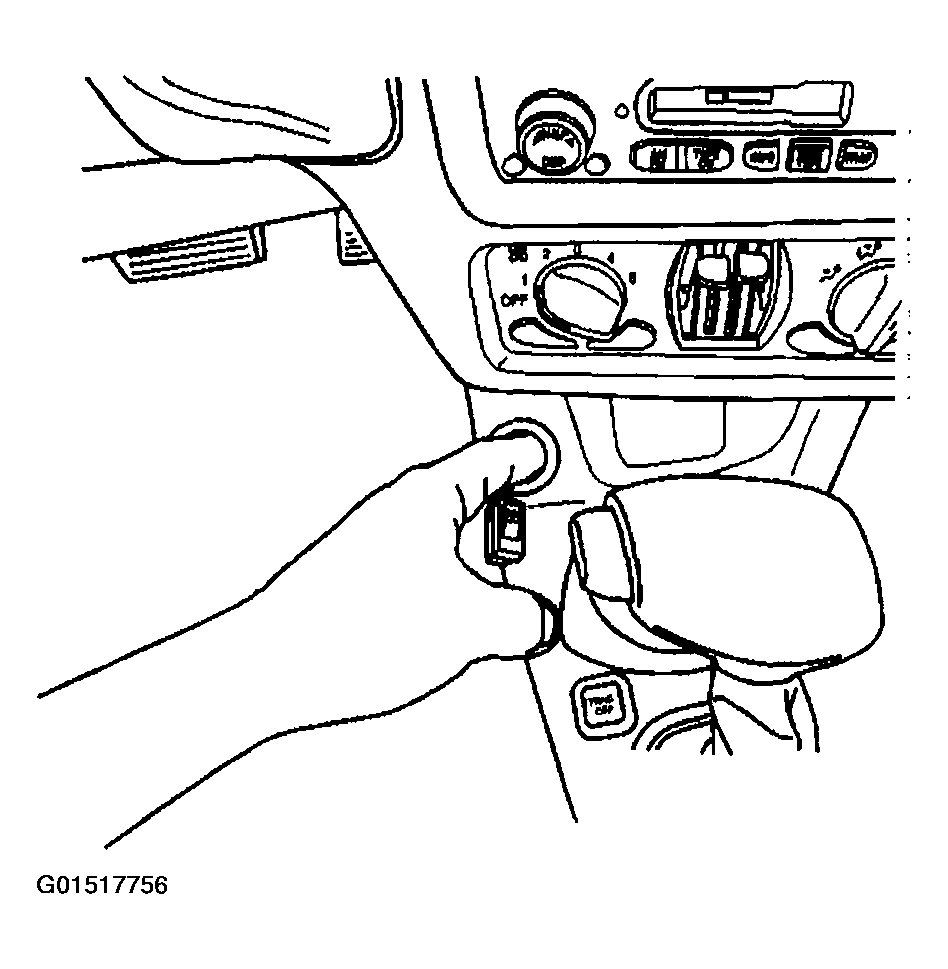

    Fig 3: Removing Cigar Lighter Port Retainer
    G01517756Courtesy of GENERAL MOTORS CORP.
