Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the cigar lighter port retainer, placing the key to the slot into the cigar lighter socket hole.

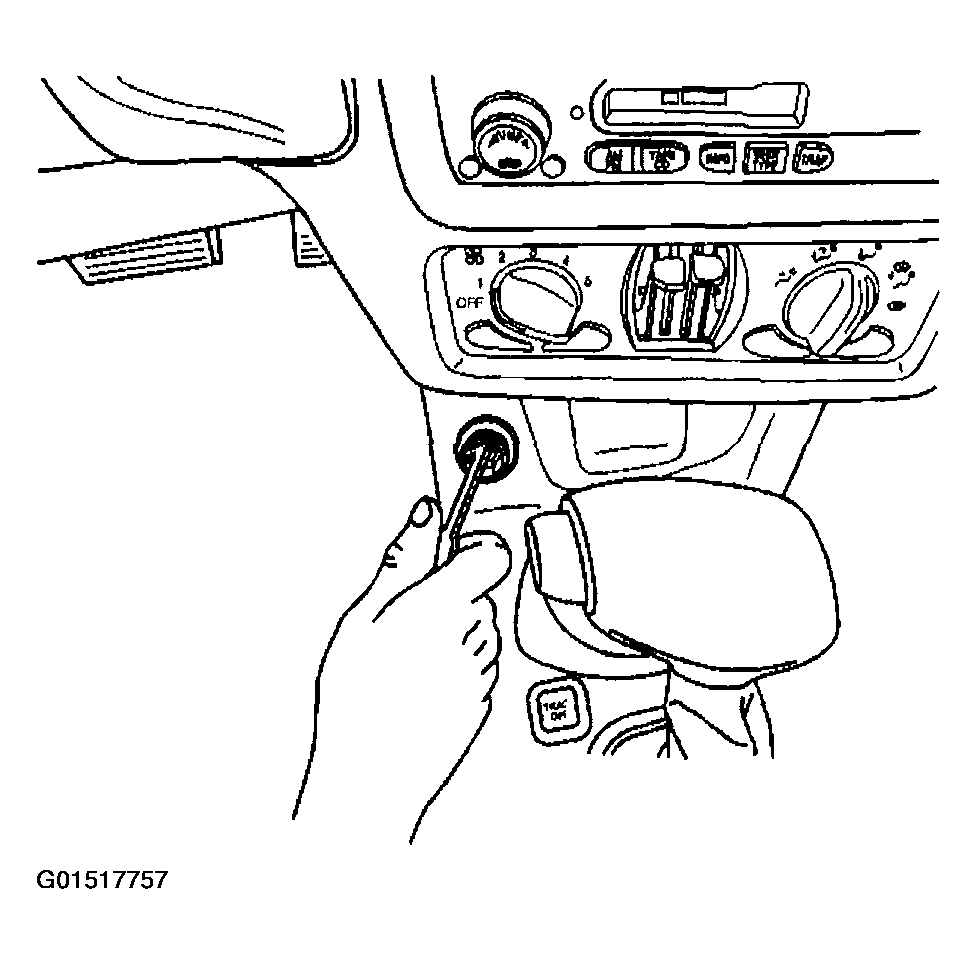

    Fig 1: Positioning Cigar Lighter Port Retainer
    G01517757Courtesy of GENERAL MOTORS CORP.
  2. Install the cigar lighter port retainer by pressing into place until fully seated.

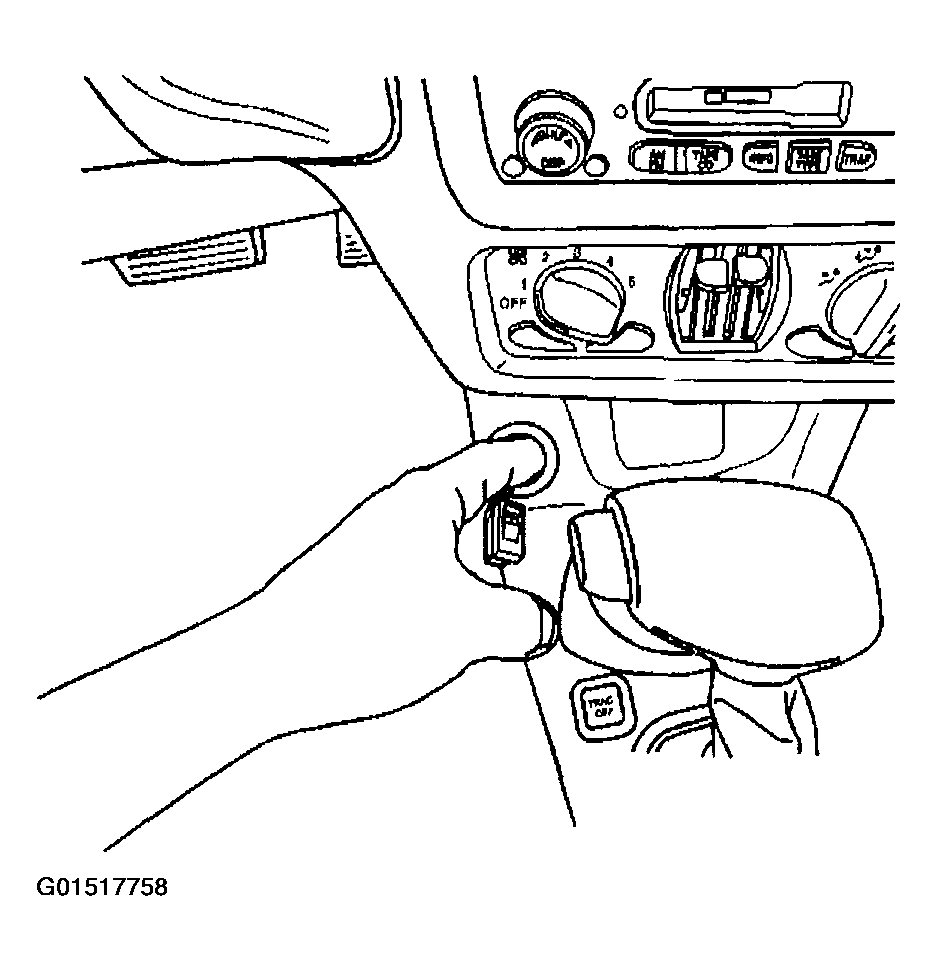

    Fig 2: Installing Cigar Lighter Port Retainer
    G01517758Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the cigar lighter socket.
  4. Position the cigar lighter socket to the retainer.
  5. Install the cigar lighter socket into the front console. Press into place until fully seated.
  6. Install the cigar lighter fuse.
  7. Inspect the cigar lighter for proper operation.

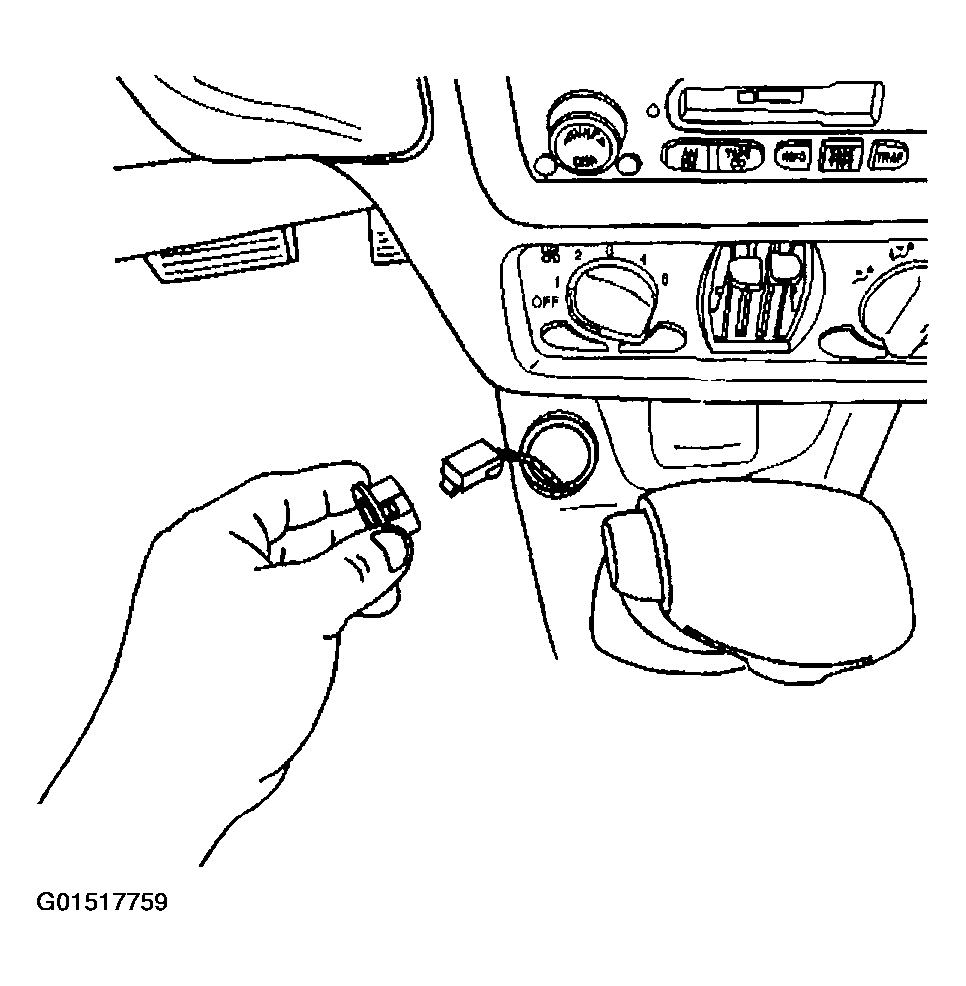

    Fig 3: Connecting Electrical Connector To Cigar Lighter Socket
    G01517759Courtesy of GENERAL MOTORS CORP.
