Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the ambient air temperature gage sensor.
  2. Install the sensor to the electrical harness clip.
  3. Install the clip to the hood latch.
  4. Close the hood.

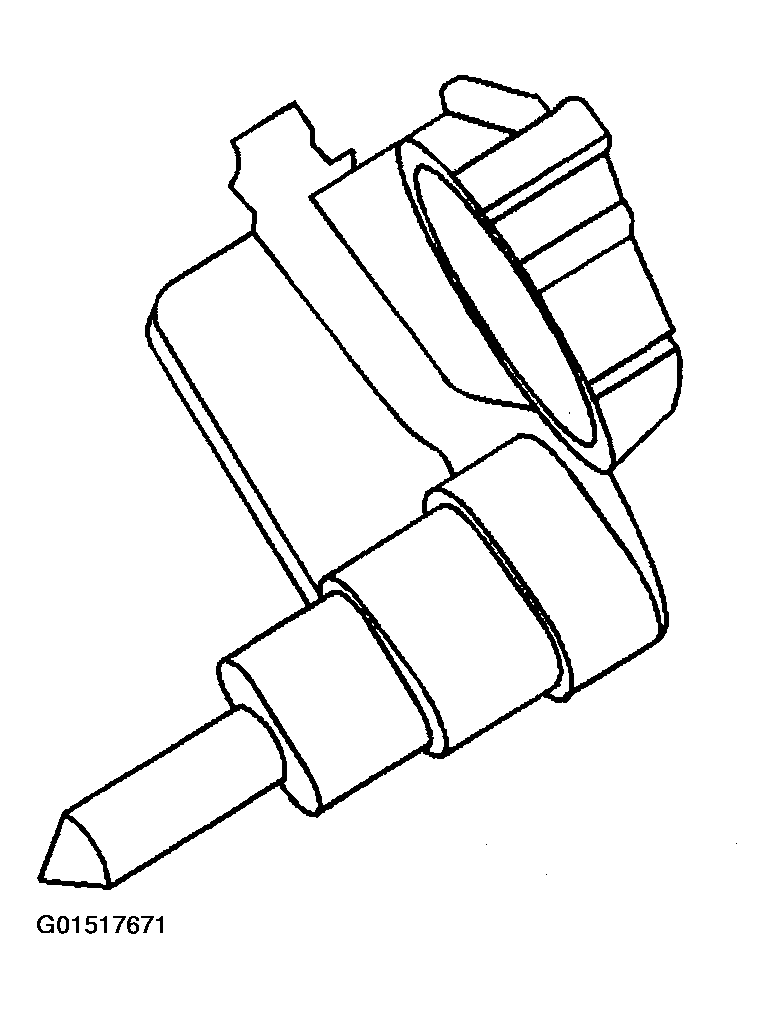

    Fig 1: Installing Ambient Air Temperature Gage Sensor
    G01517671Courtesy of GENERAL MOTORS CORP.
