Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.
Remove the torque converter cover. Refer to TORQUE CONVERTER COVER REPLACEMENT .

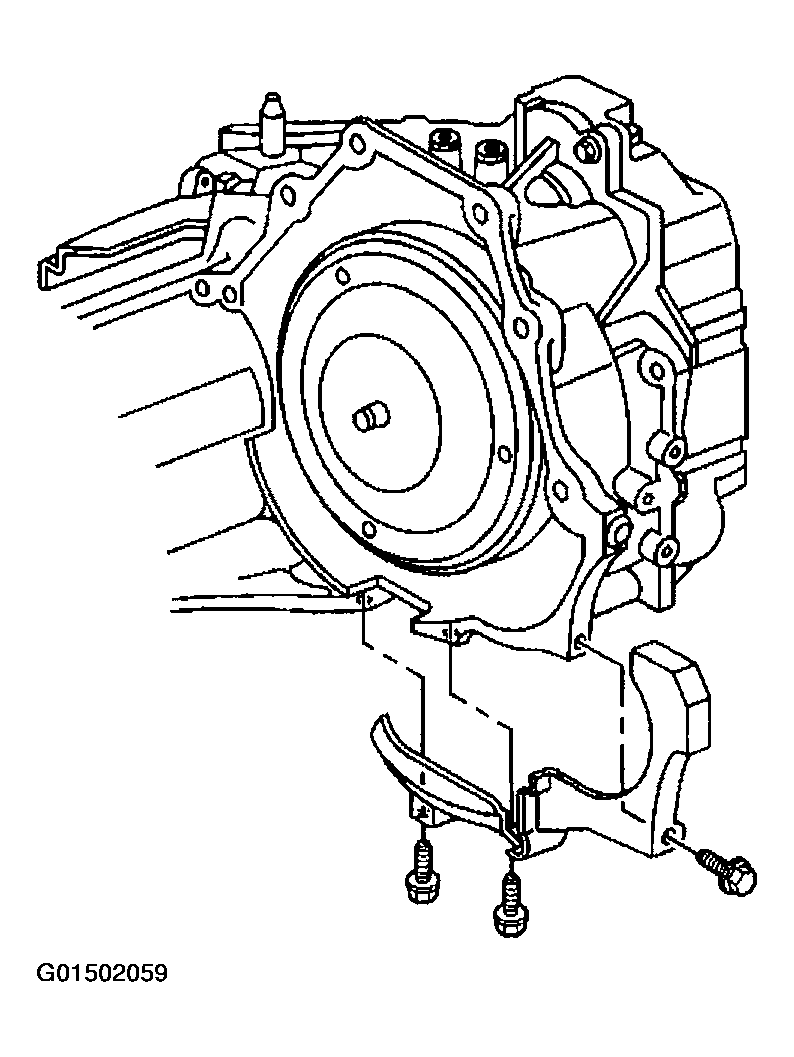

Fig 1: Removing Torque Converter Cover
Courtesy of GENERAL MOTORS CORP.
Use the J 37623 in order to rotate the flywheel and access the torque converter bolts.
Use the J 37623 to hold the flywheel.

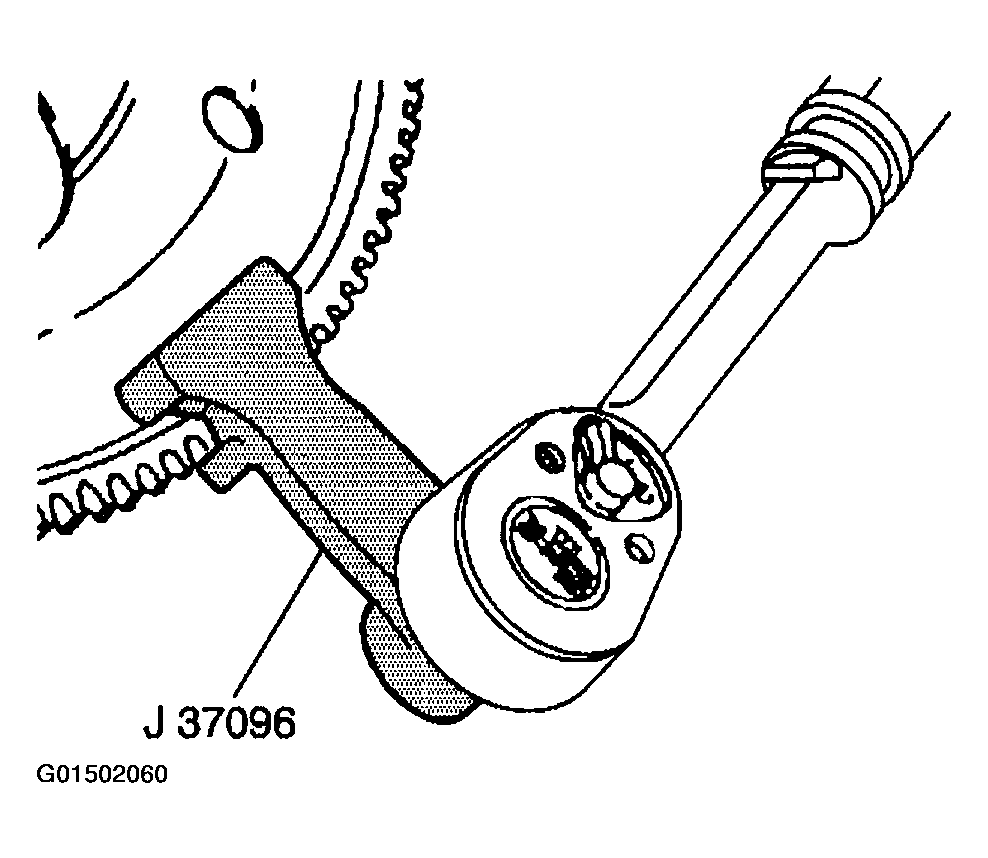

Fig 2: Holding Flywheel Using J 37623
Courtesy of GENERAL MOTORS CORP.
Remove the flywheel to torque converter bolts.

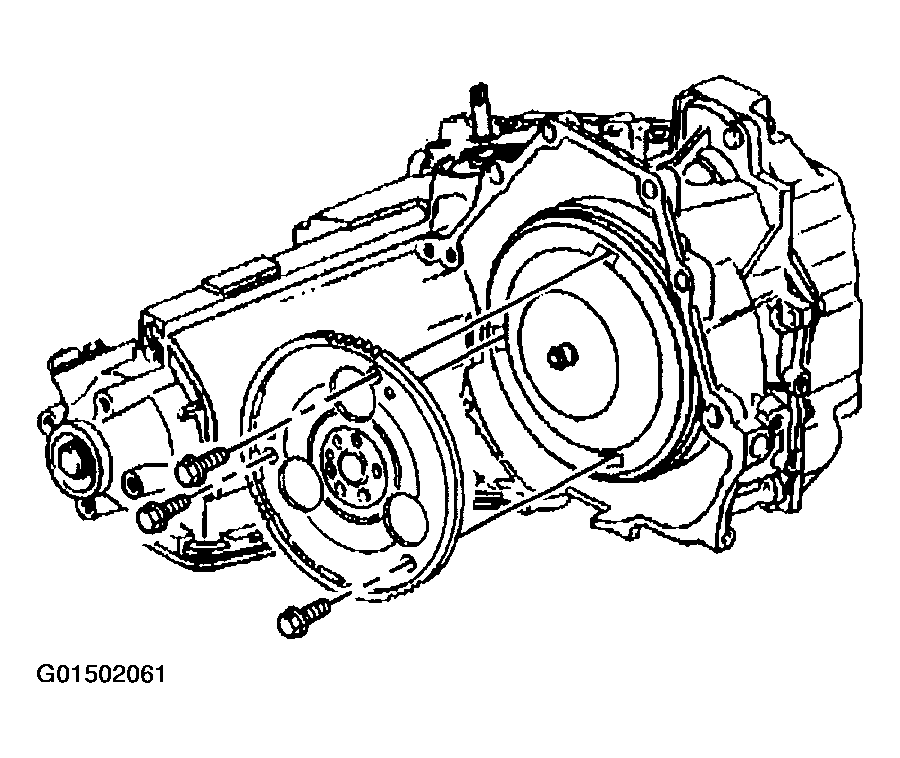

Fig 3: Removing Flywheel To Torque Converter Bolts
Courtesy of GENERAL MOTORS CORP.
