Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the oil pan. Refer to OIL PAN REPLACEMENT  .
  3. Remove the filter. Refer to OIL FILTER AND SEAL REPLACEMENT  .

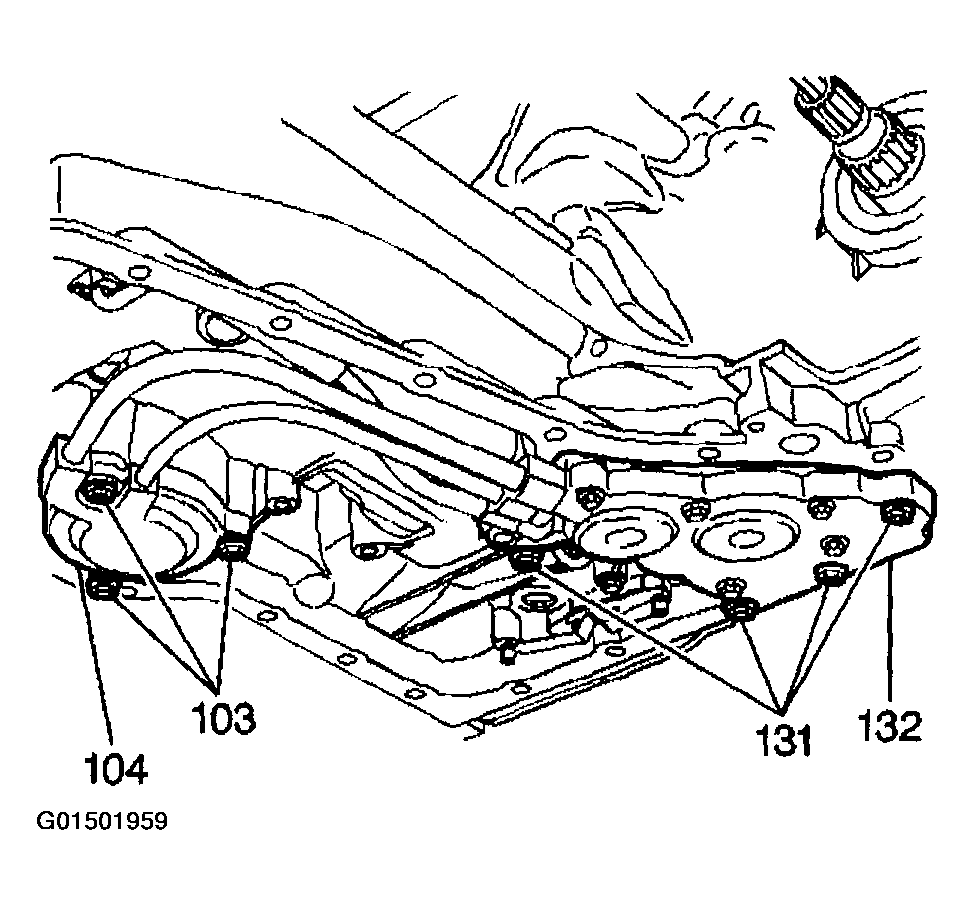

  4. Remove the accumulator cover bolts (131).
  5. Remove the manual 2-1 band servo cover bolts (103).
    Fig 1: Removing Accumulator And 2-1 Manual Servo (1 Of 4)
    G01501959Courtesy of GENERAL MOTORS CORP.

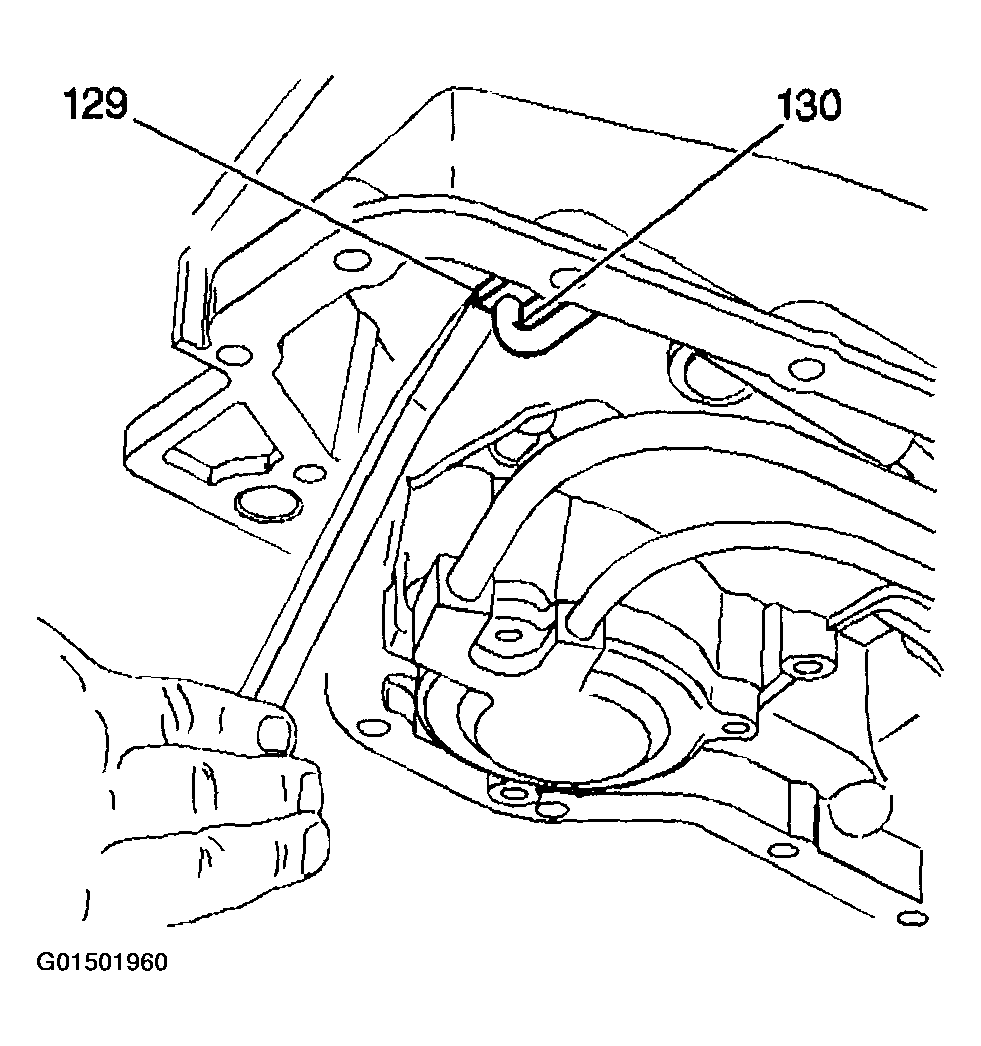

  6. Use a large flat-bladed tool in order to gently pry the lube oil pipe retainer (129) from the case.
  7. Remove the lube oil pipe (130) from the front differential carrier internal gear lube hole.
    Fig 2: Removing Accumulator And 2-1 Manual Servo (2 Of 4)
    G01501960Courtesy of GENERAL MOTORS CORP.

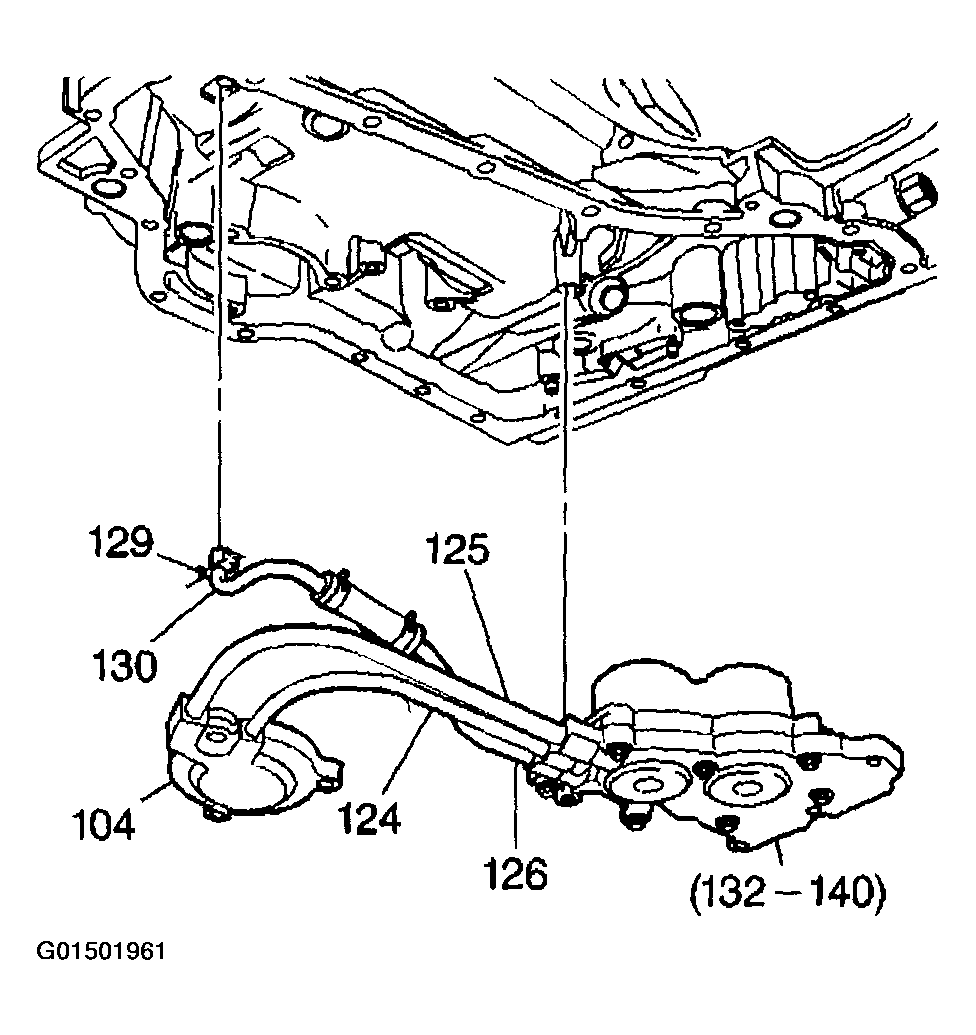

  8. Remove the accumulator (132).
  9. Remove the manual 2-1 band servo cover (104).
    Fig 3: Removing Accumulator And 2-1 Manual Servo (3 Of 4)
    G01501961Courtesy of GENERAL MOTORS CORP.

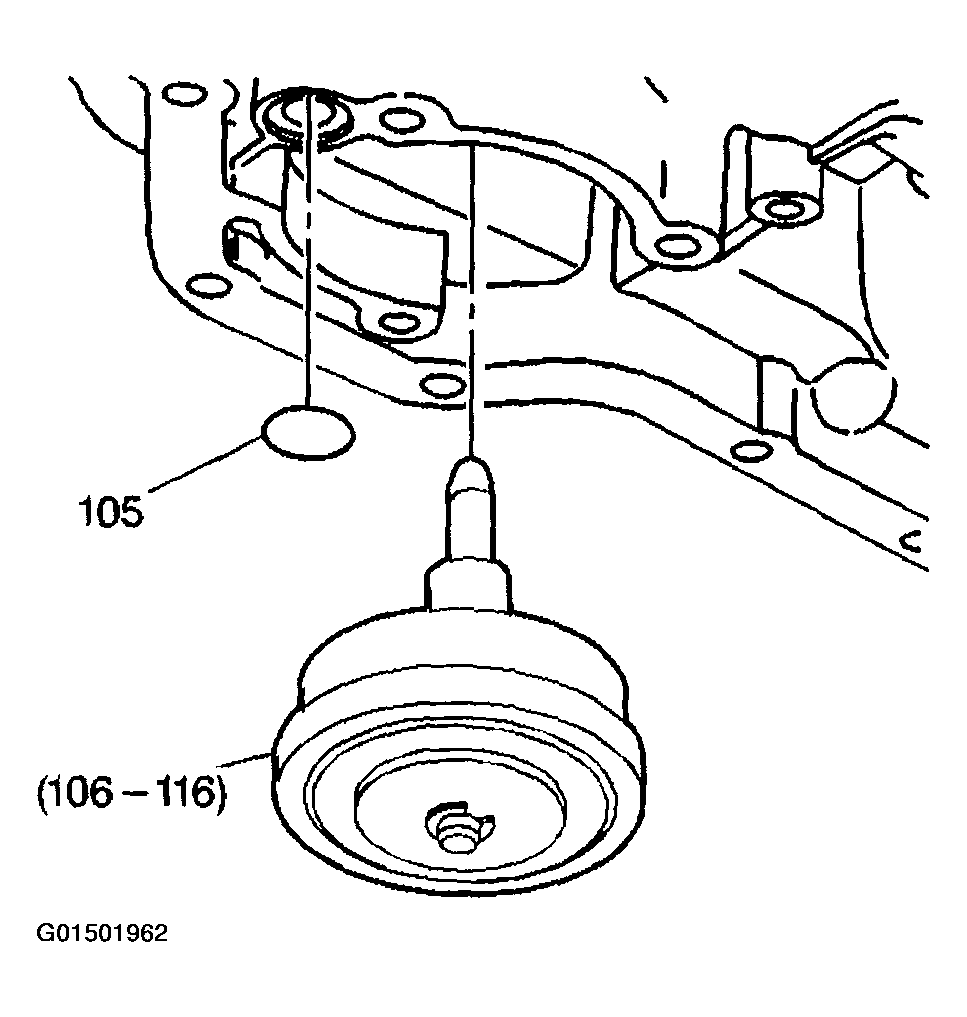

  10. Remove the manual 2-1 band servo (106-116).
  11. Remove the manual 2-1 band servo cover gasket (105).
  12. Disassemble, inspect and service the accumulator and manual 2-1 band servo.
    Fig 4: Removing Accumulator And 2-1 Manual Servo (4 Of 4)
    G01501962Courtesy of GENERAL MOTORS CORP.
