Test Description

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table

  1. 3. A LOW signal indicates a short to ground in the vehicle harness or the PCM.
  2. 5. This step tests the internal transmission harness without the IMS connected.

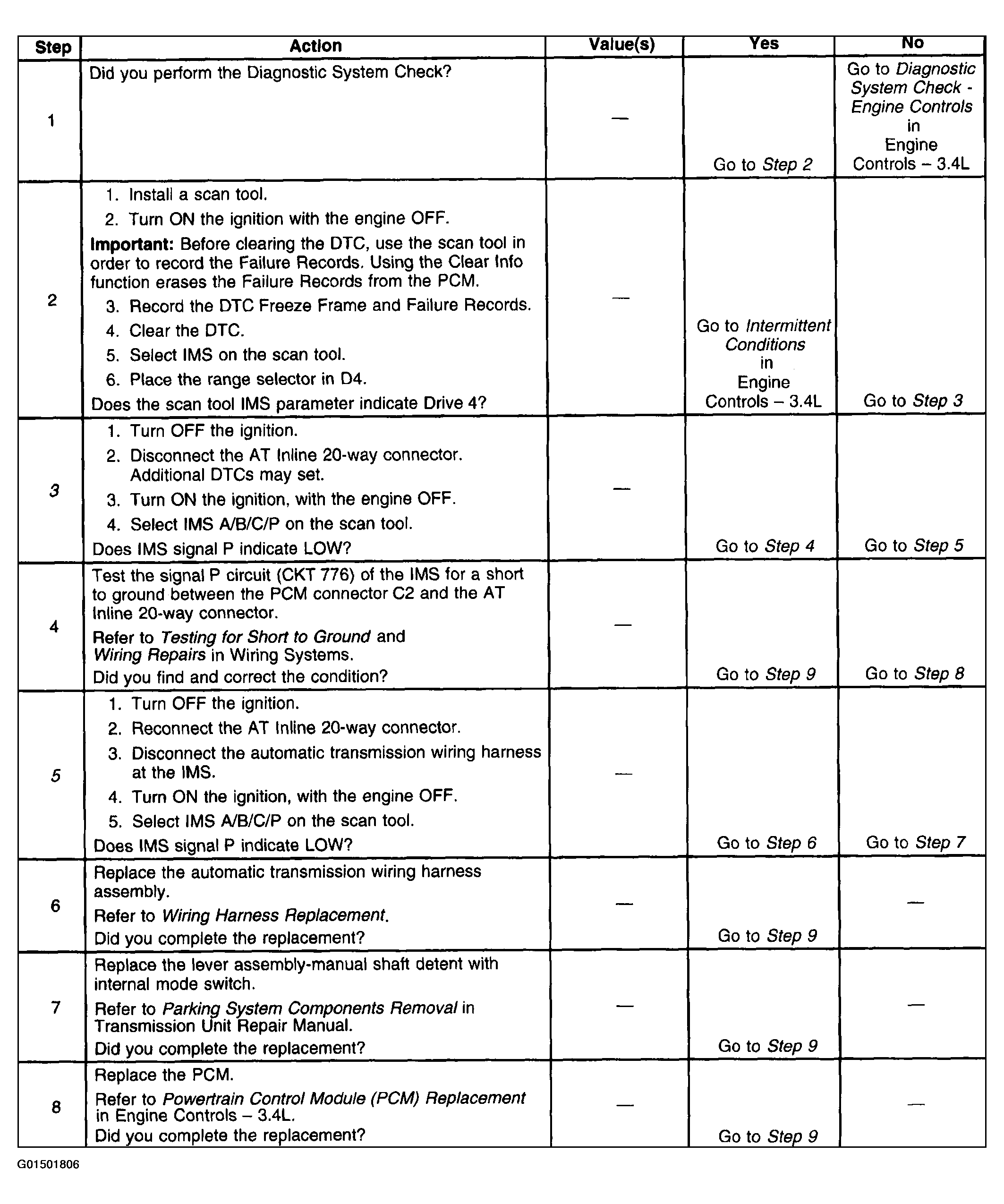

Fig 1: DTC P1823 Diagnosis (Steps 1-8)
G01501806Courtesy of GENERAL MOTORS CORP.

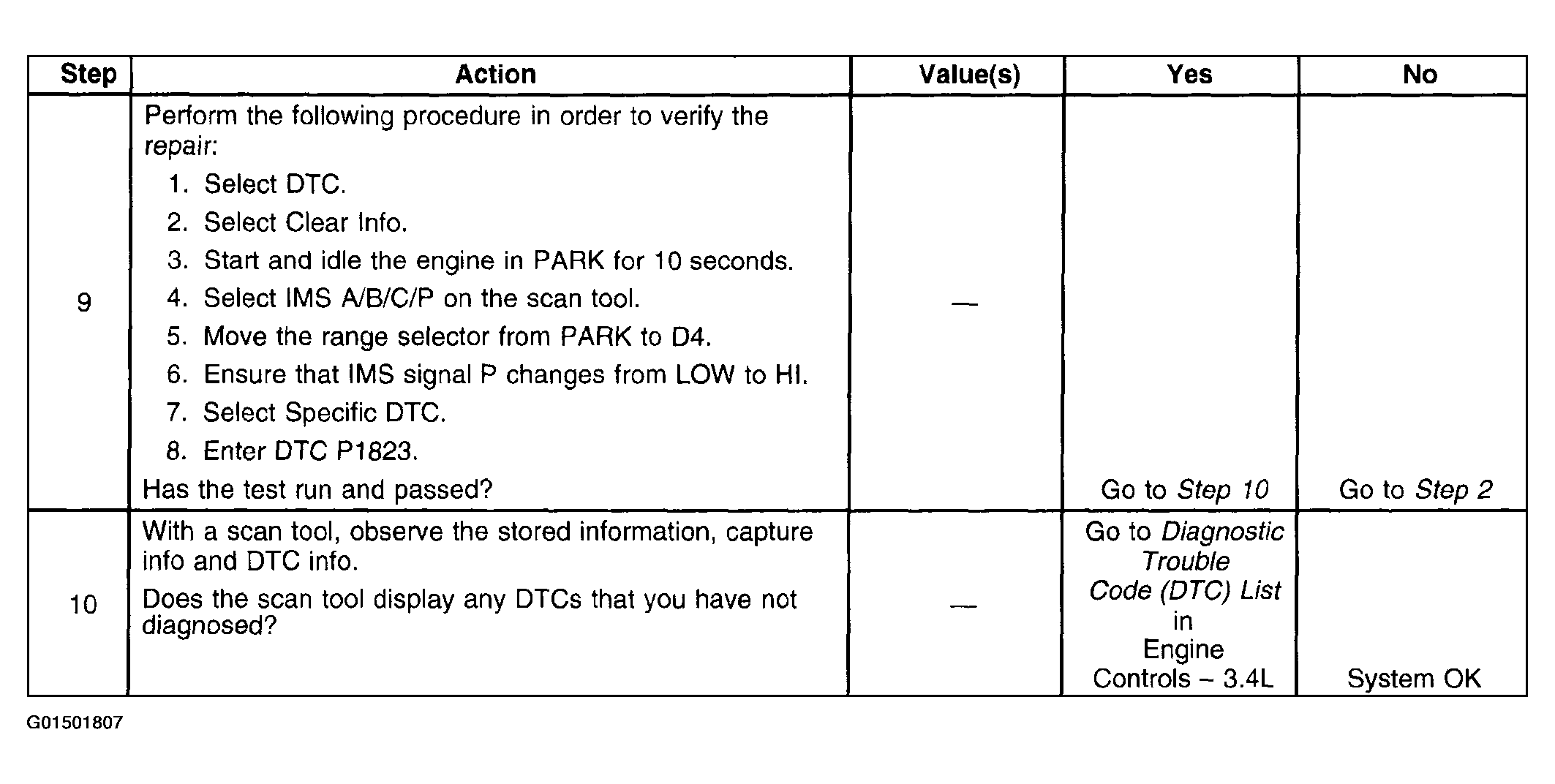

Fig 2: DTC P1823 Diagnosis (Steps 9-10)
G01501807Courtesy of GENERAL MOTORS CORP.
