Test Description

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refers to the step numbers on the diagnostic table

  1. 2. A value below 0.2 volts indicates the fault is present. A value above 0.2 volts indicates the fault is intermittent.
  2. 3. A value greater than 4.9 volts indicates the fault is in the transmission side.
  3. 5. For resistance at other temperatures, refer to Transmission Fluid Temperature (TFT) Sensor Specifications.

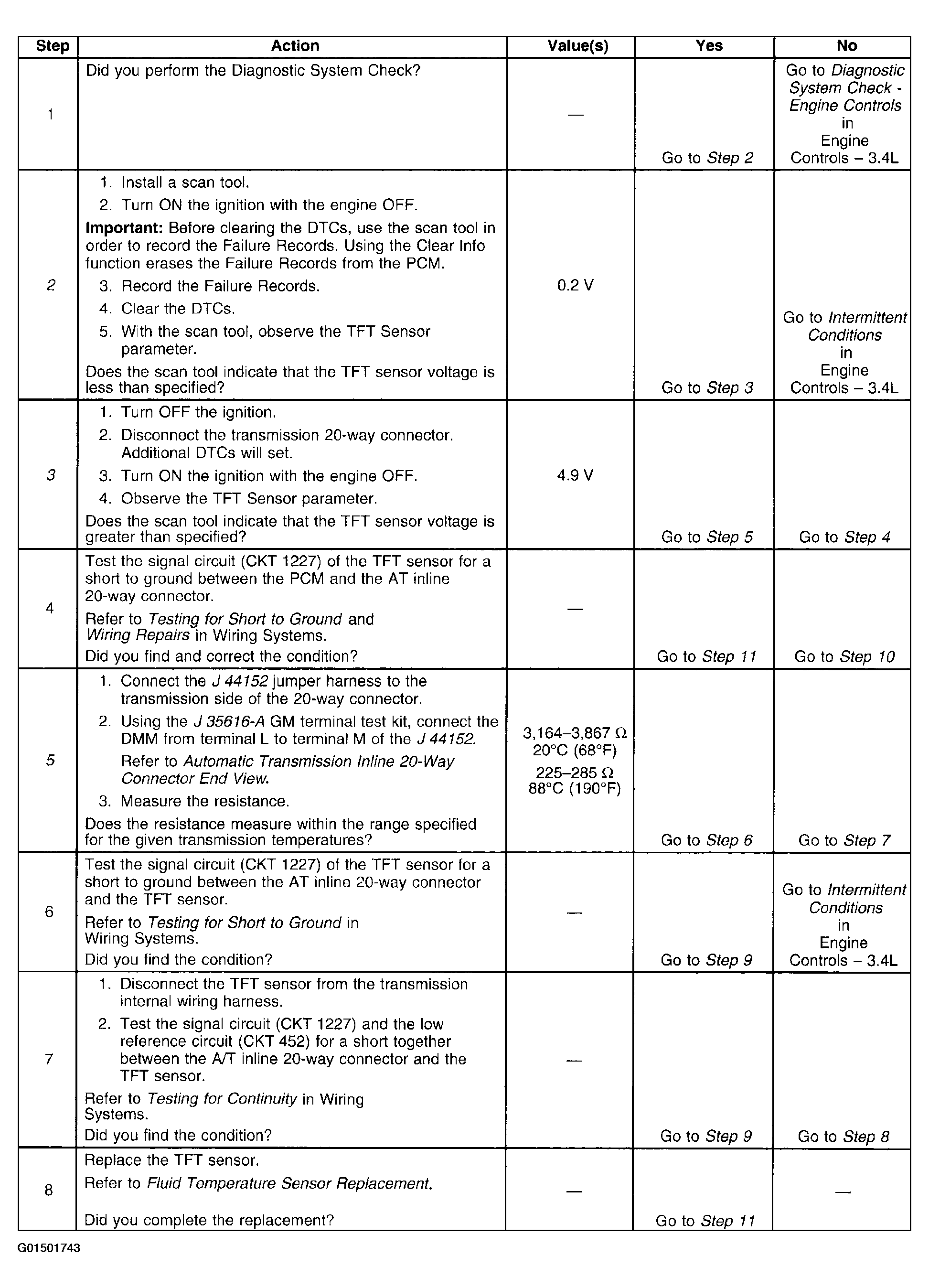

Fig 1: DTC P0712 Diagnosis (Steps 1-8)
G01501743Courtesy of GENERAL MOTORS CORP.

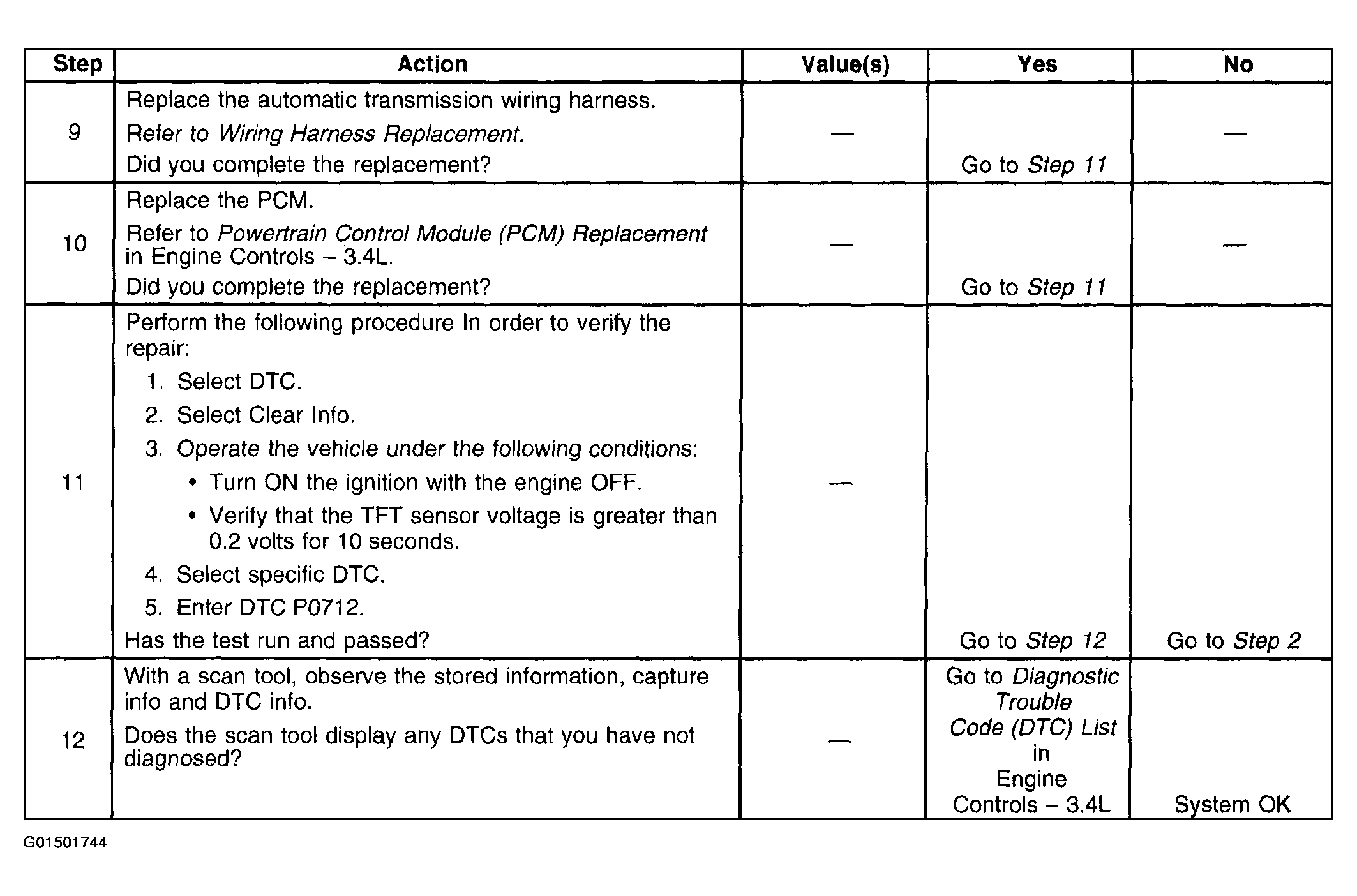

Fig 2: DTC P0712 Diagnosis (Steps 9-12)
G01501744Courtesy of GENERAL MOTORS CORP.
