Code Recording Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

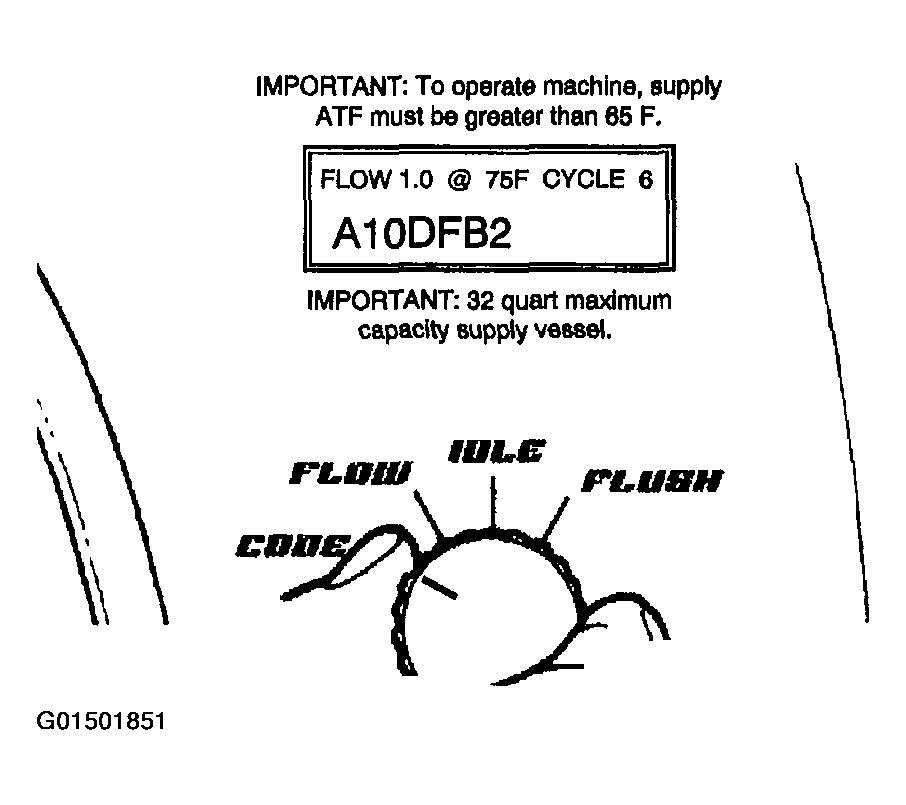

Fig 1: Identifying Code Recording Procedure
G01501851Courtesy of GENERAL MOTORS CORP.
  1. Turn the main function switch to the CODE position.

    Important:

    • If power is interrupted prior to the recording of the seven-character code, the code will be lost and the flow rate test will need to be repeated.
    • The flow test must run for a minimum of 8-10 seconds and be above 0.5 gpm for a code to be generated.
  2. Record TESTED flow rate, temperature, cycle and seven-character flow code information on repair order.
