Automatic Transmission Oil Cooler: Clean-up

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Clean-Up (1 Of 2)
G01501852Courtesy of GENERAL MOTORS CORP.
  1. Turn the main function switch to the IDLE position and allow the supply vessel pressure to dissipate.
  2. Turn the main power switch to the OFF position.
  3. Disconnect the supply and waste hoses and the 12-volt power source from the vehicle.
    NOTE: A small amount of water may drain from the bottom of the unit when the air supply is disconnected. This is a normal operation of the built-in water separator.

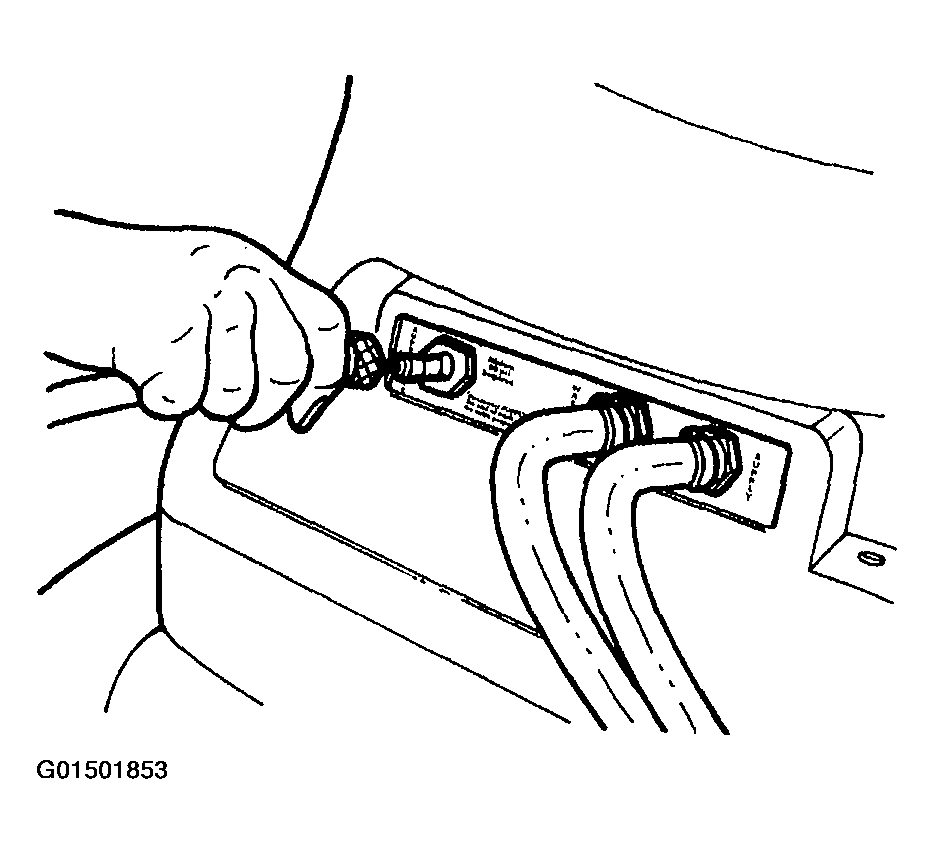

    Fig 2: Identifying Clean-Up (2 Of 2)
    G01501853Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the air supply hose from J 45096.
  5. Dispose of the waste ATF in accordance with all applicable federal, state, and local requirements.
