Automatic Transmission Fluid Leaks

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

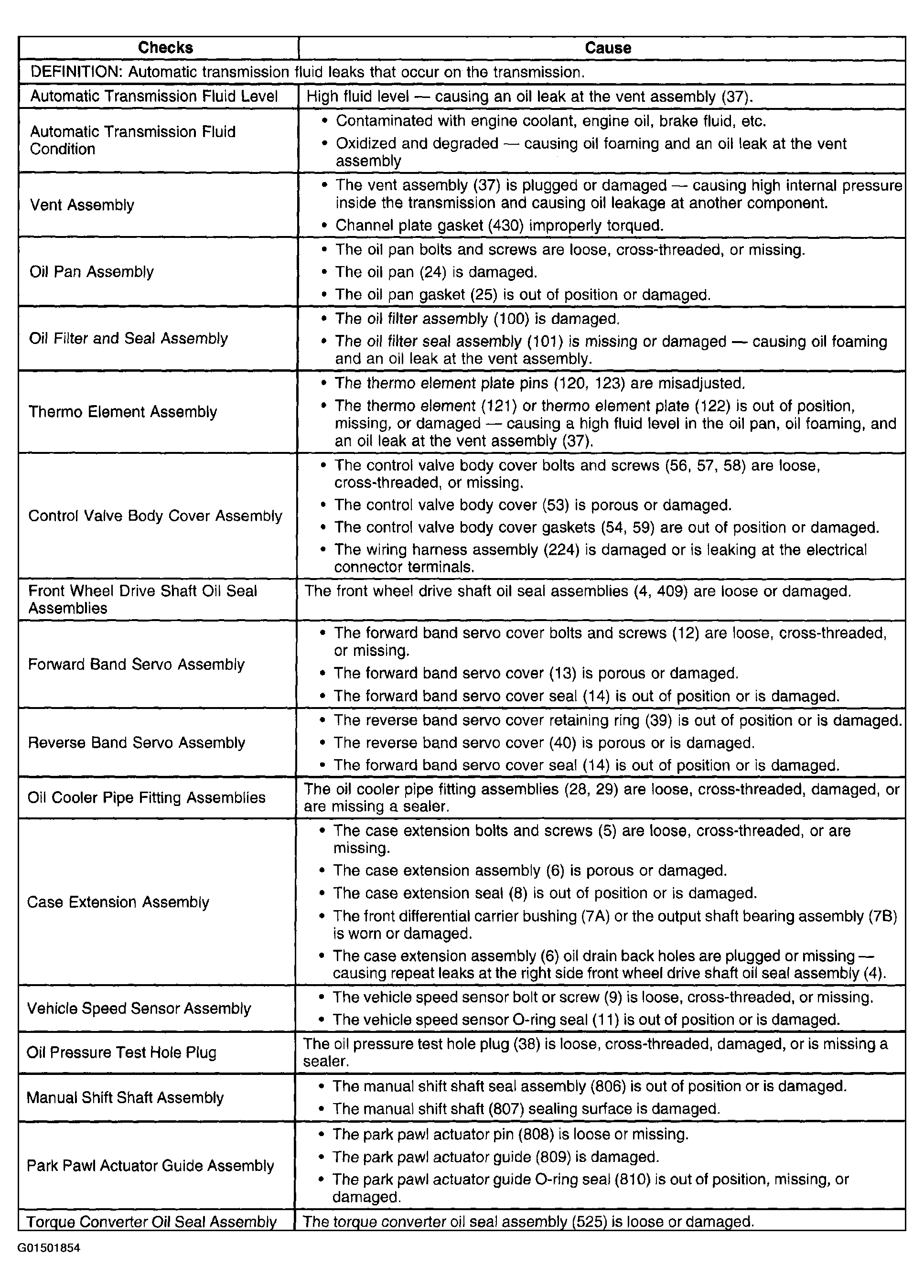

Fig 1: Automatic Transmission Fluid Leak Checks & Causes (1 Of 2)
G01501854Courtesy of GENERAL MOTORS CORP.

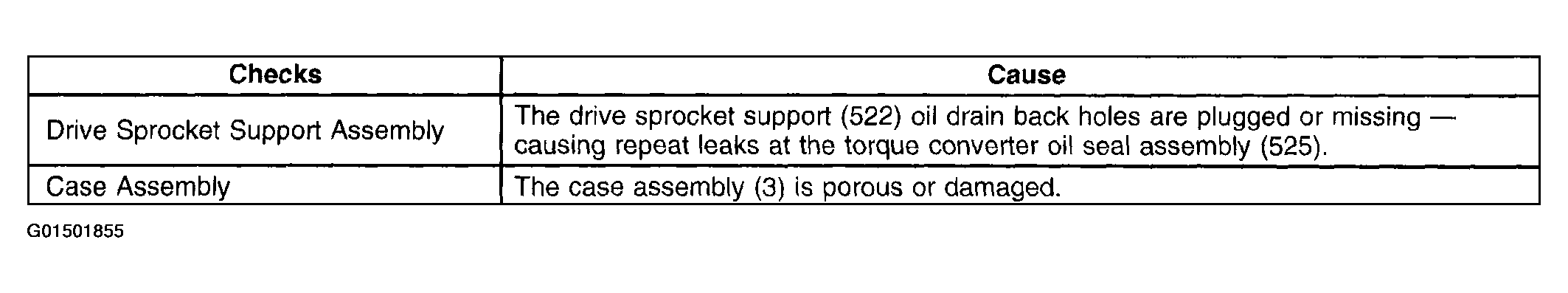

Fig 2: Automatic Transmission Fluid Leak Checks & Causes (2 Of 2)
G01501855Courtesy of GENERAL MOTORS CORP.
