Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine flywheel. Refer to ENGINE FLYWHEEL REPLACEMENT  .
  2. Remove the camshaft rear bearing hole plug.

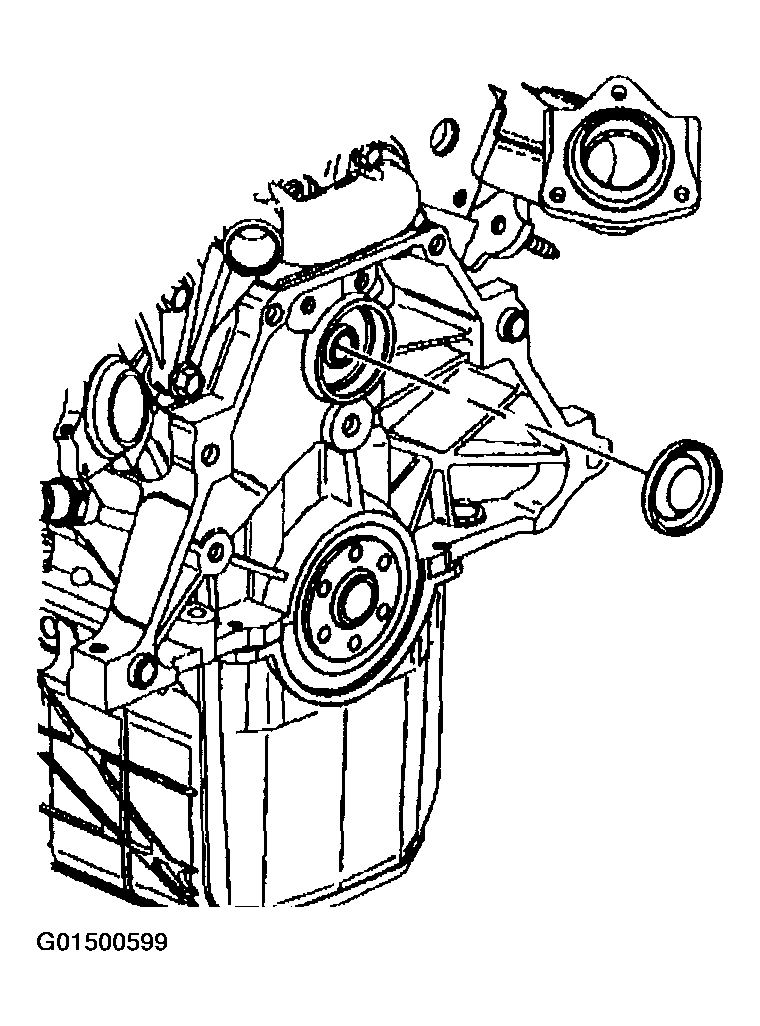

    Fig 1: Removing Camshaft Rear Bearing Hole Plug
    G01500599Courtesy of GENERAL MOTORS CORP.
