Drive Belt Tensioner Installation

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt tensioner.
  2. Install the drive belt tensioner bolt.

    Tighten

    Tighten the drive belt tensioner bolt to 50 N.m (37 lb ft).

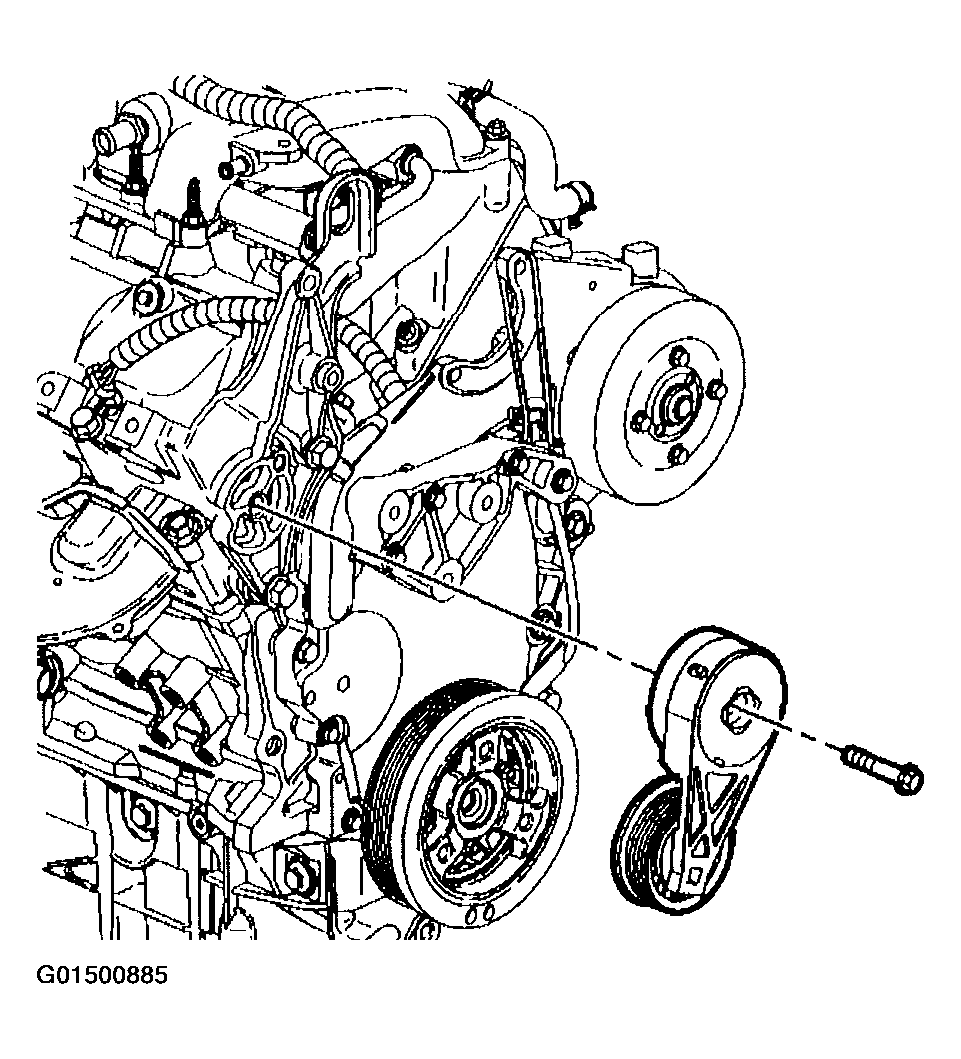

    Fig 1: Installing Drive Belt Tensioner
    G01500885Courtesy of GENERAL MOTORS CORP.
