Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (I/P) compartment. Refer to COMPARTMENT REPLACEMENT -- INSTRUMENT PANEL (I/P) .
  2. Disconnect and remove the right hand temperature door lever spring (2).
  3. Disconnect and remove the right hand temperature lever (1) from the right hand temperature door.

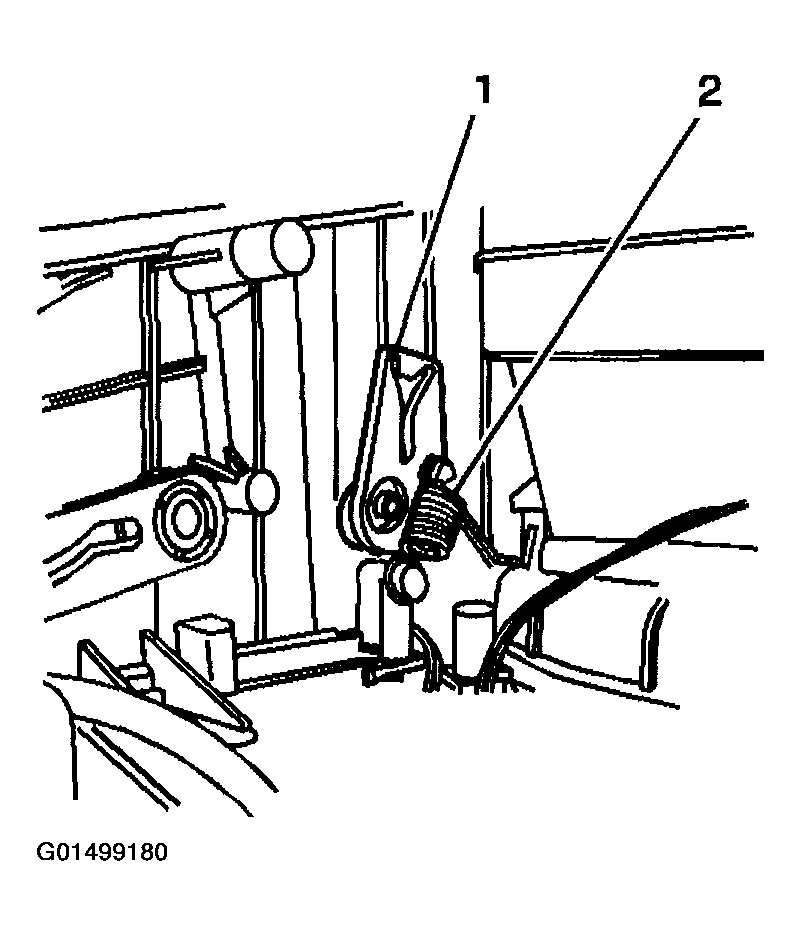

    Fig 1: Replacing Air Temperature Actuator Right
    G01499180Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the right hand temperature actuator electrical connector.

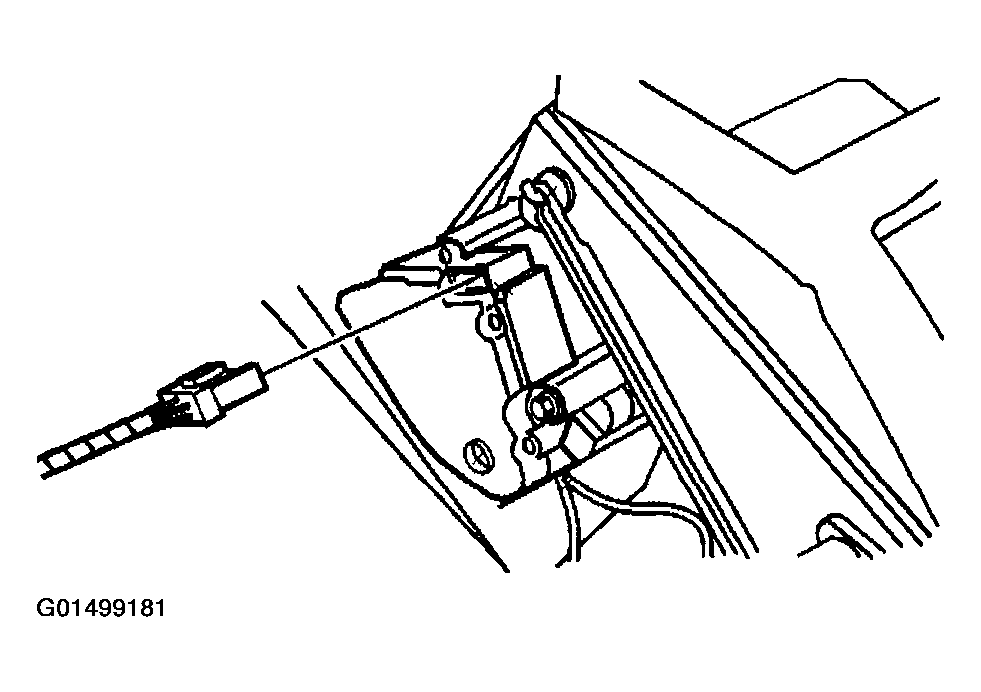

    Fig 2: Disconnecting Right Hand Temperature Actuator Electrical Connector
    G01499181Courtesy of GENERAL MOTORS CORP.
  5. Remove the right hand temperature actuator mounting screws.
  6. Remove the right hand temperature actuator.

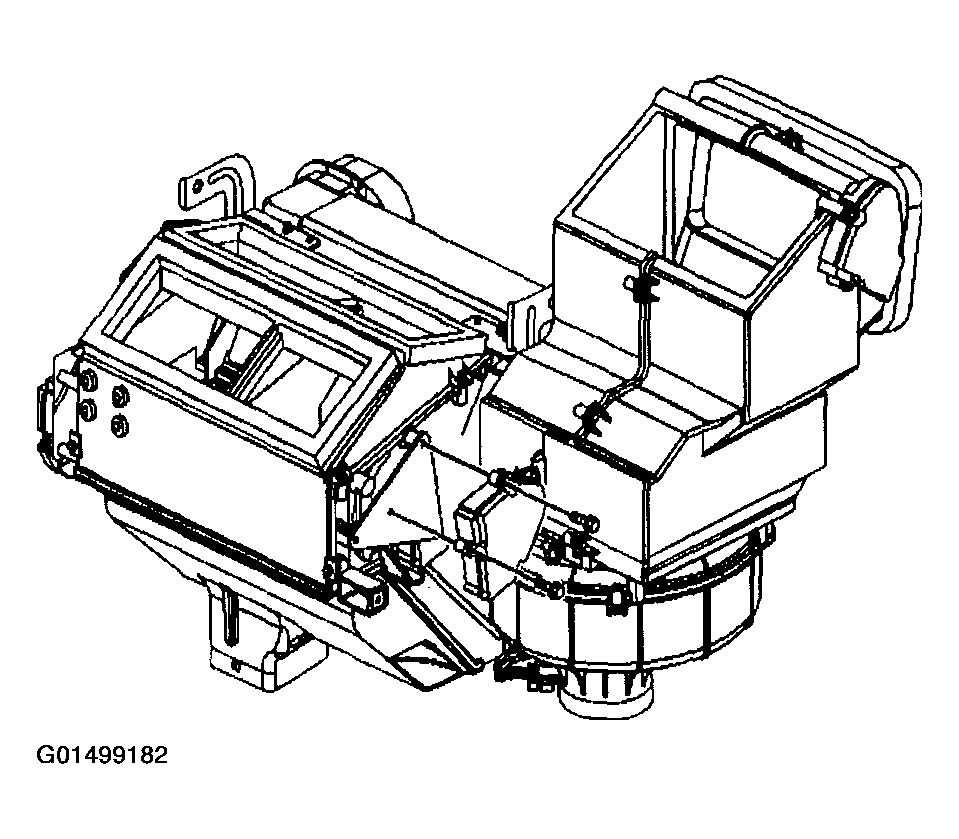

    Fig 3: Removing Right Hand Temperature Actuator
    G01499182Courtesy of GENERAL MOTORS CORP.
